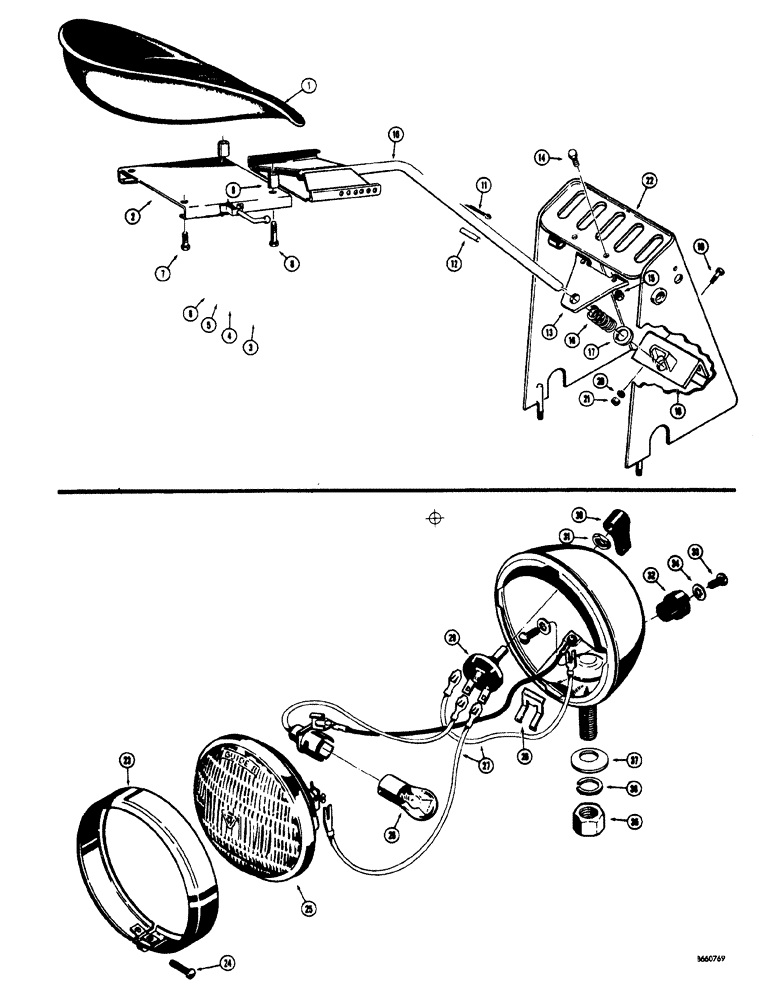

Запчасти Case 33S (034) - SWING DOWN BACKHOE SEAT, FLOOD AND TAIL LAMP

D31309

SEAT

ASEMBLY backhoe, swing down

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT padded

1шт.

2

D31306

SPACER

SLIDE seat, upper

1шт.

3

D40765

LEVER

ADJUSTING seat

1шт.

4

D40766

SPRING

LEVER

1шт.

5

195-21

WASHER,5/16"

1шт.

6

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

1шт.

7

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

8

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HCCS 5/16" - 18 NC x 1-3/4"

2шт.

9

D31306

SPACER

SLIDE

2шт.

10

D32380

SEAT

ROD support

1шт.

11

132-95

COTTER PIN,3/16" x 1 1/2"

1шт.

12

138-207

LOCK PIN,1/2" x 2 1/4", Slotted

1шт.

13

D38322

PLATE

MOUNTING seat, if used

1шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

15

131-354

LOCK NUT,1/2"-13, GA

HEX lock, 1/2" - 13 NC

2шт.

16

D25773

SPRING

ROD

1шт.

17

B18275

WASHER

SPRING retaining

1шт.

18

D38323

SPARE PART MOUNTING seat, if used

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC

2шт.

22

REF

INSTRUCTION

CONSOLE backhoe control, see Figure 028

1шт.

A20965

LAMP BASE

ASSEMBLY flood and tail

1шт.

23

B50255

MOLDING

LAMP

1шт.

24

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW molding

1шт.

25

A40855

LAMP BASE

BEAM sealed

1шт.

26

B50223

BULB

LAMP

1шт.

27

B50273

SPARE PART LAMP

2шт.

28

10927

SPRING

SPARE PART TERMINAL

1шт.

29

B50275

SWITCH

LAMP

1шт.

30

B50310

SWITCH

KNOB

1шт.

31

B50224

SPECIAL NUT

RETAINING switch

1шт.

32

B50293

TERMINAL CONNECTOR

TERMINAL lamp

1шт.

33

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

MACHINE round head, #8 - 32 NC x 1/4"

2шт.

34

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

2шт.

35

129-105

NUT,Hex, 1/2" - 13, Gr 5

Molding

1шт.

36

192-23

LOCK WASHER,1/2"

1шт.

37

10923

WASHER

MOUNTING

1шт.
