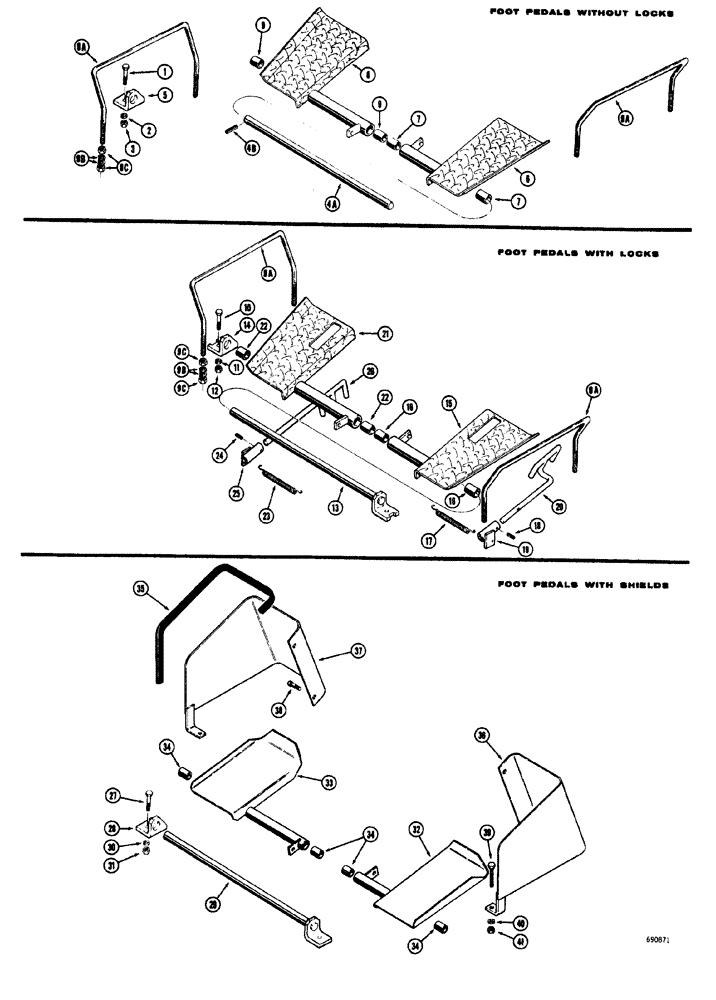

Запчасти Case 33S (032) - FOOT PEDALS

1

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Without locks

2шт.

2

92-6

LOCK WASHER,3/8"

without

2шт.

3

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC, without locks

2шт.

4

D37618

SPARE PART SHAFT swing pedals, 33 backhoe, without locks

1шт.

4a

D32056

SPARE PART PEDALS swing, 33S backhoe, without locks

1шт.

4b

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

D32056 shaft only, without locks

1шт.

5

D37616

SPARE PART BRACKET shaft, without locks

1шт.

6

D30711

SPARE PART SWING, R.H., without locks

1шт.

7

D30706

BUSHING

PEDAL without locks

2шт.

8

D30710

SPARE PART SWING, L.H., without locks

1шт.

9

D30706

BUSHING

PEDAL without locks

2шт.

9a

D38562

SPARE PART PEDALS swing, without locks

2шт.

9b

25-108

NUT,1/2"-13, G5

Hex, without locks

8шт.

9c

92-8

LOCK WASHER,1/2"

without

8шт.

9a

D38562

SPARE PART PEDALS swing, with locks

2шт.

9b

25-108

NUT,1/2"-13, G5

Hex, with locks

8шт.

9c

92-8

LOCK WASHER,1/2"

with

8шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

With locks

3шт.

11

92-6

LOCK WASHER,3/8"

with

3шт.

12

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC, with locks

3шт.

13

D40859

SHAFT

PEDALS swing, with locks

1шт.

14

D42062

BRACKET shaft, with locks

1шт.

15

D40866

PEDAL

PEDAL swing, R.H., with locks

1шт.

16

D30706

BUSHING

PEDAL with locks

2шт.

17

A37005

SPRING

PEDAL with locks

1шт.

18

138-96

LOCK PIN,3/16" x 1", Slotted

w/ Locks

1шт.

19

D40856

SPARE PART PEDAL stop, R.H., with

1шт.

20

D40864

SPARE PART LOCK swing pedal, R.H., with

1шт.

21

D40867

PEDAL

SWING, L.H., with locks

1шт.

22

D30706

BUSHING

PEDAL with locks

2шт.

23

A37005

SPRING

PEDAL with locks

1шт.

24

138-96

LOCK PIN,3/16" x 1", Slotted

w/ Locks

1шт.

25

D40857

SPARE PART PEDAL stop, L.H., with

1шт.

26

D40865

SPARE PART LOCK swing pedal, L.H., with

1шт.

27

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

w/ Shields

2шт.

28

D40858

SPARE PART SHAFT with shields

1шт.

29

D40859

SHAFT

PEDALS swing, with shields

1шт.

30

92-8

LOCK WASHER,1/2"

with shields

2шт.

31

25-108

NUT,1/2"-13, G5

Hex, with shields

2шт.

32

D47224

PEDAL

SWING, R.H., with shields

1шт.

33

D47225

SPARE PART SWING, L.H., with shields

1шт.

34

D30706

BUSHING

PEDAL 2 to each, with shields

2шт.

35

D47936

LINING

TRIM quickedge, 24" long, with shields

2шт.

36

D47222

SPARE PART GUARD swing pedal, R.H., with shields

1шт.

37

D47223

SPARE PART GUARD swing pedal, L.H., with shields

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

With shields

2шт.

39

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

w/ Shields

2шт.

40

92-6

LOCK WASHER,3/8"

with shields

4шт.

41

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC, with shields

4шт.
