Запчасти Case 33S (228) - D37146 BACKHOE OUTLET SECTION, D37349 BACKHOE INLET SECTION

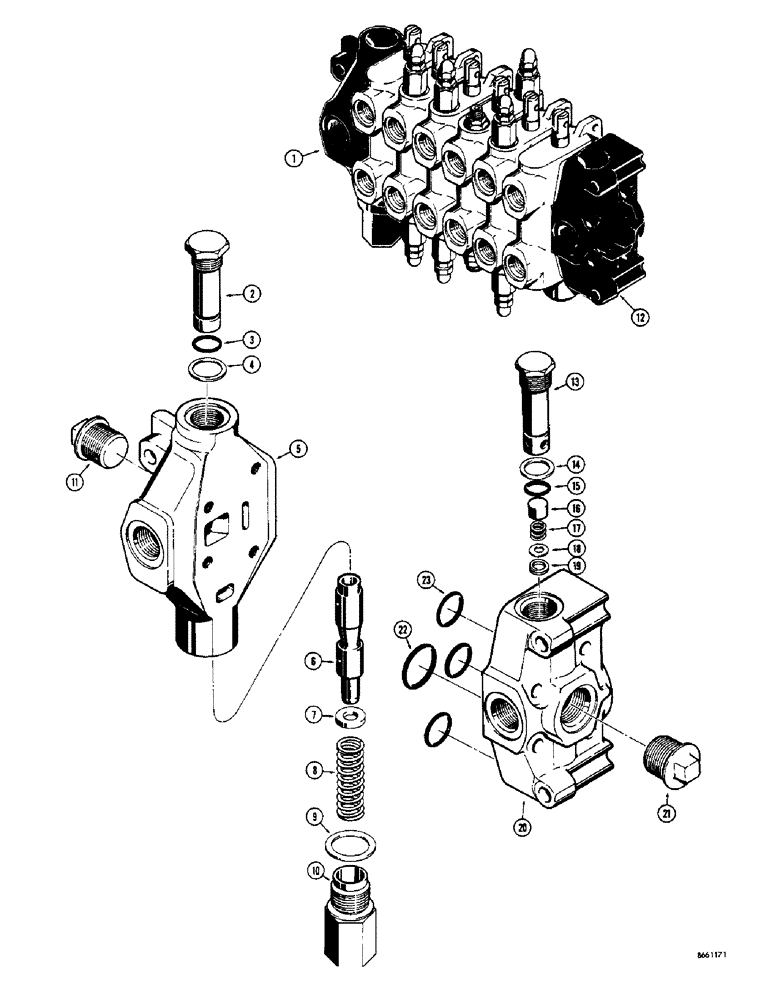

Схема запчастей Case 33S - (228) - D37146 BACKHOE OUTLET SECTION, D37349 BACKHOE INLET SECTION

Артикул

Название

Примечание

Количество

1

D37146

KNIFE SECTION

OUTLET SECTION - backhoe control valve, Includes: Ref. 2 - 11

1шт.

D36806

PLUG

ASSEMBLY - outlet section, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - outlet section

1шт.

3

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D30681

GASKET

- plug

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - outlet section

1шт.

6

D36599

SPOOL - regeneration

1шт.

7

D36807

SPACER

- spool

1шт.

8

D40815

VALVE SPRING

SPRING - spool

1шт.

9

D36808

GASKET

- cap

1шт.

10

D36805

CAP - outlet section

1шт.

11

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

1шт.

12

D37349

KNIFE SECTION

INLET SECTION - backhoe control valve, Includes: Ref. 13 - 23

1шт.

D31416

LOCK VALVE

VALVE ASSEMBLY - check, Includes: Ref. 13 - 19

1шт.

13

D31417

CARTRIDGE

- check valve

1шт.

14

D30681

GASKET

- cartridge

1шт.

15

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

16

D31418

VALVE POPPET

POPPET - check valve

1шт.

17

D31419

SPRING

- check valve

1шт.

18

D31420

RING

RETAINER - spring

1шт.

19

D26858

RING, SNAP

RING - spirolox

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

21

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, square head (1/2" NPT)

1шт.

22

L35522

O-RING

SEAL - "O"ring, 1-9/16" I.D. x 1-3/4" O.D.

1шт.

23

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

SEAL - "O"ring, 1-5/16" I.D. x 1-1/2" O.D.

3шт.

Выбрано товаров: 25
