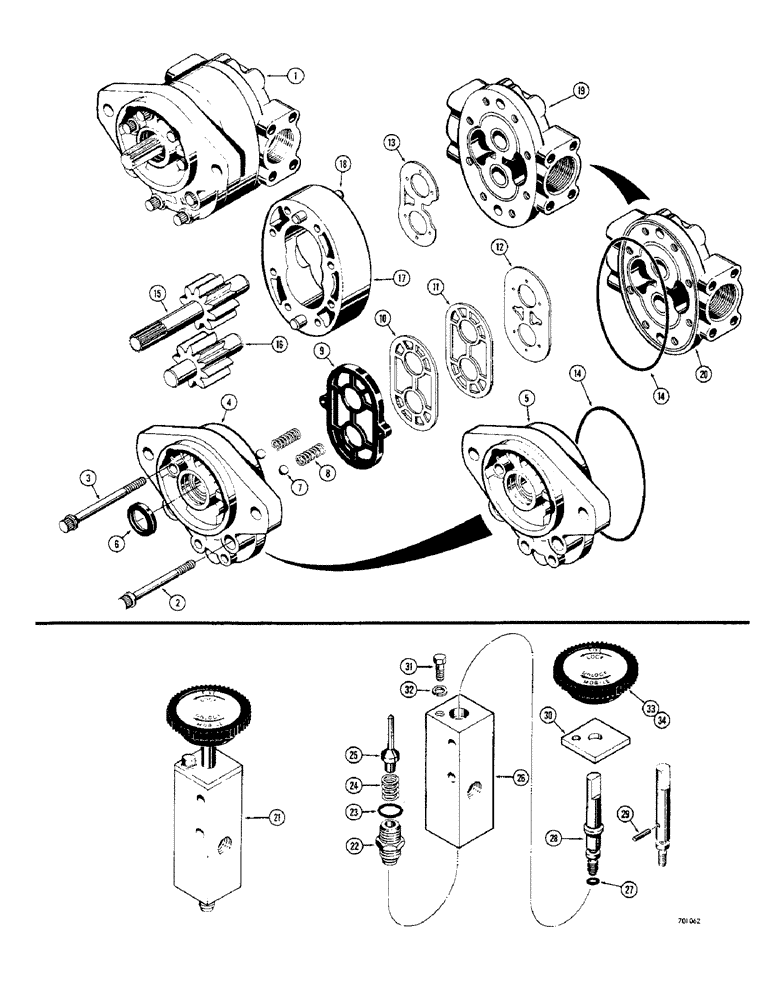

Запчасти Case 33S (204) - D41390 HYDRAULIC PUMP, STANDARD BACKHOE MODELS BEFORE SN.4176351

1

D41390

PUMP

hydraulic, 20 G.P.M. at 1900 R.P.M. at 2200 P.S.I. on models with standard clutch - 22 G.P.M. at 2100 R.P.M. at 2200 P.S.I. on models with torque converter, Includes: Ref. 2 - 20

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Pump, Hydraulic

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Pump, Hydraulic

1шт.

1

87644746R

REMAN-HYD PUMP

33 BACKHOE FOR 580CK, BSN 4176351, 33 & 33S Loader BSN 4176351

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

ferry cap (3/8" - 16 NC x 3-1/4")

4шт.

3

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

ferry cap (3/8" - 16 NC x 3-1/2")

4шт.

4

D31395

PLATE ASSY.

COVER - driveshaft end (Without "O"ring groove)

1шт.

5

D48879

COVER

driveshaft end (With "O"ring groove)

1шт.

D41318

KIT

pump rebuild (When stock is exhausted, order (1) D59656 kit for service)

1шт.

D59656

GASKET KIT

pump rebuild, Includes: Ref. 6 - 14

1шт.

6

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

driveshaft

1шт.

7

D31404

BALL

- steel (13/32" dia.)

2шт.

8

D31403

SPRING

ball retaining

2шт.

9

D48888

SEAL

diaphragm

1шт.

10

H273920

GASKET

backup

1шт.

11

H260935

GASKET

protector

1шт.

12

D31400

DIAPHRAGM

pump

1шт.

13

D41322

PLATE

thrust

1шт.

14

H756221

O-RING,4.987" ID x 5.193" OD

SEAL - , cover seal for D48879 and D48883 cover (Part of D59656 kit only)

2шт.

D41421

GEAR-SET

drive and driven (When stock is exhausted, order (1) D49380 gear set for service)

1шт.

D49380

GEAR

SET - drive and driven (When stock is exhausted, order (1) D52929 gear set for service)

1шт.

D52929

GEAR

SET - drive and driven, Includes: Ref. 15 and 16

1шт.

Ref: D52929 Gear Set - Per ECS D3074-100 steel cut gears discarded from kit. They are not available from Cessna. Primes are D52930 & D52931.

1шт.

15

NSS

NOT SOLD SEPARAT

DRIVESHAFT AND GEAR - pump

1шт.

16

NSS

NOT SOLD SEPARAT

IDLER SHAFT AND GEAR - pump

1шт.

17

D49371

HOUSING

gear

1шт.

18

D49373

DOWEL

pump housing

2шт.

19

D31407

PLATE ASSY.

COVER - port end (Without "O"ring groove)

1шт.

20

D48883

COVER

port end (With "O"ring groove)

1шт.

21

D36662

PISTON

VALVE - cylinder locking (33S backhoe only), Includes: Ref. 22 - 34

1шт.

22

218-5079

HYD CONNECTOR,1/2" - 20 Male JIC x 9/16" - 18 Male ORB

male, straight, D36662 backhoe locking valve, Includes: Ref. 23 - 34

1шт.

23

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, D36662 backhoe locking valve

1шт.

24

D36669

SPRING

poppet, D36662 backhoe locking valve

1шт.

25

D36668

X

POPPET - D36662 backhoe locking valve

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - valve, D36662 backhoe locking

1шт.

27

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

SEAL - shaft, D36662 backhoe locking valve

1шт.

28

D41746

SHAFT

control, D36662 backhoe locking valve

1шт.

29

138-38

LOCK PIN,3/32" x 9/16", Slotted

PIN, , If used, D36662 backhoe locking valve 3/32" x 9/16", Slotted

1шт.

30

D36665

RETAINER

PLATE - shaft retaining, D36662 backhoe locking valve

1шт.

31

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

D36662 backhoe locking valve Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , D36662 Backhoe locking valve 1/4"

1шт.

33

D36667

KNOB

D36662 backhoe locking valve

1шт.

34

321-907

DECAL

locking, D36662 backhoe locking valve

1шт.
