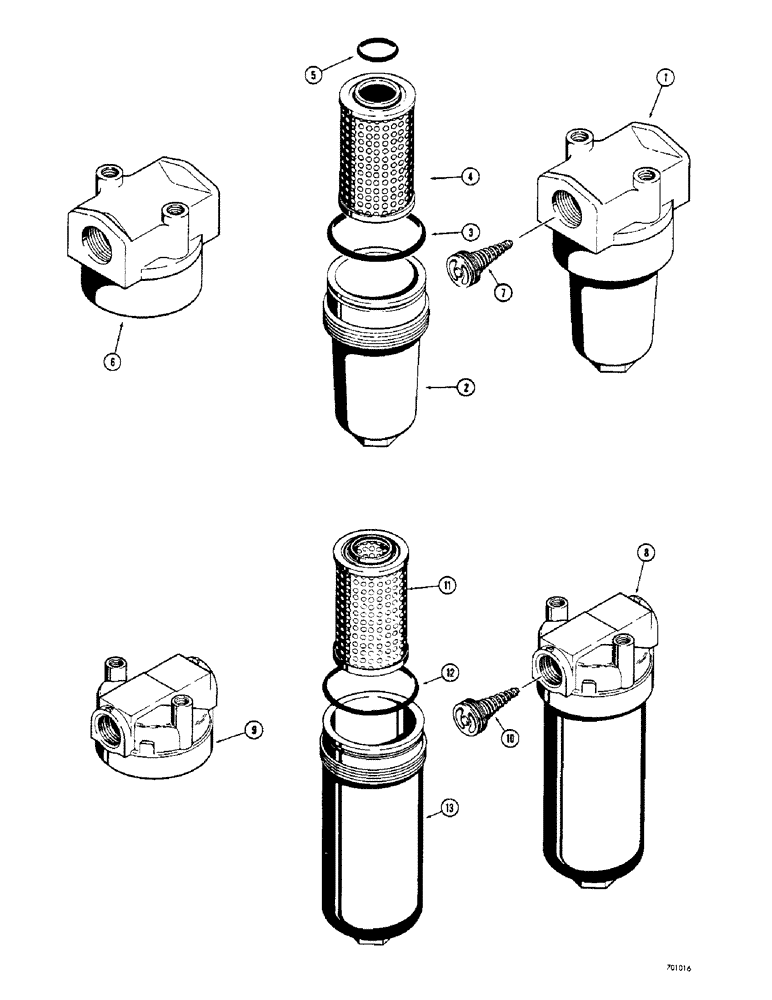

Запчасти Case 33S (160) - HYDRAULIC OIL FILTERS, D32254 HYDRAULIC OIL FILTER, (USED BEFORE SN 4161201)

1

D32254

FILTER ASSY

- hydraulic oil (When stock is exhausted, order D43567 filter for service), Includes: Ref. 2 - 7

1шт.

2

R20645

HOUSING

filter

1шт.

D32212

FILTER, ELEMENT

KIT, Includes: Ref. 3 - 5

1шт.

3

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL -

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter, Includes: Ref. 5

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL

1шт.

D31874

HEAD

ASSEMBLY - filter, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

7

L13790

LOCK VALVE

oil, by-pass (25 PSI)

1шт.

8

D43567

FILTER ASSY

D43567 hydraulic oil filter (used on loader s/n 4161201 & aft), Includes: Ref. 9 and 10

1шт.

D42440

FILTER HEAD

HEAD ASSEMBLY - D43567 hydraulic oil filter (used on loader s/n 4161201 & aft), Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - D43567 hydraulic oil filter (used on loader s/n 4161201 & aft)

1шт.

10

D49377

LOCK VALVE

oil, by-pass (25 PSI) , D43567 hydraulic oil filter (used on loader s/n 4161201 & aft)

1шт.

D43800

FILTER, ELEMENT

KIT - D43567 hydraulic oil filter (used on loader s/n 4161201 & aft), Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - D43567 hydraulic oil filter (used on loader s/n 4161201 & aft)

1шт.

12

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - D43567 hydraulic oil filter (used on loader s/n 4161201 & aft)

1шт.

13

D42439

HOUSING

filter , D43567 hydraulic oil filter (used on loader s/n 4161201 & aft)

1шт.
