Запчасти Case 33S (158) - D52674 HYDRAULIC COUPLING (90 DEGREE FEMALE)

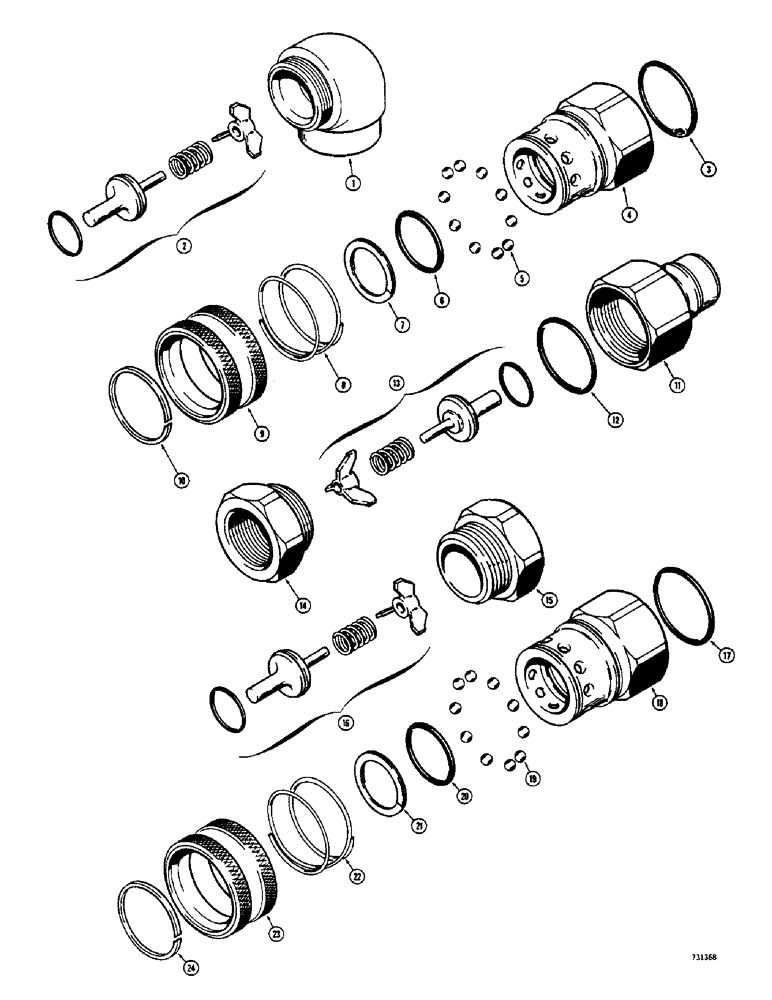

Схема запчастей Case 33S - (158) - D52674 HYDRAULIC COUPLING (90 DEGREE FEMALE)

Артикул

Название

Примечание

Количество

D52674

COUPLING

- hydraulic, 90 degree female (When replacing complete coupling, supply D52800 coupling and (1) 217-1020 90 degrees street elbow), Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - coupling (90 degree end)

1шт.

2

D53915

VALVE

ASSEMBLY - coupling

1шт.

3

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- coupling body

1шт.

4

D53916

BODY

- coupling (Straight end)

1шт.

5

211-6

BALL,7/32" Dia

steel 7/32" Dia

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- coupling body (Internal)

1шт.

7

D54276

RING

- backup

1шт.

8

D31979

VALVE SPRING

SPRING - sleeve

1шт.

9

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining

1шт.

10

D31981

RING

- retaining

1шт.

D52694

QUICK MALE COUPLING

D52694 hyd coupling (straight male), Includes: Ref. 11 - 14

1шт.

11

D31971

BODY

D52694 hyd coupling (straight male)

1шт.

12

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

body, D52694 hyd coupling (straight male)

1шт.

13

D53915

VALVE

ASSEMBLY - D52694 hyd coupling (straight male)

1шт.

14

D31975

FITTING

end, D52694 hyd coupling (straight male)

1шт.

D52800

COUPLING, QUICK, FEM

D52800 hyd coupling (straight fermale), Includes: Ref. 15 - 24

1шт.

15

D31975

FITTING

end, D52800 hyd coupling (straight fermale)

1шт.

16

D53915

VALVE

ASSEMBLY - D52800 hyd coupling (straight fermale)

1шт.

17

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

body, D52800 hyd coupling (straight fermale)

1шт.

18

D53916

BODY

(end), D52800 hyd coupling (straight fermale)

1шт.

19

211-6

BALL,7/32" Dia

steel, D52800 hyd coupling (straight fermale) 7/32" Dia

10шт.

20

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

body (Internal), D52800 hyd coupling (straight fermale)

1шт.

21

D54276

RING

backup, D52800 hyd coupling (straight fermale)

1шт.

22

D31979

VALVE SPRING

sleeve, D52800 hyd coupling (straight fermale)

1шт.

23

D31980

SLEEVE CYLINDER

ball retaining, D52800 hyd coupling (straight fermale)

1шт.

24

D31981

RING

retaining, D52800 hyd coupling (straight fermale)

1шт.

Выбрано товаров: 27
