Запчасти Case 33S (156) - HYDRAULIC COUPLINGS, D31617 HYDRAULIC COUPLING

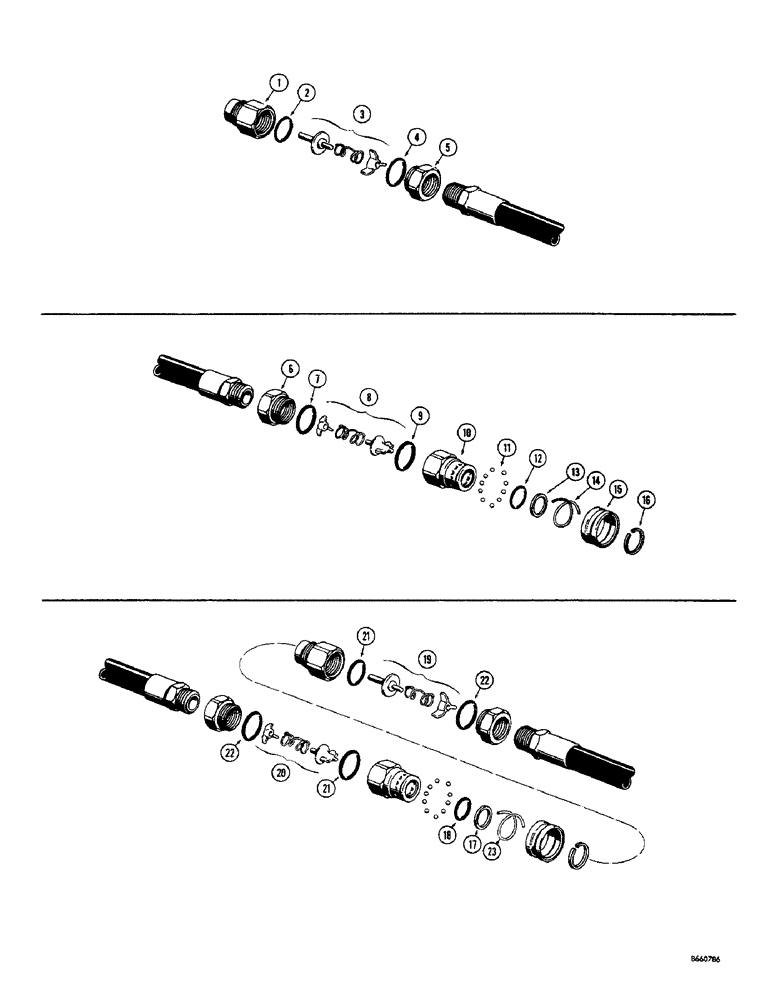

Схема запчастей Case 33S - (156) - HYDRAULIC COUPLINGS, D31617 HYDRAULIC COUPLING

Артикул

Название

Примечание

Количество

D31617

COUPLING, BREAK AWAY

male (Snap-Tite) When stock is exhausted, supply D52694 coupling listed on page 158), Includes: Ref. 1 - 5

1шт.

1

D31971

BODY

male coupling

1шт.

2

D31984

SEAL

valve

1шт.

3

D35658

VALVE

ASSEMBLY - male coupling

1шт.

4

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

fitting

1шт.

5

D31975

FITTING

end

1шт.

D31618

COUPLING, BREAK AWAY

COUPLING - female (Snap-Tite) When stock is exhausted, supply D52800 coupling for service listed on fig. 158, Includes: Ref. 6 - 16

1шт.

6

D31975

FITTING

end, D31618 hyd coupling

1шт.

7

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

fitting, D31618 hyd coupling

1шт.

8

D35659

LOCK VALVE

ASSEMBLY - female coupling, D31618 hyd coupling

1шт.

9

D31984

SEAL

valve, D31618 hyd coupling

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - female , D31618 hyd coupling

1шт.

11

D31982

KIT

BALL - includes 10 balls (When stock is exhausted, order 10, 211-6 steel balls), D31618 hyd coupling

1шт.

11

211-6

BALL,7/32" Dia

steel, D31618 hyd coupling 7/32" Dia

10шт.

12

D31983

O-RING

SEAL - "O"ring, internal (When stock is exhausted, order D42469 kit for service), D31618 hyd coupling

1шт.

13

D31978

RING

backup (When stock is exhausted, order D42469 kit for service), D31618 hyd coupling

1шт.

D42469

SEAL

KIT - D31618 hyd coupling, Includes: Ref. 13A and 13B

1шт.

13a

NSS

NOT SOLD SEPARAT

SEAL - double "O"ring, internal, D31618 hyd coupling

1шт.

13b

NSS

NOT SOLD SEPARAT

RING - backup, D31618 hyd coupling

1шт.

14

D31979

VALVE SPRING

D31618 hyd coupling

1шт.

15

D31980

SLEEVE CYLINDER

ball retaining, D31618 hyd coupling

1шт.

16

D31981

RING

retaining, D31618 hyd coupling

1шт.

D31456

KIT

D31456 service kit for hyd coupling, Includes: Ref. 17 - 23

1шт.

17

D31978

RING

backup (When stock is exhausted, order D42469 kit for service), D31456 service kit for hyd coupling

1шт.

18

D31983

O-RING

SEAL - internal (When stock is exhausted, order D42469), D31456 service kit for hyd coupling

1шт.

D42469

SEAL

KIT - D31456 service kit for hyd coupling, Includes: Ref. 18A and 18B

1шт.

18a

NSS

NOT SOLD SEPARAT

SEAL - double "O"ring, internal, D31456 service kit for hyd coupling

1шт.

18b

NSS

NOT SOLD SEPARAT

RING - backup, D31456 service kit for hyd coupling

1шт.

19

D35658

VALVE

ASSEMBLY - male coupling, D31456 service kit for hyd coupling

1шт.

20

D35659

LOCK VALVE

ASSEMBLY - female coupling, D31456 service kit for hyd coupling

1шт.

21

D31984

SEAL

valve, D31456 service kit for hyd coupling

2шт.

22

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

fitting, D31456 service kit for hyd coupling

2шт.

23

D31979

VALVE SPRING

sleeve, D31456 service kit for hyd coupling

1шт.

Выбрано товаров: 33
