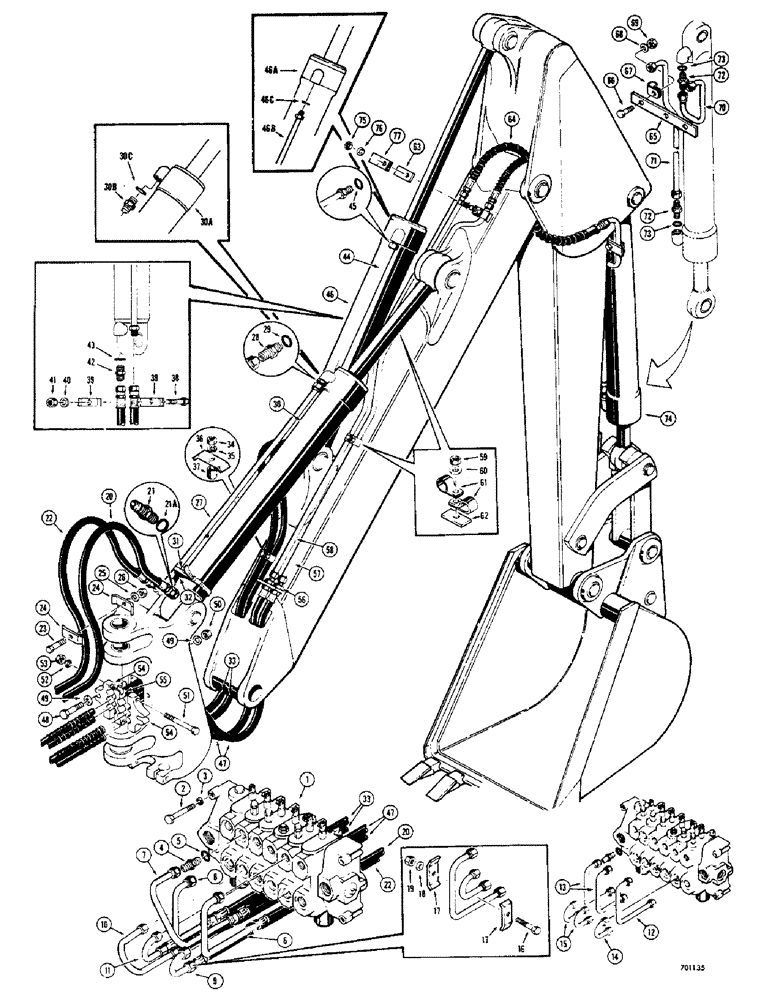

Запчасти Case 33S (138) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS, (USED BEFORE BACKHOE SN 4171636)

1

REF

INSTRUCTION

VALVE - backhoe control (See Figure 226 for proper valve)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight (See Figure 134 for different upper boom section plumbing used on 33S backhoes), Incl. Ref. 5

6шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

D36654

TUBE

- upper valve port to boom cylinder (33 backhoe)

1шт.

7

D40709

TUBE

- upper valve port to bucket cylinder (33 backhoe)

1шт.

8

D40713

- upper valve port to dipper cylinder (33 backhoe)

1шт.

9

D30771

TUBE

- lower valve port to boom cylinder (33 backhoe)

1шт.

10

D40711

TUBE

- lower valve port to bucket cylinder (33 backhoe)

1шт.

11

D40715

TUBE

- lower valve port to dipper cylinder (33 backhoe)

1шт.

12

D36654

TUBE

- upper valve port to boom cylinder (33S backhoe)

1шт.

13

D30773

TUBE

- upper valve port to dipper and bucket cylinders (33S backhoe)

2шт.

14

D36923

TUBE

- lower valve port to boom cylinder (33S backhoe)

1шт.

15

D30771

TUBE

- lower valve port to dipper and bucket cylinders (33S backhoe)

2шт.

16

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

17

D20045

PLATE ASSY.

CLAMP - tube

6шт.

18

195-21

WASHER,5/16"

- plain () 5/16"

3шт.

19

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

3шт.

20

D38124

HOSE

- upper valve to boom cyl., closed end (57" long)

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 21A

1шт.

21a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

22

D38124

HOSE

- lower valve port to boom cylinder, rod end (57" long)

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

24

R15257

CLAMP

- hose

2шт.

25

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

26

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

1шт.

27

D37232

BOOM

TUBE - to boom cylinder, rod end

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight (Used with D40414 cyl. only), Incl. Ref. 29

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

30

REF

INSTRUCTION

CYLINDER - hydraulic, boom (See Figures 304 thru 312 for proper cylinder)

1шт.

30b

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight (If used) Size identification - 7/8" - 14 NF x 1-1/16" - 12 JIC, Includes: Ref. 30C

1шт.

30c

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

31

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

1шт.

32

D38648

BLOCK

SPACER - clamp

1шт.

33

D37216

HOSE ASSY.

HOSE - valve to dipper cylinder (72-1/2" long)

2шт.

34

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC) Early production

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Late production) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

35

195-25

WASHER,3/8"

- plain () Early production 3/8"

1шт.

92-6

LOCK WASHER,3/8"

late production 3/8"

1шт.

36

D40236

CLAMP

- hose

1шт.

37

D33554

BUSHING

SPACER - clamp (Early production only)

1шт.

38

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

39

D33316

CLAMP

- tube

2шт.

40

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

41

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

1шт.

42

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

D37230

TUBE - to dipper cyl., rod end (With 1-1/16" - 12 NF threads), Includes: Ref. 45

1шт.

45

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

46

REF

INSTRUCTION

CYLINDER - hydraulic, dipper (See Figures 314 thru 318 for proper cylinder)

1шт.

46b

D42624

TUBE

- to dipper cyl., rod end (With 7/8" - 14 NF thread), Includes: Ref. 46C

1шт.

46c

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

47

D39358

HOSE ASSY.

HOSE - valve to bucket cylinder (54" long)

2шт.

48

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

49

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

50

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

51

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

2шт.

52

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

53

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

54

D26125

CLAMP

- hose, outer

2шт.

55

D26124

HOSE

CLAMP - hose, center

1шт.

56

D26231

NUT

- hex., lock (Special)

2шт.

57

D37640

TUBE - to bucket cylinder, closed end

1шт.

58

D37638

TUBE

- to bucket cylinder, rod end

1шт.

59

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC) Early production

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Late production) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

60

195-21

WASHER,5/16"

- plain ( - 18 NC) Early production 5/16"

2шт.

92-6

LOCK WASHER,3/8"

late production 3/8"

1шт.

61

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube (Early production)

4шт.

D40236

CLAMP

- tube (Late production)

1шт.

62

D38665

SPACER - tube (Early production only)

2шт.

63

D37330

SPACER - tube (Early production only)

1шт.

64

D37635

HOSE

- to bucket cylinder (40" long)

2шт.

65

D37229

SPACER BAR - tube

1шт.

66

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

67

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

3шт.

68

195-21

WASHER,5/16"

- plain () 5/16"

3шт.

69

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

3шт.

70

D37632

TUBE

- to bucket cylinder, closed end

1шт.

71

D37636

TUBE

- to bucket cylinder, rod end

1шт.

72

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 73

2шт.

73

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

74

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (See Figures 320 thru 326 for proper cylinder)

1шт.

75

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC) Early production

1шт.

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

(Late production) Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

76

195-21

WASHER,5/16"

- plain ( - 18 NC) Early production 5/16"

1шт.

92-6

LOCK WASHER,3/8"

late production 3/8"

1шт.

77

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube (Early production)

2шт.

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube (Late production)

2шт.
