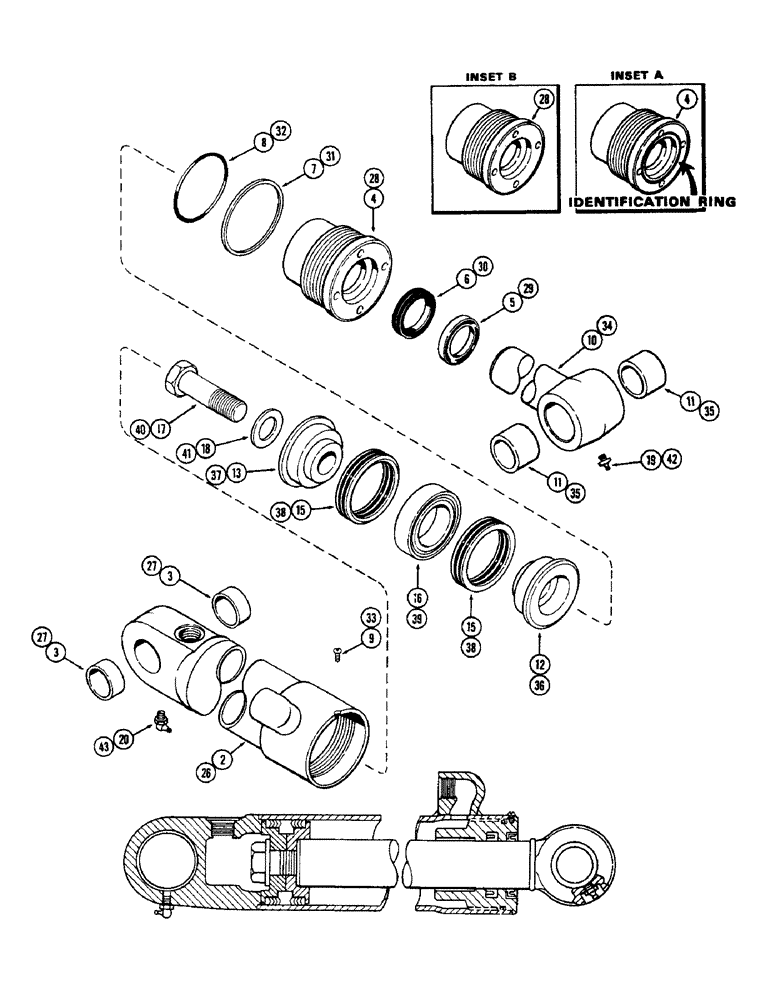

Запчасти Case 33S (328) - G33196 BACKHOE BUCKET CYL,3-1/2"DIA. CYL W/30-9/16 STROKE USED W/4 DIPPER EXT. W/GLAND ID RING

G33196

CYLINDER

ASSY. - bucket, Includes: Ref. 2 - 20

1шт.

2

G32399

CYLINDER

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G33191

GLAND

ASSY. - w/bushing, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See inset A)

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit P/N G32729

1шт.

6

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 3/32")

1шт.

Part of seal kit P/N G32729

1шт.

7

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32729

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit P/N G32729

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

10

G33162

ROD

ASSY. - piston (2" dia.) (w/identification ring), Includes: Ref. 11

1шт.

11

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

12

G33167

PISTON

- split (Rod end) (w/identification ring)

1шт.

13

D28367

PISTON

- split (Bolt end)

1шт.

15

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type)

2шт.

Part of seal kit P/N G32729

1шт.

16

D47208

RING

- center bearing

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G32729

SEAL

KIT - cylinder repair, Includes Refs. 5, 6, 7, 8, 15, 29, 30, 31, 32 and 38

1шт.

G32080

CYLINDER

ASSY. - bucket, Includes: Ref. 26 - 43

1шт.

26

G32399

CYLINDER

TUBE ASSY. - cylinder body, Includes: Ref. 27

1шт.

27

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

NLS

NO LONGER SERVICED

ASSY. - w/bushing, Includes: Ref. 28 - 35

1шт.

28

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See inset B)

1шт.

29

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit P/N G32729

1шт.

30

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

Part of seal kit P/N G32729

1шт.

31

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32729

1шт.

32

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit P/N G32729

1шт.

33

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

34

G32404

ROD

ASSY. - piston (2" dia.) (w/o identification ring)

1шт.

35

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

36

D28368

PISTON

- split (Rod end) (w/o identification ring)

1шт.

37

D28367

PISTON

- split (Bolt end)

1шт.

38

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY - piston ("V" type)

2шт.

Part of seal kit P/N G32729

1шт.

39

D47208

RING

- center bearing

1шт.

40

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

41

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

43

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G32729

SEAL

KIT - cylinder repair, Includes Refs. 5, 6, 7, 8, 15, 29, 30, 31, 32 and 38

1шт.
