Запчасти Case 33S (258) - LOADER LIFT CYLINDERS, CYLINDER WITH FLAT SNAP-IN TYPE OUTER ROD WIPER

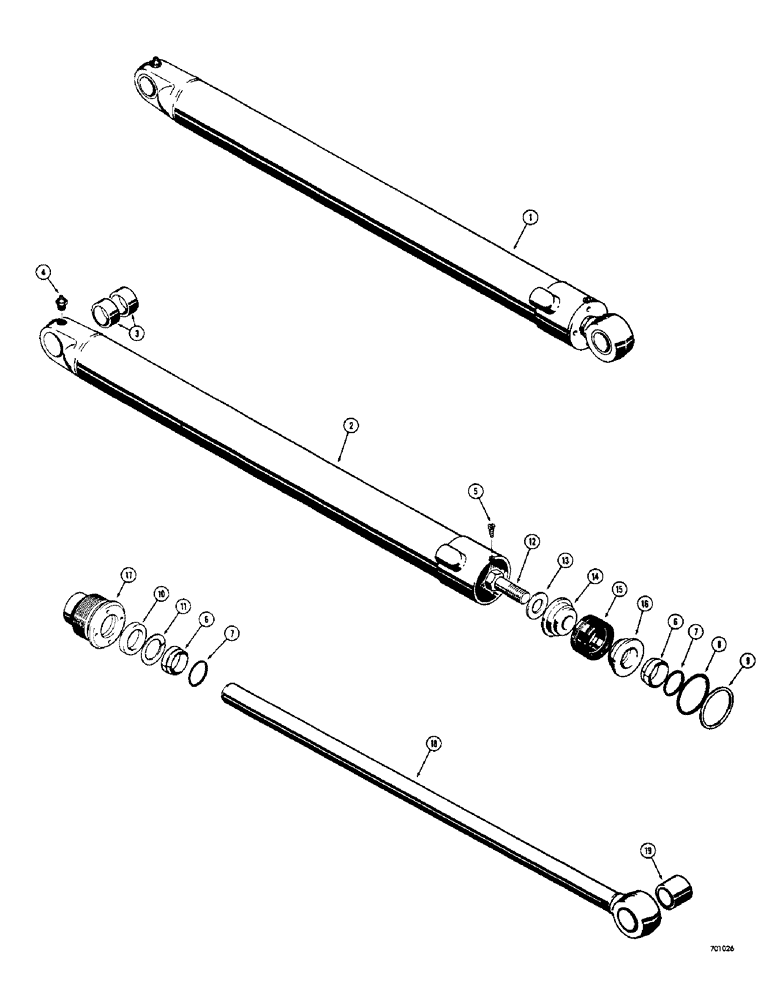

Схема запчастей Case 33S - (258) - LOADER LIFT CYLINDERS, CYLINDER WITH FLAT SNAP-IN TYPE OUTER ROD WIPER

Артикул

Название

Примечание

Количество

1

D31463

LIFT CYLINDER

CYLINDER - lift, R.H. (3" I.D. x 31-1/2" stroke) Used before loader serial no. 4178576, Includes: Ref. 2 - 19

1шт.

1

D48614

CYLINDER - lift, R.H. (3" I.D. x 31-1/2" stroke) Used on loader serial no. 4178576 and after, Includes: Ref. 2 - 19

1шт.

1

D31464

CYLINDER

- lift, L.H. (3" I.D. x 31-1/2" stroke) Used before loader serial no. 4178576, Includes: Ref. 2 - 19

1шт.

1

D48615

CYLINDER

- lift, L.H. (3" I.D. x 31-1/2" stroke) Used on loader serial no. 4178576 and after, Includes: Ref. 2 - 19

1шт.

2

D31461

TUBE

- D31463 cylinder, R.H., Includes: Ref. 3

1шт.

2

D48616

TUBE

- D48614 cylinder, R.H., Includes: Ref. 3

1шт.

2

D31462

TUBE - D31464 cylinder, L.H., Includes: Ref. 3

1шт.

2

D48617

BODY

TUBE - D48615 cylinder, L.H., Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube (D31461 and D31462 tubes only)

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27706

WIPER SEAL

WIPER - rod

2шт.

7

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (If used)

2шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D28049

RING

- backup, gland seal

1шт.

10

D36969

CUP

SEAL - rod

1шт.

11

D28498

RING

- backup, rod seal

1шт.

12

D29306

BOLT

- special

1шт.

13

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

14

D28366

PISTON

- split, bolt end half

1шт.

15

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

16

D28365

PISTON

- split, rod end half

1шт.

17

D45067

GLAND

- packing

1шт.

18

D32145

ROD

- piston (1-1/2" dia.), Includes: Ref. 19

1шт.

19

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- rod

1шт.

Выбрано товаров: 25
