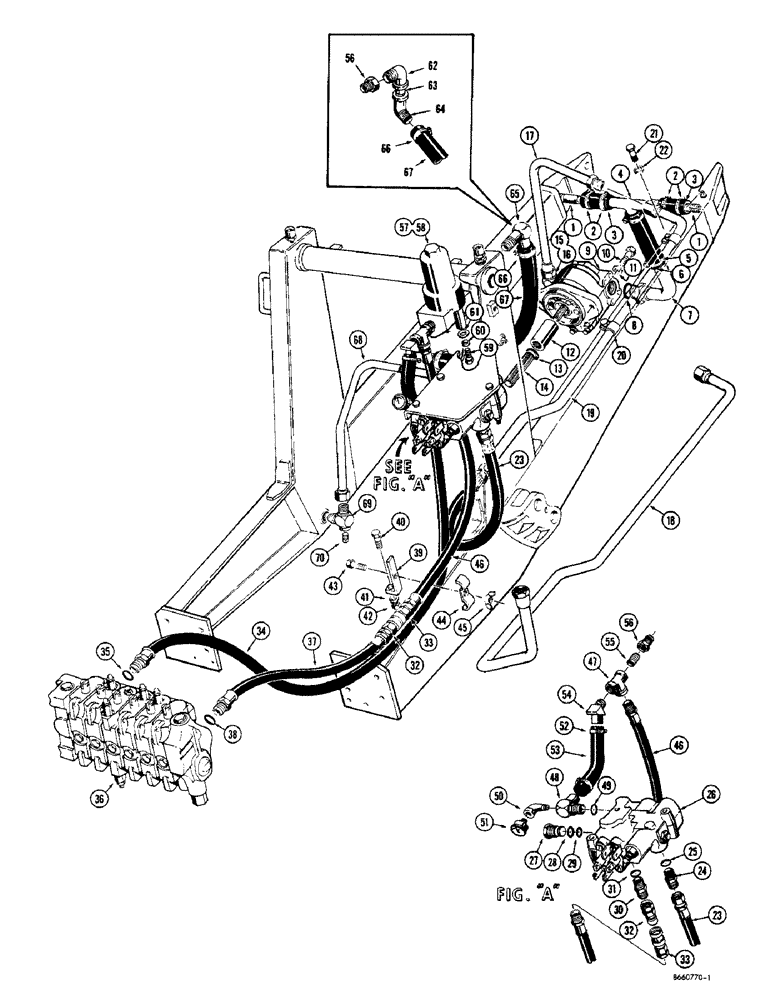

Запчасти Case 33S (250) - SPECIAL BACKHOE PRIMARY HYDRAULICS, USED BEFORE 32 LOADER SN 4110090

1

D33363

FITTING

STEM - hose, hydraulic reservoir

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3,

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure, at reservoir 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

4

D38631

TEE

- tube type, reservoir to pump (Early production)

1шт.

D41098

TEE

- tube type, reservoir to pump (Late production)

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

6

D35463

HOSE

- low pressure, at pump (13-1/2" long) Used with D38631 tube only

1шт.

D37188

HOSE

- low pressure, at pump (10" long) Used with D41098 tube only

1шт.

7

D36747

STEM

- hose, at pump, Includes: Ref. 8

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

9

D41390

PUMP

- hydraulic, 20 G.P.M. at 1900 R.P.M. at 2200 P.S.I. or 22 G.P.M. at 2100 R.P.M. at 2200 P.S.I. (Parts list Figure 204)

1шт.

9

DR41390

REMAN-HYD PUMP

Remanufactured, Pump, Hydraulic

1шт.

9

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Pump, Hydraulic

1шт.

9

87644746R

REMAN-HYD PUMP

33 BACKHOE FOR 580CK, 33 LOADER

1шт.

9

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

11

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

12

D31108

SPLINED COUPLING

COUPLING - female, pump to shaft, Includes: Ref. 13

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

14

D30569

SHAFT

- pump drive

1шт.

15

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

17

D30563

TUBE ASSY.

TUBE -, Serial Range: pump-valve

1шт.

18

D30513

TUBE ASSY.

TUBE - pump to valve (Early production) When stock is exhausted, use D33579 tube and D24646 hose for service

1шт.

19

D33579

TUBE

- pump to valve (Late production) Used with D24646 hose

1шт.

20

R11405

CLAMP

- tube

2шт.

21

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

22

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

23

D24646

HOSE ASSY.

HOSE - pump to valve (25" long)

1шт.

24

D28890

CONNECTOR, ELEC

CONNECTOR - male, straight, Includes: Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

26

REF

INSTRUCTION

VALVE - loader control (See page 40 thru 50 of parts catalog C908)

1шт.

27

D25783

PLUG - power beyond

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

29

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

30

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - male, straight, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

32

D31617

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male (Parts list Figure 156)

2шт.

33

D31618

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female (Parts list Figure 156)

2шт.

34

D37540

HOSE

- loader valve to backhoe valve (83" long), Includes: Ref. 35

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

36

D39047

VALVE

- backhoe control (Parts list Figure 226)

1шт.

37

D37541

HOSE

- backhoe valve to loader valve (43" long), Includes: Ref. 38

1шт.

38

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

39

D31392

CLAMP

BRACKET - clamp mounting

1шт.

40

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

41

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

42

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

43

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

44

R15257

CLAMP

- hose

1шт.

45

129-419

WING NUT,5/16"-18

NUT - winged (5/16" - 18 NC)

1шт.

46

D33709

FLEXIBLE HOSE

HOSE - backhoe valve to loader valve (38" long)

1шт.

47

221-425

FITTING,3/4" NPT

TEE - female

1шт.

48

D31363

ELBOW - adjustable, 90 degrees, Includes: Ref. 49

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

50

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

51

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

52

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

53

32798

HOSE

-, Serial Range: valve-filter

1шт.

54

R11626

CONNECTOR, ELEC

STEM - hose, 45 degrees

1шт.

55

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, 3/4" x 1-3/8"

1шт.

56

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducing (If used)

1-2шт.

57

D31338

X

FILTER - hydraulic oil (Early production) (Parts list page 70 parts catalog C908) Order D32254 filter and 2 - 221-65 bushings for service

1шт.

58

D32254

FILTER ASSY

- hydraulic oil (Late production) Parts list Figure 160

1шт.

59

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

60

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

61

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

62

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, If used 90º, 3/4"-14, NPT

1шт.

63

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe, 3/4" x 2" (If used)

1шт.

64

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- street, 45 degrees (If used)

1шт.

65

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 90 degrees (If used)

1шт.

66

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

67

D31469

HOSE

- low pressure, Serial Range: filter-reservoir

1шт.

68

D38627

TUBE

- crossover, at reservoir

1шт.

69

D28485

ELBOW UNION

ELBOW - special, 90 degrees

2шт.

70

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

2шт.
