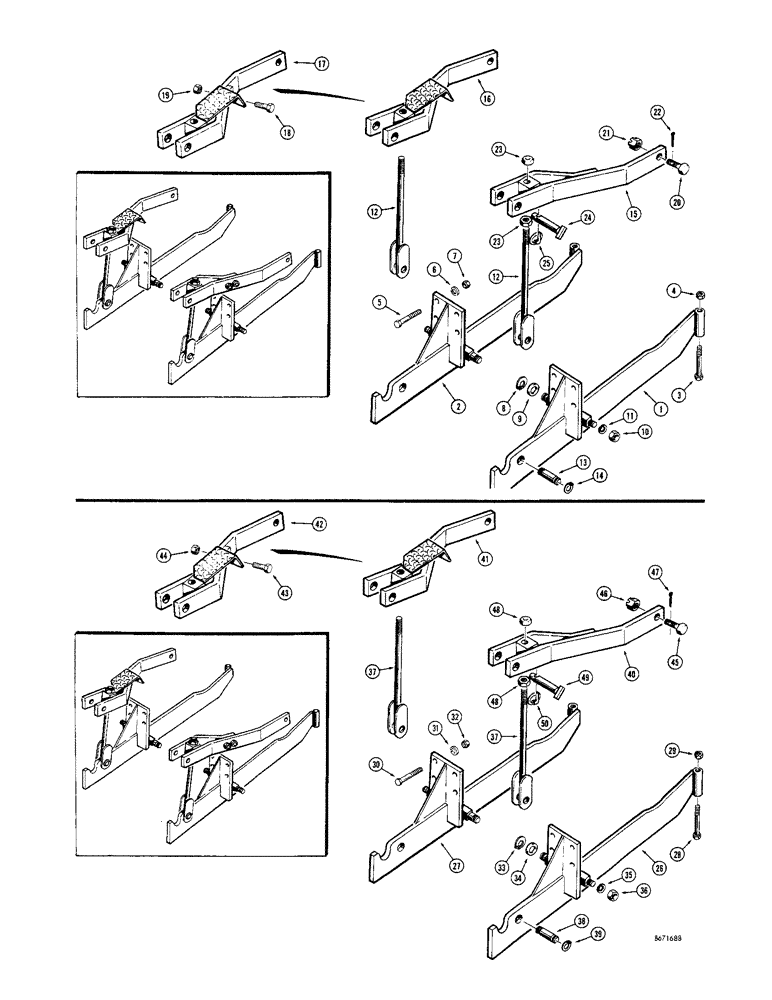

Запчасти Case 33S (246) - SPECIAL MOUNTING PARTS, FOR USE ON MODEL 32 LOADER, USED ON MODELS W/PTO & W/OR W/O DRAFT-O-MATIC

1

D37651

SUPPORT ARM - lower, R.H.

1шт.

2

D37652

SUPPORT ARM - lower, L.H.

1шт.

3

13-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

4

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

2шт.

5

113-639

BOLT

HHCS - 5/8" - 11 NC x 8"

8шт.

6

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

129-563

NUT,5/8"-11, G8

- hex., lock (5/8" - 11 NC)

8шт.

8

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

2шт.

9

95-14

WASHER,7/8"

- standard wrot () 7/8"

2шт.

10

25-1010

NUT,5/8"-11, G5

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

D38656

ROD

TENSION ROD - upper to lower support arm

2шт.

13

D33816

PIN

- mounting rod to lower support arm

2шт.

14

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

15

D37649

SUPPORT ARM - upper, R.H. (When stock is exhausted, order 1 - D42068 support arm assembly and 1 - D41684 bolt for service), Includes: Ref. 18 and 19

1шт.

16

D37650

SUPPORT ARM - upper, L.H. (When stock is exhausted, order 1 - D42067 support arm assembly and 1 - D41684 bolt for service), Includes: Ref. 18 and 19

1шт.

D42068

SUPPORT ARM ASSEMBLY - upper, R.H., Includes: Ref. 18 and 19

1шт.

D42067

SUPPORT ARM ASSEMBLY - upper, L.H., Includes: Ref. 18 and 19

1шт.

17

NSS

NOT SOLD SEPARAT

SUPPORT ARM - upper, R.H. (Not illustrated), Includes: Ref. 18 and 19

1шт.

NSS

NOT SOLD SEPARAT

SUPPORT ARM - upper, L.H., Includes: Ref. 18 and 19

1шт.

18

113-652

BOLT

HHCS - 5/8" - 11 NC x 3"

2шт.

19

129-563

NUT,5/8"-11, G8

- hex., lock (5/8" - 11 NC)

2шт.

20

D37615

BOLT

BOLT - special (Order with D37649 or D37650 support arms only) For service use D44832 bolt and D43745 washer

2шт.

20

D44832

BOLT

- special (Order with D42067 or D42068 support arms only)

2шт.

20a

D43745

WASHER

- special (Not illustrated)

2шт.

21

25-1020

NUT,1 1/4"-7, G5

2шт.

22

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , If used 1/4" x 2 1/2"

2шт.

23

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

4шт.

24

D38697

PIN ASSY.

PIN - upper support arm to mounting frame

2шт.

25

D33805

PIN

KLIK PIN - pin retaining

2шт.

26

D37619

SUPPORT ARM - lower, R.H., used on models w/ or w/o draft-o-matic

1шт.

27

D37620

SUPPORT ARM - lower, L.H., used on models w/ or w/o draft-o-matic

1шт.

28

13-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

Used on models w/ or w/o Draft-o-matic Hex, 3/4"-10 x 6", G5

2шт.

29

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC), used on models w/ or w/o draft-o-matic

2шт.

30

113-639

BOLT

HHCS - 5/8" - 11 NC x 8", used on models w/ or w/o draft-o-matic

8шт.

31

192-165

LOCK WASHER,5/8"

WASHER, LOCK, , Used on models w/ or w/o Draft-o-matic 5/8"

8шт.

32

129-563

NUT,5/8"-11, G8

- hex., lock (5/8" - 11 NC), used on models w/ or w/o draft-o-matic

8шт.

33

B18206

SNAP RING,#87, Ext

Ring, Snap, , used on models with or without draft-o-matic #87, Ext

2шт.

34

95-14

WASHER,7/8"

- standard wrot (), used on models w/ or w/o draft-o-matic 7/8"

2шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on models w/ or w/o Draft-o-matic 5/8"

2шт.

36

25-1010

NUT,5/8"-11, G5

Used on models w/ or w/o Draft-o-matic 5/8"-11, G5

2шт.

37

D38656

ROD

TENSION ROD - upper to lower support arm, used on models w/ or w/o draft-o-matic

2шт.

38

D33816

PIN

- mounting rod to lower support arm, used on models w/ or w/o draft-o-matic

2шт.

39

D26918

SNAP RING,#125, Ext

Ring, Snap, , used on models w/ or w/o draft-o-matic #125, Ext

4шт.

40

D37102

ELBOW

SUPPORT ARM - upper, R.H. (When stock is exhausted, order 1 - D42066 support arm assembly and 1 - D41684 bolt for service), used on models w/ or w/o draft-o-matic, Includes: Ref. 42 - 44

1шт.

41

D37101

SUPPORT ARM - upper, L.H. (When stock is exhausted, order 1 - D41684 bolt for service), used on models w/ or w/o draft-o-matic, Includes: Ref. 42 - 44

1шт.

D42066

SUPPORT ARM ASSEMBLY - upper, R.H., used on models w/ or w/o draft-o-matic, Includes: Ref. 42 - 44

1шт.

D42065

SUPPORT ARM ASSEMBLY - upper, L.H., used on models w/ or w/o draft-o-matic, Includes: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

SUPPORT ARM - upper, R.H. (Not illustrated), used on models w/ or w/o draft-o-matic, Includes: Ref. 42 - 44

1шт.

NSS

NOT SOLD SEPARAT

SUPPORT ARM - upper, L.H., used on models w/ or w/o draft-o-matic, Includes: Ref. 42 - 44

1шт.

43

113-652

BOLT

HHCS - 5/8" - 11 NC x 3", used on models w/ or w/o draft-o-matic

2шт.

44

129-563

NUT,5/8"-11, G8

- hex., lock (5/8" - 11 NC), used on models w/ or w/o draft-o-matic

2шт.

45

D37615

BOLT

BOLT - special (Used with D37101 or D37102 support arms only) For service use D44832 bolt and D43745 washer, used on models w/ or w/o draft-o-matic

2шт.

45

D44832

BOLT

- special (Used with D42065 or D42066 support arms only), used on models w/ or w/o draft-o-matic

2шт.

45a

D43745

WASHER

- special (Not illustrated), used on models w/ or w/o draft-o-matic

2шт.

46

25-1020

NUT,1 1/4"-7, G5

Used on models w/ or w/o Draft-o-matic 1 1/4"-7, G5

2шт.

47

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , If used, used on models w/ or w/o draft-o-matic 1/4" x 2 1/2"

2шт.

48

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF), used on models w/ or w/o draft-o-matic

4шт.

49

D38697

PIN ASSY.

PIN - upper support arm to mounting frame, used on models w/ or w/o draft-o-matic

2шт.

50

D33805

PIN

KLIK PIN - pin retaining, used on models w/ or w/o draft-o-matic

2шт.
