Запчасти Case 33S (240) - DECALS (LATE PRODUCTION)

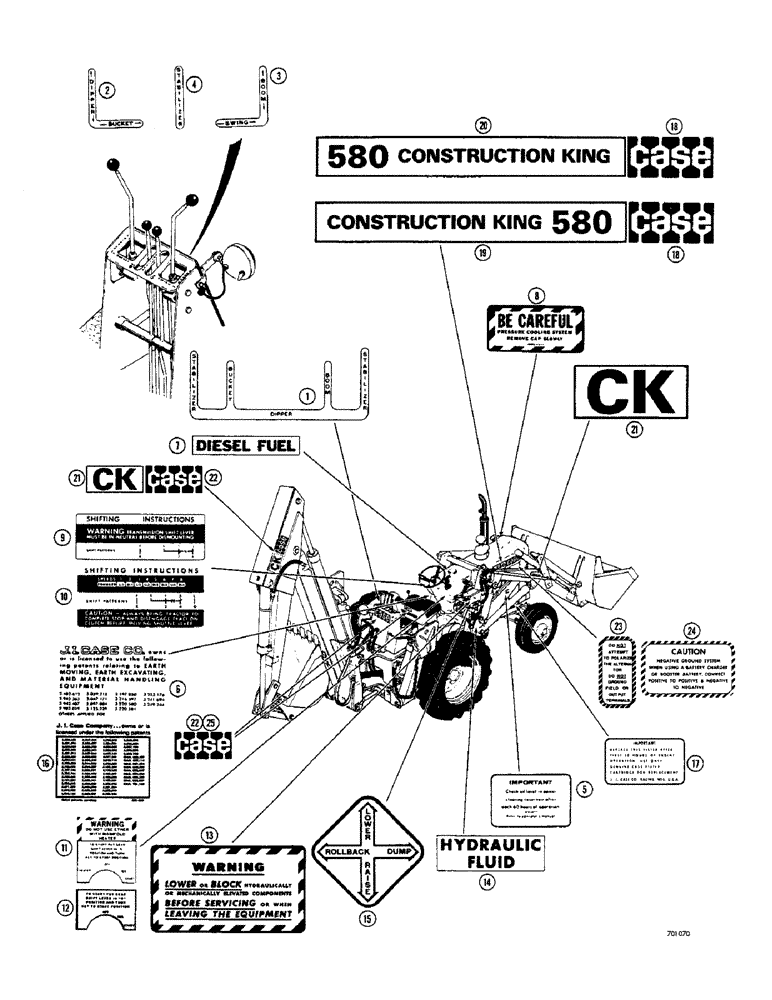

Схема запчастей Case 33S - (240) - DECALS (LATE PRODUCTION)

Артикул

Название

Примечание

Количество

D52320

KIT

- decal, loader and backhoe, Includes: Ref. 1 - 24

1шт.

1

321-921

DECAL

- backhoe control, complete (Individual levers)

1шт.

2

321-917

DECAL

- backhoe control, dipper arm and bucket (Twin lever)

1шт.

3

321-918

DECAL

- backhoe control, boom and swing (Twin lever)

1шт.

4

321-919

DECAL

- backhoe control, stabilizer (Twin lever)

1шт.

5

321-695

DECAL

- check oil level, on R.H. loader frame

1шт.

6

321-663

DECAL

- patent, L.H. loader frame

1шт.

7

321-230

DECAL

- diesel fuel, on fuel tank

1шт.

321-18

DECAL

- gasoline (Not shown) On fuel tank

1шт.

8

321-122

DECAL

- warning, pressure cap (On radiator)

1шт.

9

321-1030

DECAL

- shifting, dual range (L.H. side of dash)

1шт.

10

321-946

DECAL

- shifting, power shuttle (L.H. side of dash)

1шт.

11

321-667

DECAL

- starting, diesel models (R.H. side of dash)

1шт.

12

321-666

DECAL

- starting, gas models (R.H. side of dash)

1шт.

13

321-662

DECAL

- warning, lower or block hydraulically (At loader controls)

1шт.

14

321-229

DECAL

- hydraulic fluid, on R.H. loader frame

1шт.

15

321-920

DECAL

- loader control valve, on loader controls

1шт.

16

321-246

DECAL

- patent, tractor

1шт.

17

321-367

DECAL

- oil filter

1шт.

18

321-1438

DECAL

- "CASE", 3" high (On hood)

2шт.

19

321-1480

DECAL

- "CONSTRUCTION KING 580" (R.H. side of hood)

1шт.

20

321-1481

DECAL

- "580 CONSTRUCTION KING" (L.H. side of hood)

1шт.

21

321-1482

DECAL

- "CK", loader lift arm and backhoe dipper

4шт.

22

321-1440

DECAL

- "CASE", 4" high (At backhoe dipper and control tower)

3шт.

23

321-1061

DECAL

- caution, alternator

1шт.

24

321-1062

DECAL

- caution, battery ground

1шт.

25

321-1831

DECAL

- "HYDRA-GUIDE" (Automatic dig control models only) Not shown

2шт.

Выбрано товаров: 27
