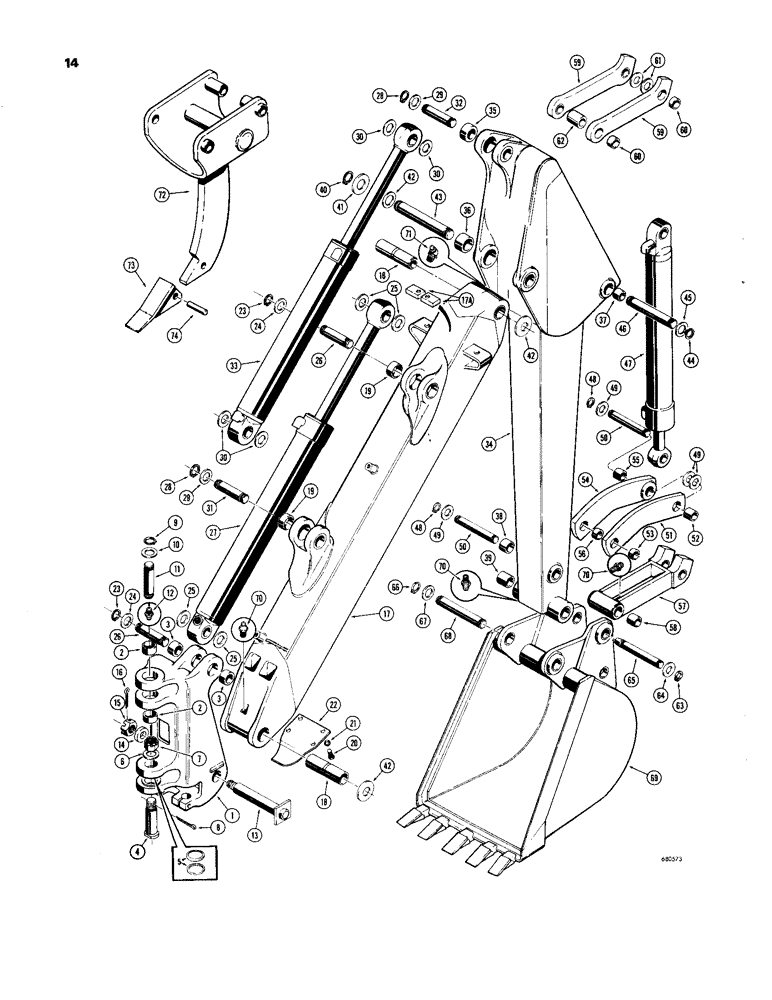

Запчасти Case 33 (014) - TOWER, BOOM, DIPPER ARM AND BUCKET, BOOM AND DIPPER ARM CAST TYPE CYL ANCHORS

1

D37423

LEVER

TOWER - backhoe swing, Includes: Ref. 2 and 3

1шт.

2

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- tower at mounting frame

2шт.

3

D38478

BUSHING

- tower at boom cylinder

2шт.

4

D37451

PIN

BOLT - mounting, swing tower

1шт.

5

D26991

BEARING

SPACER - bearing

2шт.

6

D36478

WASHER

- special

1шт.

7

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - hex., slotted (1-1/2" - 12 NF)

1шт.

8

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

9

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

10

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel (2-1/16")

1шт.

11

D33637

PIN

- tower to mounting frame

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease (1/8" NPT)

1шт.

13

D32337

PIN

- pivot, Serial Range: tower-boom

1шт.

14

D32338

WASHER

- pin

1шт.

15

129-297

NUT

- hex., slotted (1-1/4" - 7 NC)

1шт.

16

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

17

D37414

BOOM - backhoe, hose routed through boom casting (When replacing boom before backhoe serial no. 4141636, order 2-D41161 tapped blocks)

1шт.

17

D44362

BOOM

- backhoe, hoses routed around boom casting

1шт.

17a

D41161

BLOCK - tapped (Used on boom before backhoe serial no. 4141636), Includes: Ref. 18 and 19

1шт.

18

D40466

BUSHING

- at swing tower and dipper arm

2шт.

19

D38478

BUSHING

- cylinder brackets

4шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

21

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

22

D37328

COVER

- hose guard

1шт.

23

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

24

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- flat, steel (1-13/16")

4шт.

25

T28060

WASHER

SPACER - cylinder

4шт.

26

D38480

PIN

- boom cylinder mounting

2шт.

27

REF

INSTRUCTION

CYLINDER - hydraulic, boom (See Figures 112 thru 120 for proper cylinder)

1шт.

28

REF

INSTRUCTION

RING - pin retaining

4шт.

29

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- flat, steel (1-13/16")

4шт.

30

T28060

WASHER

SPACER - cylinder

4шт.

31

D38480

PIN

- crowd cylinder mounting, at boom

1шт.

32

D38481

PIN

- crowd cylinder mounting, at dipper arm

1шт.

33

REF

INSTRUCTION

CYLINDER - hydraulic, crowd (See pages 123 thru 127 for proper cylinder)

1шт.

34

D37430

X

DIPPER ARM - backhoe, used before backhoe serial no. 4160773 (When stock is exhausted, order D43956 dipper arm, D43959 pin, D45034 pin and 2-195-2156 washers for service) See parts list Figure 18 - D43956 arm, Includes: Ref. 35 - 39

1шт.

35

D38479

BUSHING

- dipper arm, at crowd cylinder

2шт.

36

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- dipper arm, at boom

2шт.

37

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- dipper arm, at bucket cylinder

2шт.

38

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- dipper arm at bucket link

2шт.

39

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper arm, at bucket

2шт.

40

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

41

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel (2-1/16")

2шт.

42

D37449

SHIM,.0747" Thk

- 1/16" thick

1шт.

43

D37609

PIN

- boom to dipper arm

1шт.

44

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

45

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, steel (1-13/16")

2шт.

46

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - bucket cylinder to dipper arm

1шт.

47

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (See Figures 128 thru 134 for proper cylinder)

1шт.

48

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

49

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special, 1/8" thick

6шт.

50

D37612

PIN,38.1mm OD x 222.25mm L

- bucket cylinder to bucket linkage and dipper arm

2шт.

51

D37445

LINK

- bucket cylinder to dipper arm, R.H., Includes: Ref. 52 and 53

1шт.

52

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket cylinder

1шт.

53

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link at dipper arm

1шт.

54

D37444

LINK

- bucket cylinder to dipper arm, L.H., Includes: Ref. 55 and 56

1шт.

55

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket cylinder

1шт.

56

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link, at dipper arm

1шт.

57

D29991

X

LINK - bucket cylinder to bucket (Early production) When stock is exhausted, use 2 - D37452 links, 2 - D39261 spacers and 1 - D37450 spacer for service

1шт.

58

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- link

4шт.

59

D37452

LINK

- bucket cylinder to bucket (Late production), Includes: Ref. 60

2шт.

60

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link

2шт.

61

D39261

WASHER

SPACER - link, at bucket cylinder

2шт.

62

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER - link, at bucket

1шт.

63

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

64

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special, 1/8" thick

2шт.

65

D37614

PIN,38mm Od x 246mm L

- bucket link to bucket (All buckets except heavy duty buckets)

1шт.

65

D37793

PIN

- bucket link (Frost point)

1шт.

65

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

PIN - bucket link (Heavy duty bucket)

1шт.

66

D25280

SNAP RING,#175, Ext

Ring, Snap, , D37614 and D37793 pins only #175, Ext

2шт.

66

D25279

SNAP RING,M35, Int

RING - snap (D30899 pin only)

2шт.

67

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, steel (1-13/16")

2шт.

68

D37613

PIN

OIN - bucket to dipper arm (See D40244 pin)

1шт.

D40244

PIN,44.45mm OD x 327.02mm L

- bucket to dipper arm (Used with D37472 and D41547 12" buckets only)

1шт.

69

REF

INSTRUCTION

BUCKET - backhoe (See Figures 32 thru 38 for options)

1шт.

70

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease (1/8" NPT)

2-3шт.

71

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

D42577

SPARE PART

FROST POINT ASSEMBLY - backhoe, Includes: Ref. 72 - 74

1шт.

72

NSS

NOT SOLD SEPARAT

BODY - frost point

1шт.

73

D43416

POINT

- tooth

1шт.

74

D43417

PIN

FLEX PIN - point

1шт.
