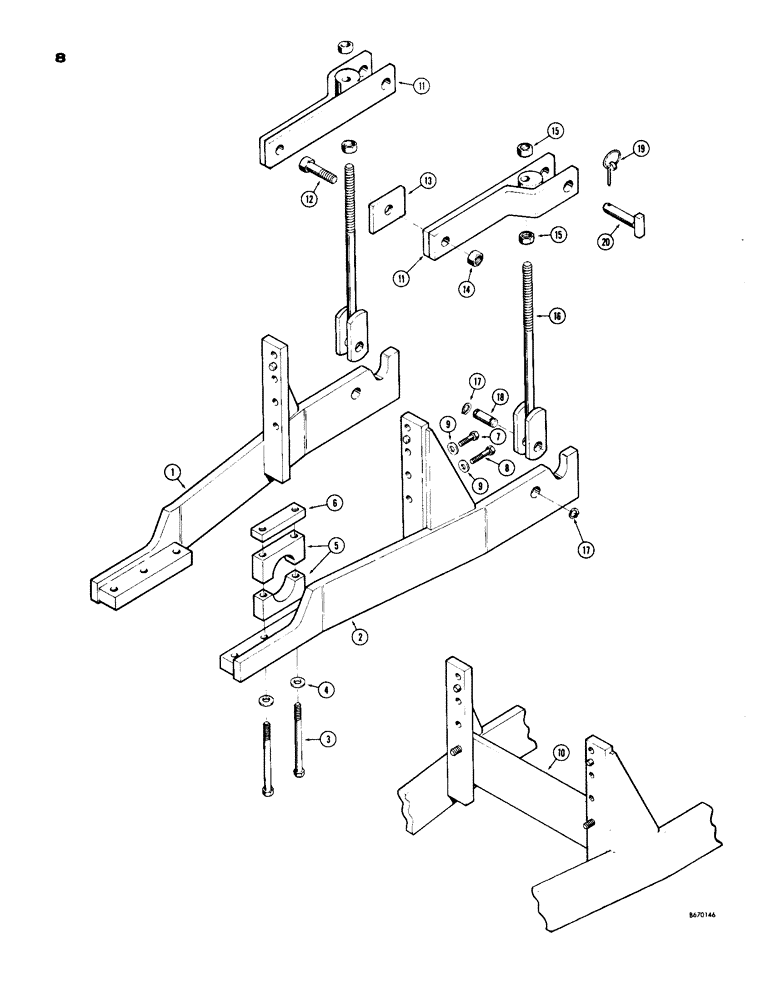

Запчасти Case 33 (008) - BACKHOE MOUNTING PARTS

1

D37308

SUPPORT

ARM - lower, R.H.

1шт.

2

D37309

SUPPORT

ARM - lower, L.H.

1шт.

3

13-14144

BOLT,Hex, 7/8" - 9 x 9", Gr 5

HHCS - 7/8" - 9 NC x 9"

4шт.

4

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

4шт.

5

D34663

CLAMP

S - support arm mounting

4шт.

6

D34722

BLOCK

- tapped

2шт.

7

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

HHCS - 5/8" - 11 NC x 2"

6шт.

8

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

HHCS - 5/8" - 11 NC x 2-1/2"

2шт.

9

A35147

WASHER

- special

8шт.

10

D37298

PLATE

- center, R.H. to L.H. lower support arm

1шт.

11

D37305

SUPPORT

ARM - upper

2шт.

12

13-2068

BOLT,Hex, 1-1/4" - 7 x 4-1/4", Gr 5

HHCS - 1-1/4" - 7 NC x 3-1/4"

2шт.

13

D37320

PLATE

- reinforcement

2шт.

14

230-41120

LOCK NUT,1 1/4"-7, GA

NUT - hex., lock (1-1/4" - 7NC)

2шт.

15

25-1116

NUT,1"-14, G5

- hex. (1" - 14NF)

4шт.

16

D37097

ROD

TENSION ROD - upper to lower support arm

2шт.

17

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

18

D33816

PIN

- tension rod to lower support arm

2шт.

19

D33805

PIN

KLIK PIN - pin retaining

2шт.

20

D38709

PIN

- upper support arm to mounting frame

2шт.
