(134) - G32132 BUCKET CYLINDER, 3-1/2"DIA. CYLINDER W/27-1/4" STROKE W/2" DIA PISTON ROD

Запчасти Case 33 (134) - G32132 BUCKET CYLINDER, 3-1/2"DIA. CYLINDER W/27-1/4" STROKE W/2" DIA PISTON ROD

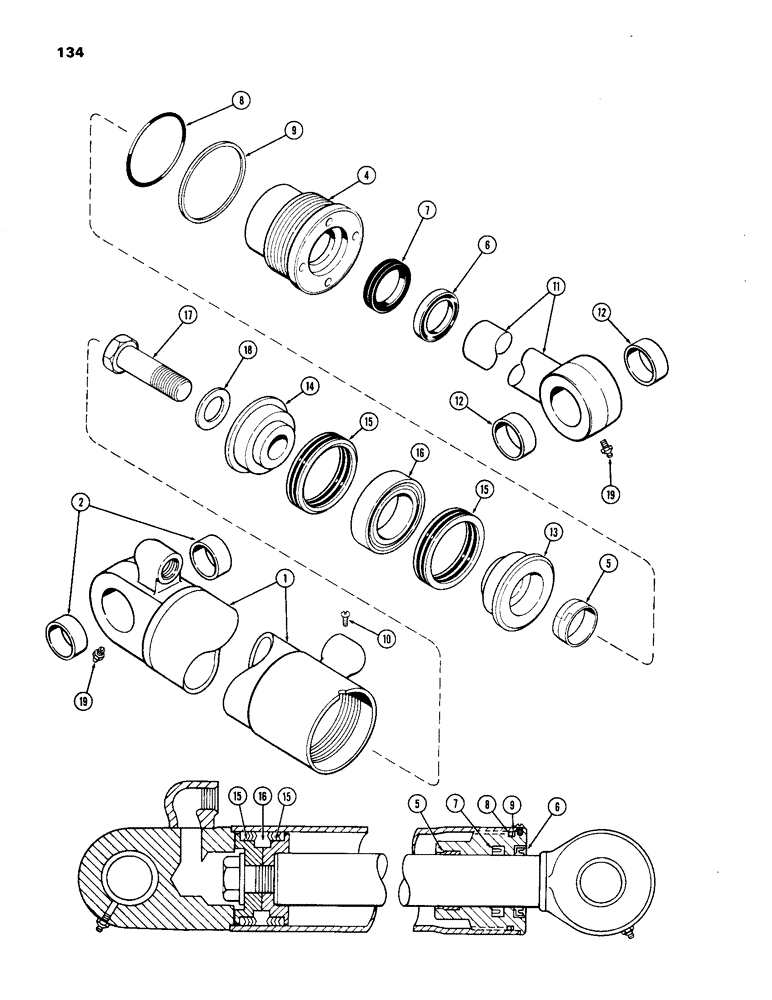

Схема запчастей Case 33 - (134) - G32132 BUCKET CYLINDER, 3-1/2"DIA. CYLINDER W/27-1/4" STROKE W/2" DIA PISTON ROD
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G32132

CYLINDER

ASSY., Includes: Ref. 1 - 19

1шт.

1

D37731

BODY

TUBE ASSY. - cylinder body, Includes: Ref. 2

1шт.

2

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G32736

GLAND

ASSY., Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring)

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32293

1шт.

6

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32293

1шт.

7

D27380

SCRAPER RING

WIPER - piston rod, inner (split type)

1шт.

Part of cylinder repair seal kit P/N G32293

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32293

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32293

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

D48968

ROD ASSY.

- piston (2" dia.)(w/o identification ring), Includes: Ref. 12

1шт.

12

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

13

D28368

PISTON

- split (rod end)(w/o identification ring)

1шт.

14

D28367

PISTON

- split (bolt end)(w/o identification ring)

1шт.

15

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type)

2шт.

Part of cylinder repair seal kit P/N G32293

1шт.

16

D47208

RING

- center bearing

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.

G32293

SEAL

KIT seal, cylinder repair, Includes: Ref. 5 - 9 and 15

1шт.
