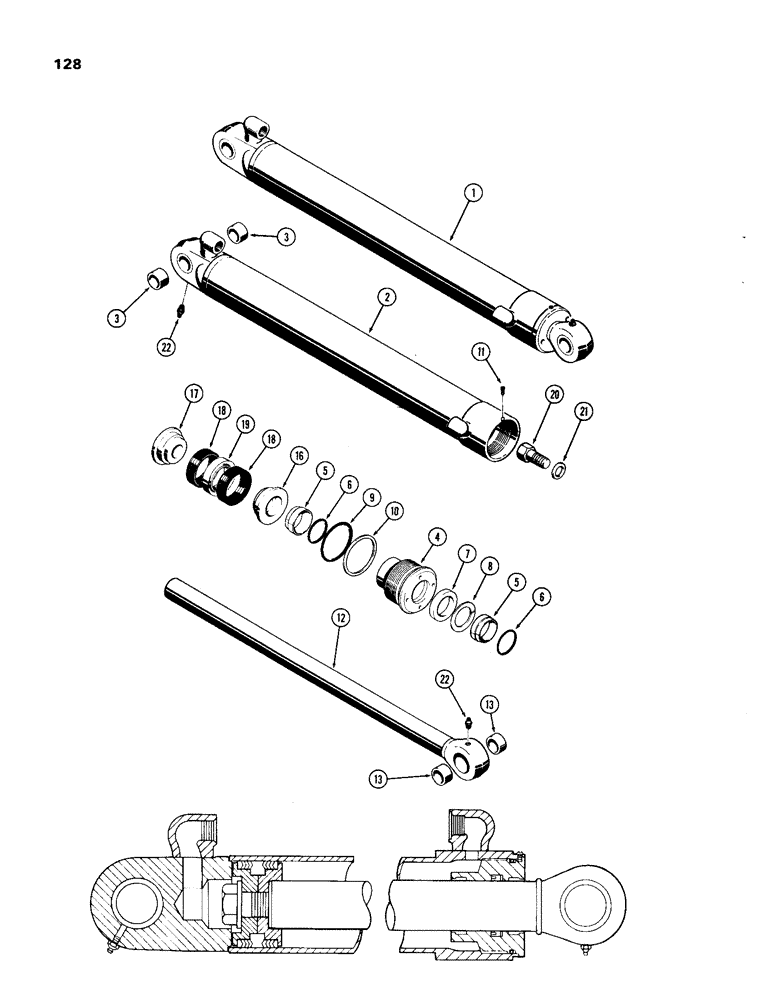

Запчасти Case 33 (128) - D37622 & D43252 BUCKET CYLINDER, 3-1/2" DIA. CYLINDER W/27-1/4" STROKE W/1-3/4" DIA PISTON ROD

1

D37622

CYLINDER

ASSY. - (with 1-1/2" piston rod eye width), Includes: Ref. 2 - 22

1шт.

1

D43252

X

CYLINDER ASSY. - (with 2" piston rod eye width) (Order 1-G32132 cyl. (P. 135) & 2-195-63 washers), Includes: Ref. 2 - 22

1шт.

2

D37731

BODY

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

D45069

GLAND

- (w/o identification ring)

1шт.

D42873

GASKET KIT

PACKING KIT - gland (Replaces D37356 & D41399), Includes: Ref. 5 - 11

1шт.

5

D27432

SHIM

- piston rod, inner & outer (split type)

2шт.

6

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - wiper (1-7/8 x 2-1/8 x 1/8")

2шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 13/32")

1шт.

8

D28499

RING

- rod seal back-up

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

10

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- gland "O" ring back-up

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 14" self tapping)

1шт.

12

D39270

ROD ASSY.

- piston (used w/D37622 cylinder) (1-3/4" dia. with 1-1/2" eye width), Includes: Ref. 13

1шт.

13

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

12

D43173

PISTON

ROD ASSY. - piston (used w/D43252 cylinder) (1-3/4" dia. with 2" eye width)

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod (7/8" wide)

2шт.

16

D28369

PISTON

- split (rod end)(w/o identification ring)

1шт.

17

D28367

PISTON

- split (bolt end)

1шт.

18

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type)(Replaces D42808)

2шт.

19

D47208

RING

- center bearing (Replaces D43545)

1шт.

20

D32861

BOLT

- piston rod (1 X 2-1/2" N.F. hex.)

1шт.

21

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- piston bolt (1-1/16 x 1-7/8 x 9/64")

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.
