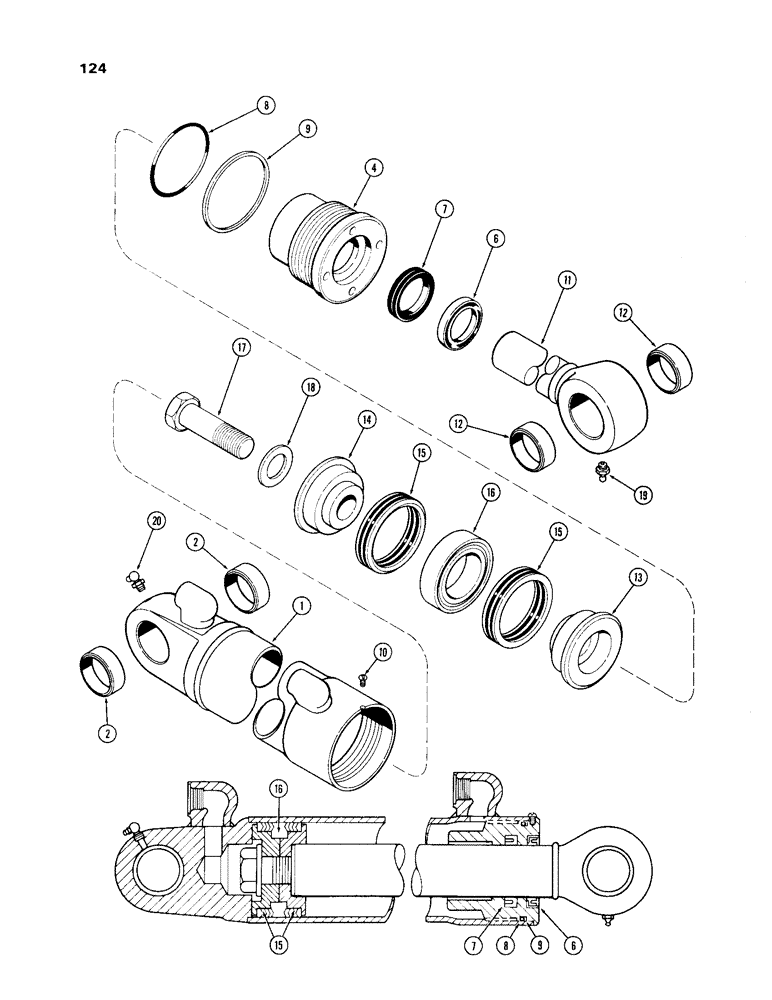

Запчасти Case 33 (124) - G33929 DIPPER CYL, 4" DIA. CYL. W/35-1/8" STROKE W/SOLID OUTER WIPER&INNER BUSHING W/GLAND ID RING
№
Артикул
Название
Примечание
Количество
G33929
HYDRAULIC CYLINDER
CYLINDER ASSY., Includes: Ref. 1 - 20
1шт.
1
G32713
CYLINDER
TUBE ASSY. - cylinder body, Includes: Ref. 2
1шт.
2
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- tube
2шт.
G33190
GLAND
ASSY. - w/bushing, Includes: Ref. 4 - 9
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - (w/identification ring)
1шт.
6
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer (2 x 2-1/2 x 5/16")
1шт.
Part of cylinder repair seal kit P/N G32615
1шт.
7
D36971
RING
SEAL - piston rod (2 x 2-1/2 x 7/16")
1шт.
Part of cylinder repair seal kit P/N G32615
1шт.
8
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - gland (4 x 4-1/4 x 1/8")
1шт.
Part of cylinder repair seal kit P/N G32615
1шт.
9
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
- Gland "O" Ring
1шт.
Part of cylinder repair seal kit P/N G32615
1шт.
10
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping)
1шт.
11
G33154
ROD
ASSY. - piston (2"dia.)(w/identification ring), Includes: Ref. 12
1шт.
12
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- piston rod
2шт.
13
G33159
PISTON
- split (rod end)(w/identification ring)
1шт.
14
D46930
PISTON
- split (bolt end)
1шт.
15
D47204
PACKING,89.15mm ID x 100.86mm OD
ASSY. - piston ("V" type)
2шт.
Part of cylinder repair seal kit P/N G32615
1шт.
16
D47209
BEARING,3.006" ID x 3.987" OD x 0.631"
RING - center bearing
1шт.
17
28-2040
BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8
- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston
1шт.
18
G32351
WASHER
- piston bolt (1-11/32 x 2-1/2 x 9/64")
1шт.
19
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITING - grease (1/8" P.T. str.)
1шт.
20
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
G32615
KIT
seal, cylinder repair, Includes: Ref. 6 - 9 and 15
1шт.
