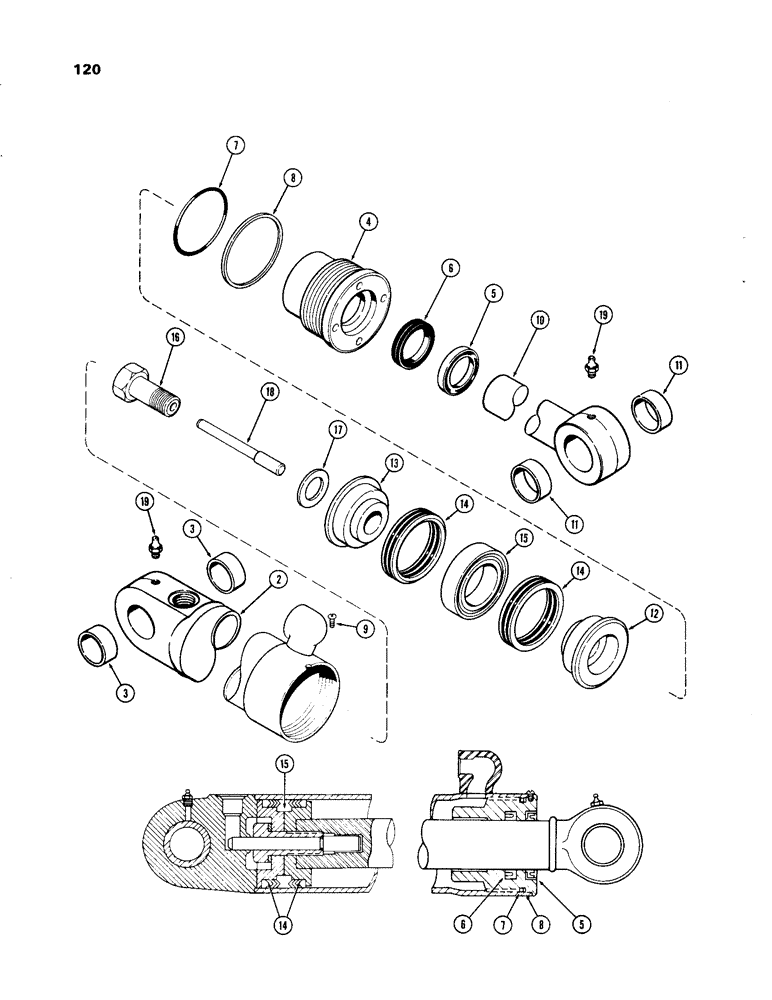

Запчасти Case 33 (120) - G32592 BOOM CYLINDER, 4-1/2" DIA. CYLINDER WITH 39-3/16" STROKE

G32592

CYLINDER BLOCK

CYLINDER ASSY., Includes: Ref. 2 - 19

1шт.

2

G32709

TUBE

ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D38478

BUSHING

- tube

2шт.

4

G32775

GLAND

ASSY. -w/bushing, Includes: Ref. 5 - 8

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4 x 2-3/4 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4 -1/2 x 4-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

8

G32284

BACK-UP RING

- gland "O"ring back-up

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

10

G34020

ROD

ASSY. - piston (2-1/4" dia.), Includes: Ref. 11

1шт.

11

D38478

BUSHING

- piston rod

2шт.

12

D46425

PISTON

- split (rod end)

1шт.

13

D38934

PISTON

- split (bolt end)

1шт.

14

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

Part of cylinder repair seal kit P/N G32285

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

16

D48966

BOLT

- piston & cushion relief pin

1шт.

17

G32351

WASHER

- bolt (1-23/64 x 2-1/2 x 9/64")

1шт.

18

D47196

PIN

- cushion relief

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., ste.)

2шт.

G32285

SEAL

KIT seal, cylinder repair, Includes: Ref. 5 - 8 and 14

1шт.
