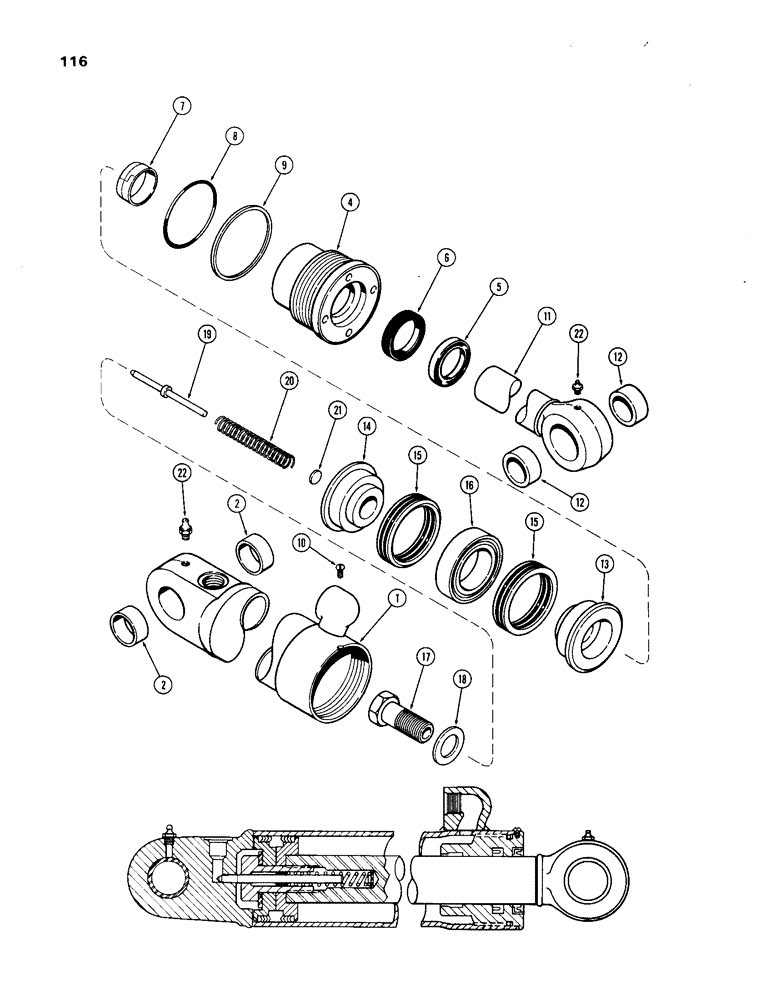

Запчасти Case 33 (116) - G32594 BOOM CYLINDER, 4"DIA. CYLINDER W/ 39-3/16"STROKE, W/ SOLID OUTER WIPER & SPLIT INNER WIPER
№
Артикул
Название
Примечание
Количество
G32594
CYLINDER
ASSY., Includes: Ref. 1 - 22
1шт.
1
D43299
CYLINDER
TUBE ASSY. - (ring weld), Includes: Ref. 2
1шт.
2
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- tube
2шт.
G32737
GLAND
ASSY., Includes: Ref. 4 - 9
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND
1шт.
5
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer (2 x 2-1/2 x 5/16")
1шт.
Part of cylinder repair seal kit P/N G32299
1шт.
6
D36971
RING
SEAL - piston rod (2 x 2-1/2 x 7/16")
1шт.
Part of cylinder repair seal kit P/N G32299
1шт.
7
D27380
SCRAPER RING
WIPER - piston rod, inner (split type)
1шт.
Part of cylinder repair seal kit P/N G32299
1шт.
8
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - gland (4 x 4-1/4 x 1/8")
1шт.
Part of cylinder repair seal kit P/N G32299
1шт.
9
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
- Gland "O" Ring
1шт.
Part of cylinder repair seal kit P/N G32299
1шт.
10
187-1-31
SCREW - gland lock (#8-32 x 1/4" self tapping)
1шт.
11
D40410
PISTON
ROD ASSY. - piston (2" dia.), Includes: Ref. 12
1шт.
12
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- piston rod
2шт.
13
D46424
PISTON
- split (rod end)
1шт.
14
D46930
PISTON
- split (bolt end)
1шт.
15
D47204
PACKING,89.15mm ID x 100.86mm OD
ASSY. - piston ("V" type)
2шт.
Part of cylinder repair seal kit P/N G32299
1шт.
16
D47209
BEARING,3.006" ID x 3.987" OD x 0.631"
RING - center bearing
1шт.
17
D41359
BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8
- piston & restrictor pin
1шт.
18
G32351
WASHER
- bolt (1-11/32 x 2-1/2 x 9/64")
1шт.
19
D38679
PIN
- restrictor
1шт.
20
D38683
SPRING
- restrictor pin (5" free length)
1шт.
21
D38684
SPACER
SEAT - spring (3/4" dia. x 1/8")
1шт.
22
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T., str.)
2шт.
G32299
KIT
seal, cylinder repair, Includes: Ref. 5 - 9 and 15
1шт.
Выбрано товаров: 30
