Запчасти Case 33 (114) - G32904 BOOM CYL,4"DIA. CYL W/39-3/16"STROKE,W/SOLID OUTER WIPER&INNER BUSHING W/SWAGE STYLE CYL TUBE

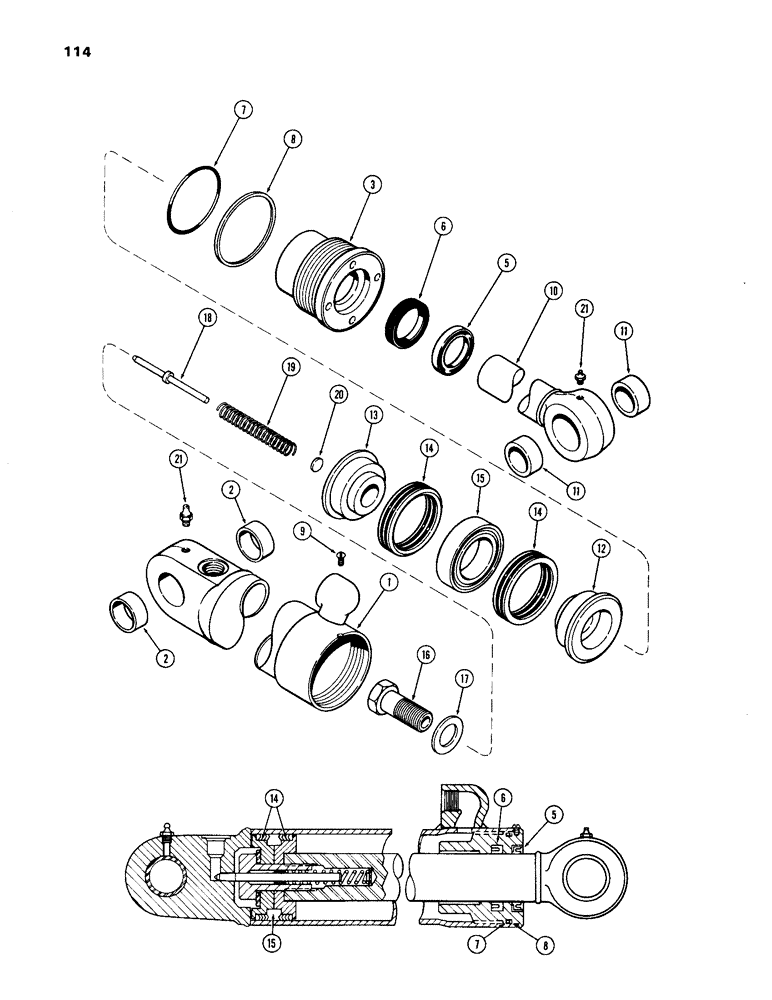

Схема запчастей Case 33 - (114) - G32904 BOOM CYL,4"DIA. CYL W/39-3/16"STROKE,W/SOLID OUTER WIPER&INNER BUSHING W/SWAGE STYLE CYL TUBE

Артикул

Название

Примечание

Количество

G32904

CYLINDER BLOCK

CYLINDER ASSY., Includes: Ref. 1 - 21

1шт.

1

G32905

TUBE

ASSY. - (swaged), Includes: Ref. 2

1шт.

2

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G32800

GLAND

ASSY. - with bushing

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32615

1шт.

6

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32615

1шт.

7

A27505

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32615

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

"O" - Gland

1шт.

Part of cylinder repair seal kit P/N G32615

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

10

D40410

PISTON

ROD ASSY. - piston (2" dia.), Includes: Ref. 11

1шт.

11

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

12

D46424

PISTON

- split (rod end)

1шт.

13

D46930

PISTON

- split (bolt end)

1шт.

14

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

1шт.

Part of cylinder repair seal kit P/N G32615

1шт.

15

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

16

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- piston & restrictor pin

1шт.

17

G32351

WASHER

- bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

18

D38679

PIN

- restrictor

1шт.

19

D38683

SPRING

- restrictor pin (5" free length)

1шт.

20

D38684

SPACER

SEAT - spring (3/4" dia. x 1/8")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.

G32615

KIT

seal, cylinder repair, Includes: Ref. 5 - 8 and 14

1шт.

Выбрано товаров: 28
