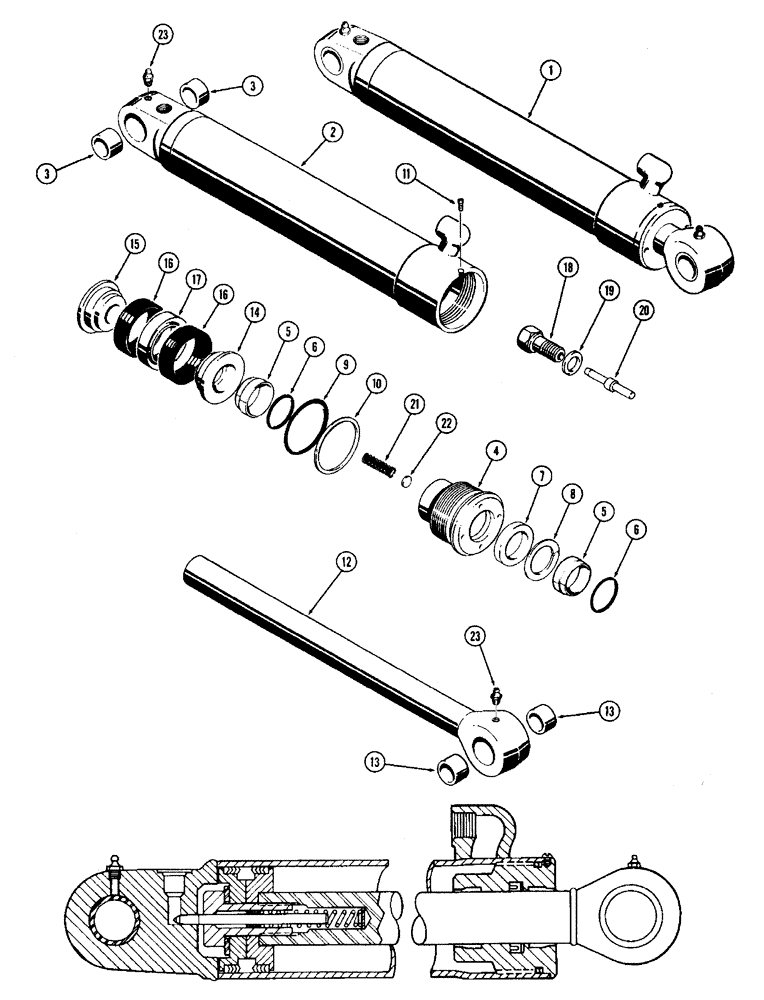

Запчасти Case 33 (112) - D40414 & D42627 BOOM CYL 4"DIA SYL W/39-3/16 STROKE, W/SPLIT TYPE INNER & OUTER WIPERS

1

D40414

X

CYLINDER ASSY. - boom (1-1/16" - 12 N.F. front port) (Order 1-G32904 cyl., & 1-218-5065 connector), Includes: Ref. 2 - 23

1шт.

1

D42627

CYLINDER

CYLINDER ASSY. - boom (7/8" - 14 N.F. front port) (Order 1-G32904 cylinder) (See fig. 115), Includes: Ref. 2 - 23

1шт.

2

D43108

X

TUBE ASSY. - (used w/D40414 cylinder) (Order D43299 tube Y 218-5065 connector), Includes: Ref. 3

1шт.

2

D43299

CYLINDER

TUBE ASSY. - (used w/D42627 cylinder), Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

BUSHING - tube

2шт.

4

D45071

GLAND

GLAND - (Order G32737) (See fig. 117)

1шт.

D42876

GLAND

PACKING KIT - gland (Replaces D37358 & D41401)

1шт.

5

D27380

SCRAPER RING

WIPER - piston rod, inner & outer

2шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - wiper (2-1/8 x 2-3/8 x 1/8")

2шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

8

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

RING - rod seal back-up

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

10

D27382

RING

RING - gland "O" ring back-up

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

gland, lock, # 8-32 x 1/4" self tapping

1шт.

12

D40410

PISTON

ROD ASSY. - piston (2" dia.)

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

BUSHING - piston rod

2шт.

14

D28371

PISTON

PISTON - split (rod end)

1шт.

15

D28370

PISTON

PISTON - split (bolt end)

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

PACKING ASSY. - piston ("V" type)

2шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

18

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

BOLT - piston & restrictor pin

1шт.

19

D36434

WASHER

WASHER - (1-1/4 x 2-1/4 x 3/16") (Replaces D95033)

1шт.

20

D38679

PIN

PIN - restrictor

1шт.

21

D38683

SPRING

SPRING - restrictor pin (5" free length)

1шт.

22

D38684

SPACER

SEAT - spring (3/4" dia. x 1/8")

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
