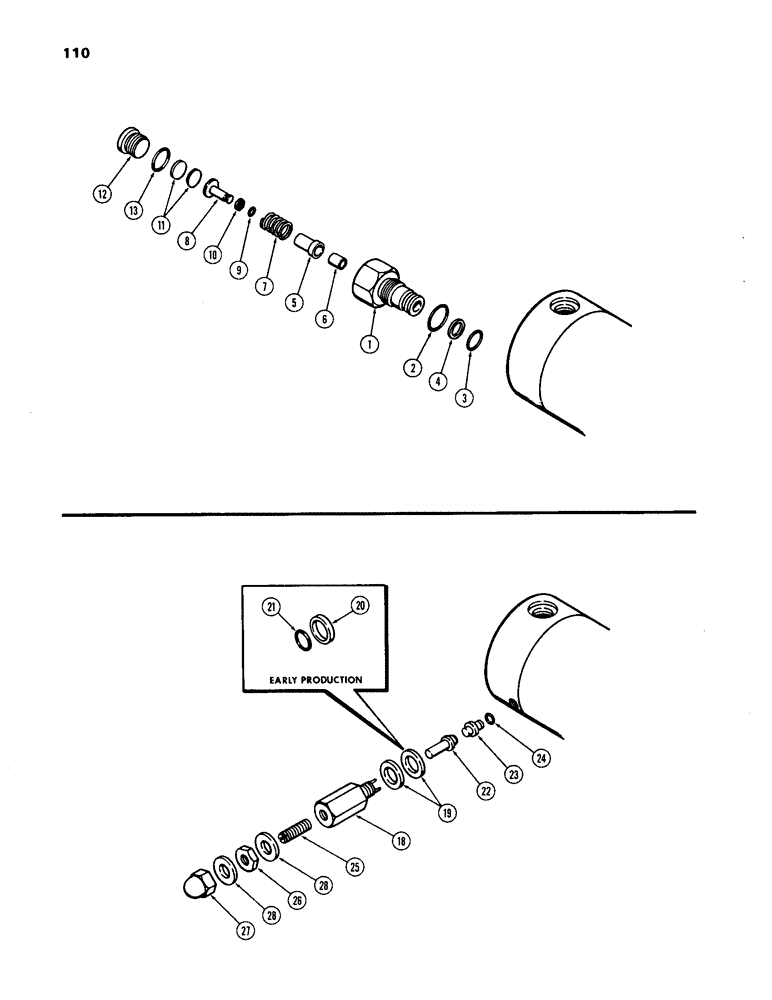

Запчасти Case 33 (110) - D47557 RELIEF VALVE, NON-ADJUSTABLE

D47557

VALVE

ASSY. - relief (used w/G33924, G33925 G32586, G32587, D49006 & D49007 swing cylinders), Includes: Ref. 1 - 13

1шт.

1

D47667

CAP

BODY - relief valve, Includes: Ref. 2 - 13

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

body (3/4 x 15/16 x 3/32")

1шт.

3

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

(9/16 x 11/16 x 1/16")

1шт.

4

D37071

RING

- "O" ring back-up (9/16" I.D.)

1шт.

5

D37151

PLUNGER

relief valve

1шт.

6

D37075

SEAT

plunger

1шт.

7

D37148

SPRING

plunger

1шт.

8

D37150

GUIDE

plunger spring

1шт.

9

T41959

O-RING

"O" RING - spring guide

1шт.

10

D37147

RING

"O" ring back-up

1шт.

11

D40355

SHIM,.005" Thk

Spring guide .005" Thk

1шт.

11

16917

SHIM

spring guide (.010")

1шт.

12

D40354

PLUG

ASSY. - relief valve

1шт.

D42478

VALVE

ASSY. - relief (not preset) (must be set to correct pressure before installation) (used w/D37625 & D37626 cylinders), Includes: Ref. 18 - 28

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - relief valve, D42478

1шт.

19

16219

GASKET

body, D42478 relief valve

2шт.

20

D31450

WASHER

GASKET - valve body (copper)(used early prod.) (Order (2) 16219 gaskets), D42478 relief valve

1шт.

21

D26872

O-RING

copper gasket (used early prod.) (Order (2) 16219 gaskets), D42478 relief valve

1шт.

D40187

PACKAGE

SEAT & POPPET KIT, D42478 relief valve, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET, D42478 relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - poppet, D42478 relief valve

1шт.

24

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Poppet seat, D42478 relief valve

1шт.

25

D38814

ADJUSTMENT SCREW,3/8" - 24

pressure adjusting, D42478 relief valve

1шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

lock, adj. screw (3/8" N.F. hex.), D42478 relief valve

1шт.

27

129-526

CROWN NUT,Low, 3/8" - 24

adj. screw cover (3/8" N.F., acorn), D42478 relief valve

1шт.

28

23150

WASHER

GASKET - cover & lock adj. nuts (copper), D42478 relief valve

2шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

plug (5/8 x 13/16 x 3/32")

1шт.
