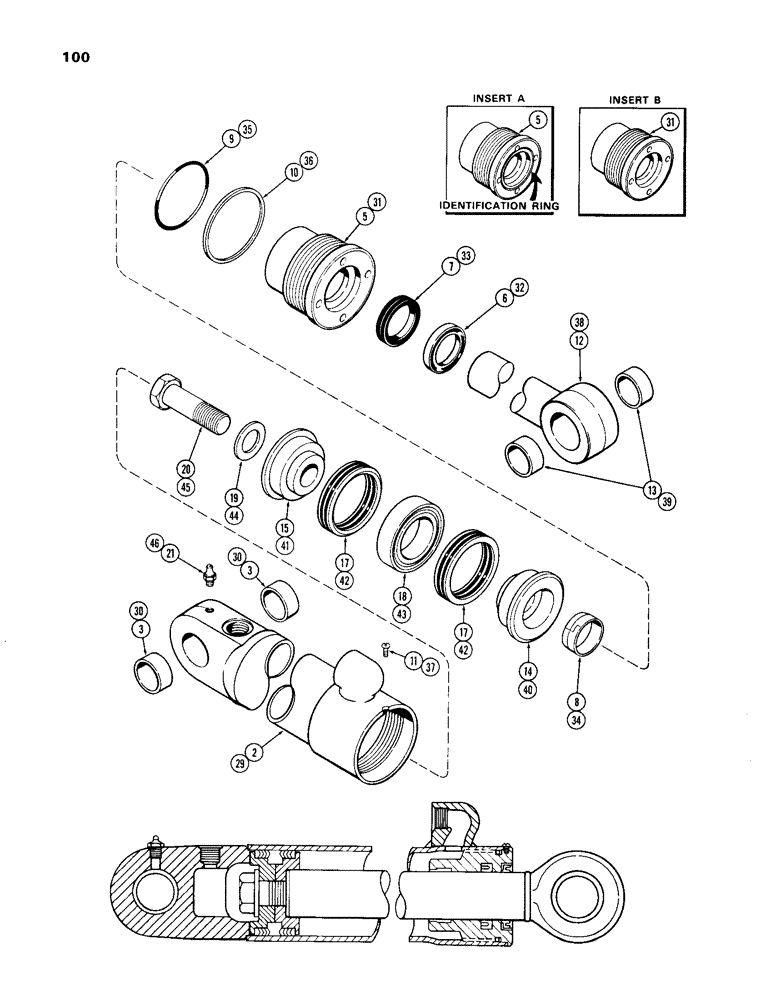

Запчасти Case 33 (100) - G33930 STABILIZER CYLINDER, 3-1/2" DIA. CYLINDER WITH 16-3/8 STROKE

1

G33930

STEERING CYLINDER

ASSY. - stabilizer, Includes: Ref. 2 - 21

2шт.

2

D37792

TUBE

ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

tube

2шт.

G33568

GLAND

ASSY. - (w/identification ring), Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (See Inset A)

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

8

D27432

SHIM

piston rod, inner

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

(3-1/2 x 3-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33931

ROD

ASSY. - piston(1-3/4" dia.)(w/identification ring), Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

piston rod

2шт.

14

G33520

PISTON

split (rod end)(w/identification ring)

1шт.

15

D28367

PISTON

split (bolt end)

1шт.

G33237

PACKING

ASSY. - piston, Includes: Ref. 17 and 18

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - piston ("V" type)

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

piston bolt (1 x 1-7/8 x 3/64")

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

G32291

CYLINDER

KIT seal, repair, Includes: Ref. 6 - 10 and G33237

1шт.

28

G32136

CYLINDER

ASSY. - G32136 stabilizer cyl w/o gland ID ring, Includes: Ref. 29 - 36

2шт.

29

D37792

TUBE

ASSY. - body, G32136 stabilizer cyl w/o gland ID ring, Includes: Ref. 30

1шт.

30

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

tube, G32136 stabilizer cyl w/o gland ID ring

2шт.

G32743

GLAND

ASSY. - G32136 stabilizer cyl w/o gland ID ring, Includes: Ref. 31 - 36

1шт.

31

NSS

NOT SOLD SEPARAT

(See Inset B), G32136 stabilizer cyl w/o gland ID ring

1шт.

32

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16"), G32136 stabilizer cyl w/o gland ID ring

1шт.

Part of cylinder repair seal kit P/N G32298

1шт.

33

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16"), G32136 stabilizer cyl w/o gland ID ring

1шт.

Part of cylinder repair seal kit P/N G32298

1шт.

34

D27432

SHIM

- piston rod, inner

1шт.

Part of cylinder repair seal kit P/N G32298

1шт.

35

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32298

1шт.

36

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32298

1шт.

37

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

lock (#8-32 x 1/4" self tapping), G32136 stabilizer cyl w/o gland ID ring

1шт.

38

D37789

ROD

ASSY. - piston (1-3/4" dia.), G32136 stabilizer cyl w/o gland ID ring

1шт.

39

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

piston rod, G32136 stabilizer cyl w/o gland ID ring

1шт.

40

D28369

PISTON

split (rod end) G32136 stabilizer cyl w/o gland ID ring

1шт.

41

D28367

PISTON

split (bolt end), G32136 stabilizer cyl w/o gland ID ring

1шт.

42

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type), G32136 stabilizer cyl w/o gland ID ring

2шт.

Part of cylinder repair seal kit P/N G32298

1шт.

43

D47208

RING

center bearing, G32136 stabilizer cyl w/o gland ID ring

1шт.

44

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

piston bolt (1 X 1-7/8 X 3/64"), G32136 stabilizer cyl w/o gland ID ring

1шт.

45

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, G32136 stabilizer cyl w/o gland ID ring Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

46

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.), G32136 stabilizer cyl w/o gland ID ring

1шт.

G32298

SEAL

KIT cylinder, repair, Includes: Ref. 32 - 36 and 42, G32136 stabilizer cyl w/o gland ID ring

1шт.
