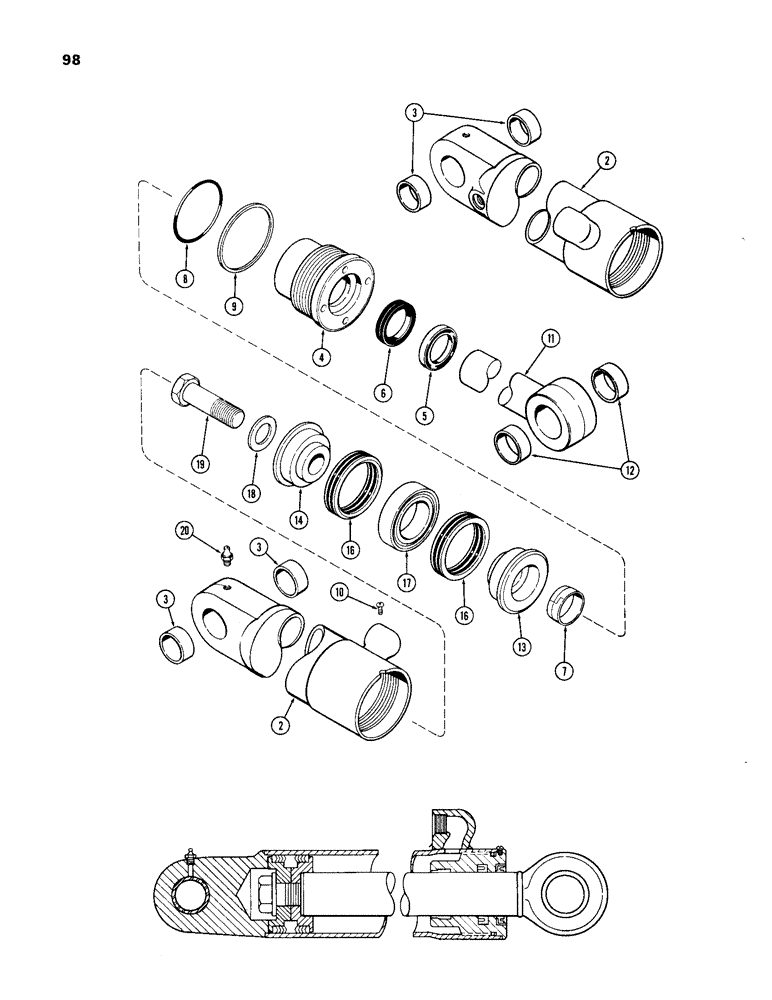

Запчасти Case 33 (098) - G32588 & G32589 STABILIZER CYLINDER, 3-1/2" DIA. CYLINDER W/16-3/8" STROKE

1

G32588

CYLINDER

ASSY. - right hand, Includes: Ref. 2 - 20

1шт.

1

G32589

CYLINDER

ASSY. - left hand, Includes: Ref. 2 - 20

1шт.

2

D38693

TUBE

ASSY. - right hand

1шт.

2

D38692

TUBE ASSY. - left hand, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G32743

GLAND

ASSY., Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring)

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

6

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 3/8")

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

7

D27432

SHIM

- piston rod, inner (split type)

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

D37789

ROD

ASSY. - piston (1-3/4" dia.)(w/o identification ring), Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

D28369

PISTON

- split (rod end)(w/o identification ring)

1шт.

14

D28367

PISTON

- split (bolt end)

1шт.

G33237

PACKING

ASSY. - piston, Includes: Ref. 16 and 17

1шт.

Part of cylinder repair seal kit P/N G32291

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - piston ("V" type)

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1 x 1-7/8 x 3/64")

1шт.

19

D32861

BOLT

- piston (1 x 2-1/2" N.F. hex)

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

G32291

CYLINDER

KIT seal, cylinder repair, Includes: Ref. 5 - 9 and G33237

1шт.
