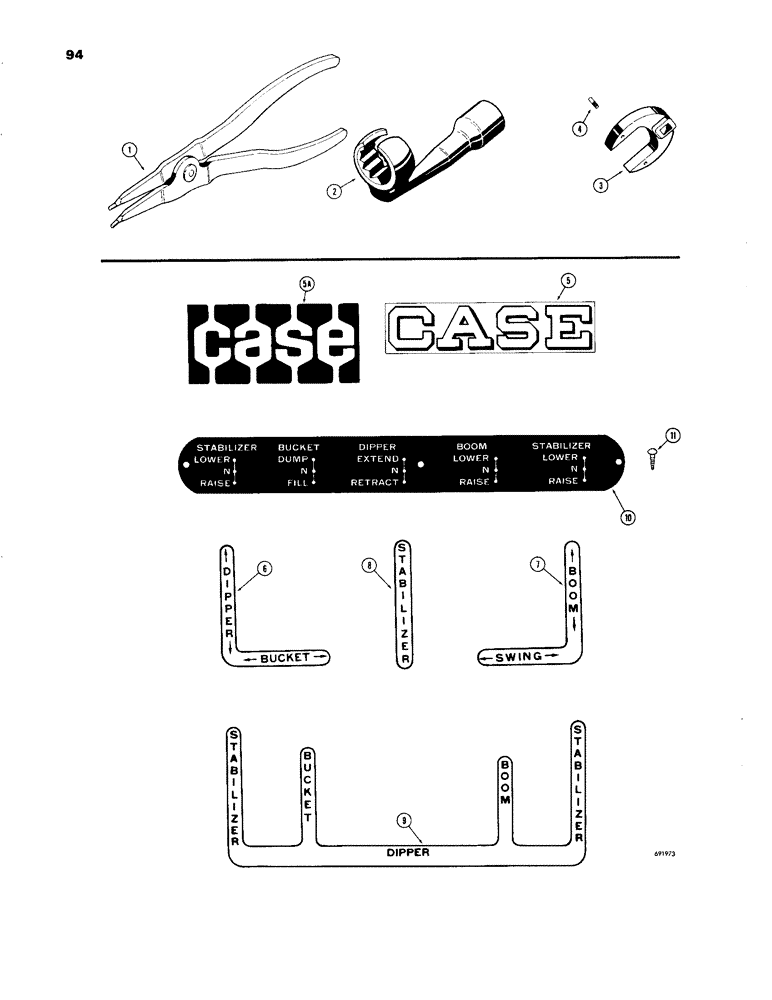

Запчасти Case 33 (094) - TOOLS

1

D32049

TOOL

PLIERS - snap ring

1шт.

2

D38971

TOOL

WRENCH - crowfoot, 1/2" drive (For backhoe hose 1" fittings), Includes: Ref. 3 and 4

1шт.

D27216

TOOL

WRENCH - crowfoot, 1/2" drive (For backhoe hose 1-1/16" fittings), Includes: Ref. 3 and 4

1шт.

D48865

TOOL

WRENCH - crowfoot, 1/2" drive (For backhoe 1-1/8" fittings), Includes: Ref. 3 and 4

1шт.

D28774

TOOL ASSY.

WRENCH - crowfoot, 1/2" drive (For backhoe hose 1-1/4" fittings), Includes: Ref. 3 and 4

1шт.

D44110

OPEN END WRENCH

SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders)

1шт.

3

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinder with 1-1/4" or 1-1/2" piston rods, Includes: Ref. 4

1шт.

3

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rod, Includes: Ref. 4

1шт.

3

D44113

OPEN END WRENCH

spanner, for 3" I.D. cylinders with 1-3/4" piston rod, Includes: Ref. 4

1шт.

3

D44114

OPEN END WRENCH

spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" piston rods, Includes: Ref. 4

1шт.

3

D44115

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinders with 2" or 2-1/4" piston rod, Includes: Ref. 4

1шт.

3

D44116

OPEN END WRENCH

spanner, 2-1/2" or 5" I.D. cylinder with 2-1/4" dia. piston rod

1шт.

4

D30107

PIN

- spanner wrench (All wrenches except D44116)

3шт.

4

D44118

SPARE PART

PIN - spanner wrench (Used with D44116 wrench only)

3шт.

5

321-675

DECAL

Case, on boom (Early production)

2шт.

5a

321-1440

DECAL

Case, on boom (Late production)

2шт.

6

321-917

DECAL

dipper and bucket, twin lever console (310G only)

1шт.

7

321-918

DECAL

boom and swing, twin lever console (310G only)

1шт.

8

321-919

DECAL

stabilizer, twin lever console (310G only)

1шт.

9

321-921

DECAL

control, individual lever console (310G only)

1шт.

10

A19314

control console (450 only), decal

1шт.

11

168-68

drive (#6 - 3/8"), decal

3шт.
