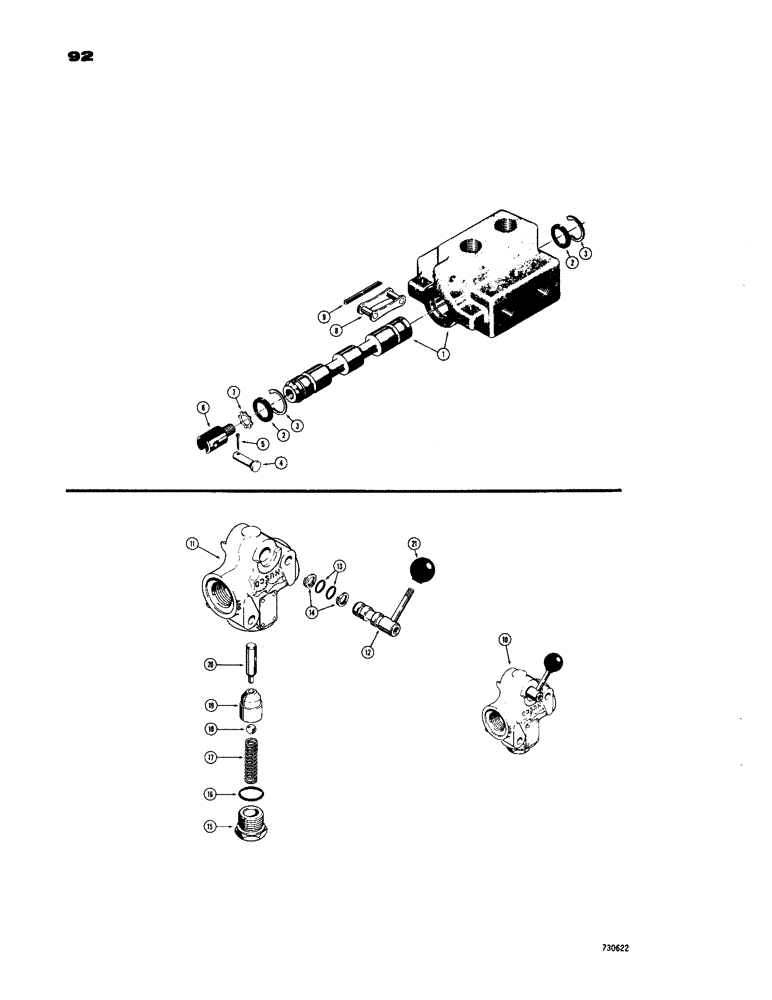

Запчасти Case 33 (092) - D45399 DIVERSION VALVE

D45399

LOCK VALVE

VALVE - diversion, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set

1шт.

2

D23691

O-RING

SEAL - quad ring, spool

2шт.

3

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

4

D23693

AXLE PIN

PIN - clevis

1шт.

5

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

6

D23694

ADAPTER

YOKE - control rod

1шт.

7

D23695

WASHER

- lock

1шт.

8

D23698

HANDLE

LINK - valve

1шт.

9

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.

D49932

VALVE, CHECK

VALVE ASSEMBLY - boom lockout, complete (When stock is exhausted, order L51101 valve for service), Includes: Ref. 11 - 20

1шт.

10

D51101

EDGE, CUTTING

VALVE ASSEMBLY - boom lockout, complete, Includes: Ref. 11 - 20

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - valve, boom lockout valve

1шт.

12

L33860

HANDLE

AND CAM ASSEMBLY - valve, boom lockout

1шт.

If either L33860 Assembly or L33861 follower fails, both must be ordered for service.

1шт.

13

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

SEAL - "O" ring, cam, boom lockout valve

2шт.

14

D51535

RING

- backup, cam, boom lockout valve

2шт.

15

D51536

PLUG - check valve, boom lockout

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - check plug, boom lockout valve

1шт.

17

D51537

VALVE SPRING

SPRING - check valve, boom lockout

1шт.

18

211-102

BALL,1/2" Dia

- check valve, boom lockout

1шт.

19

D51538

SPOOL

POPPET - check valve, boom lockout

1шт.

20

L33861

AXLE PIN

FOLLOWER - cam, boom lockout

1шт.

If either L33860 Assembly or L33861 follower fails, both must be ordered for service.

1шт.

21

L16708

KNOB

- valve handle, boom lockout

1шт.
