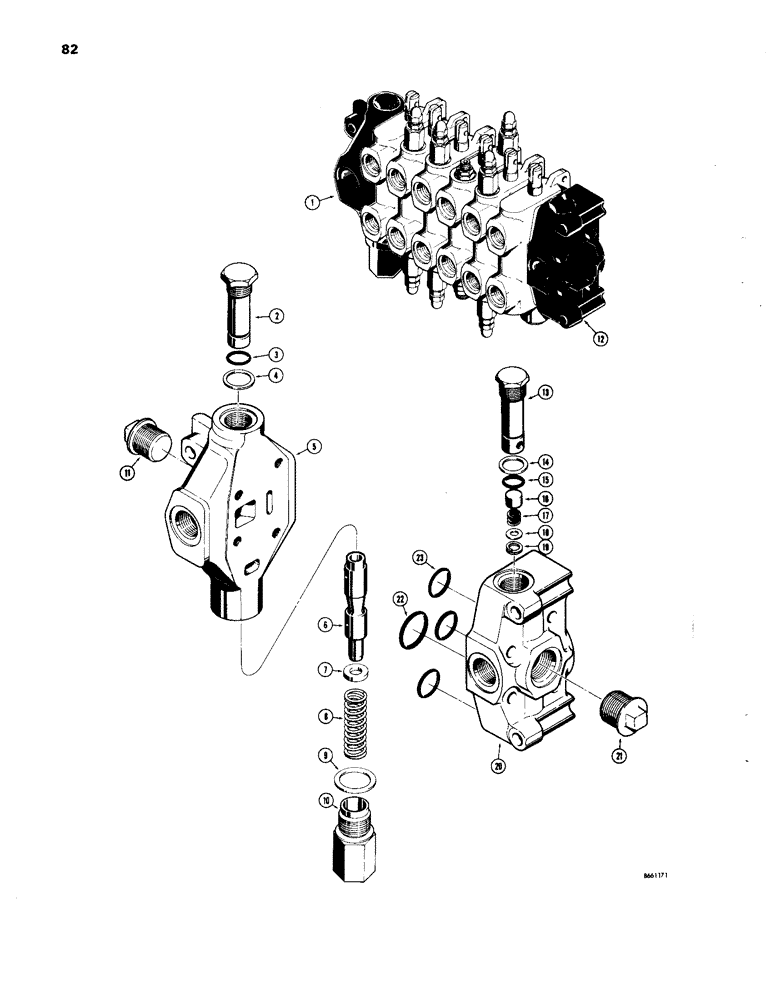

Запчасти Case 33 (082) - D37146 BACKHOE OUTLET SECTION

1

D37146

KNIFE SECTION

OUTLET - backhoe control valve, Includes: Ref. 2 - 11

1шт.

D36806

PLUG

ASSEMBLY - outlet section, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - outlet section

1шт.

3

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL

1шт.

4

D30681

GASKET

plug

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - outlet section

1шт.

6

D36599

regeneration

1шт.

7

D36807

SPACER

spool

1шт.

8

D40815

VALVE SPRING

spool

1шт.

9

D36808

GASKET

cap

1шт.

10

D36805

outlet section

1шт.

11

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

1шт.

12

D37349

KNIFE SECTION

INLET SECTION - backhoe control valve, Includes: Ref. 13 - 23

1шт.

D31416

LOCK VALVE

ASSEMBLY - check, D37349 backhoe inlet section, Includes: Ref. 13 - 19

1шт.

13

D31417

CARTRIDGE

check valve, D37349 backhoe inlet section

1шт.

14

D30681

GASKET

cartridge, D37349 backhoe inlet section

1шт.

15

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL -D37349 backhoe inlet section

1шт.

16

D31418

VALVE POPPET

check, D37349 backhoe inlet section

1шт.

17

D31419

SPRING

check, D37349 backhoe inlet section

1шт.

18

D31420

RING

RETAINER - spring, D37349 backhoe inlet section

1шт.

19

D26858

RING, SNAP

spirolox, D37349 backhoe inlet section

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - inlet section, D37349 backhoe inlet section

1шт.

21

221-664

PLUG,Hex Hd, 1/2"-14

pipe, square head (1/2" NPT), D37349 backhoe inlet section

1шт.

22

905952R1

COTTER PIN,M3.2 x 50

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D., D37349 backhoe inlet section

1шт.

23

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

SEAL - , 1-5/16" I.D. x 1-1/2" O.D., D37349 backhoe inlet section

3шт.
