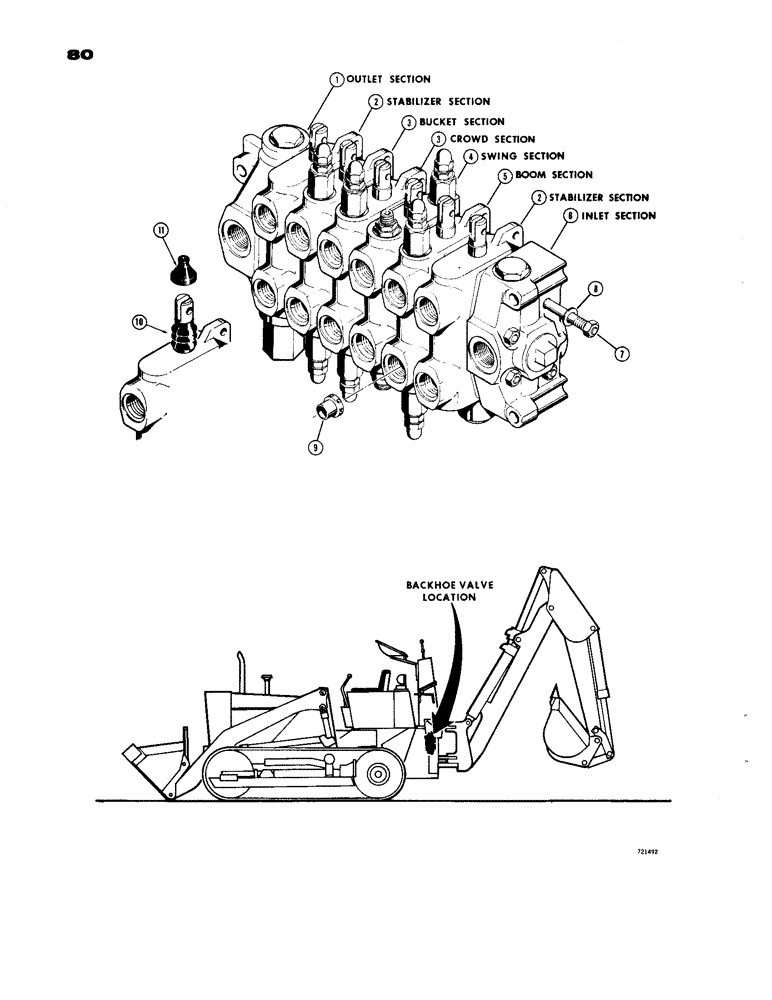

Запчасти Case 33 (080) - D39047 AND D51303 BACKHOE CONTROL VALVES

D39047

VALVE

- backhoe control (Used before Backhoe SN 4176351), Includes: Ref. 1 - 8

1шт.

D51303

VALVE

- backhoe control (Used on Backhoe SN 4176351 and after), Includes: Ref. 1 - 8

1шт.

1

D37146

KNIFE SECTION

OUTLET SECTION - backhoe control valve (Parts list Figure 82)

1шт.

2

D26842

ELEMENT

STABILIZER SECTION - backhoe control valve (Parts list Figure 84)

2шт.

3

D40750

SECTOR

BUCKET AND CROWD SECTION - backhoe control valve (Parts list Figure 86)

2шт.

4

D40749

SECTOR

SWING SECTION - backhoe control valve (Parts list Figure 88)

1шт.

5

D40748

SECTOR

BOOM SECTION - backhoe control valve (Parts list Figure 90) Used with D39047 control valve only

1шт.

5

D51508

ELEMENT

BOOM SECTION - backhoe control valve (Parts list Figure 90) Used with D51303 control valve only

1шт.

6

D37349

KNIFE SECTION

INLET SECTION - backhoe control valve (Parts list Figure 82)

1шт.

7

D26846

STUD

ASSEMBLY - backhoe control valve

4шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

9

D27565

VALVE

RESTRICTOR - boom drop, D40748 boom section only

1шт.

10

D42631

BELLOWS

- valve spool, service option

6шт.

11

D52811

SHIELD

- spool bellows

6шт.
