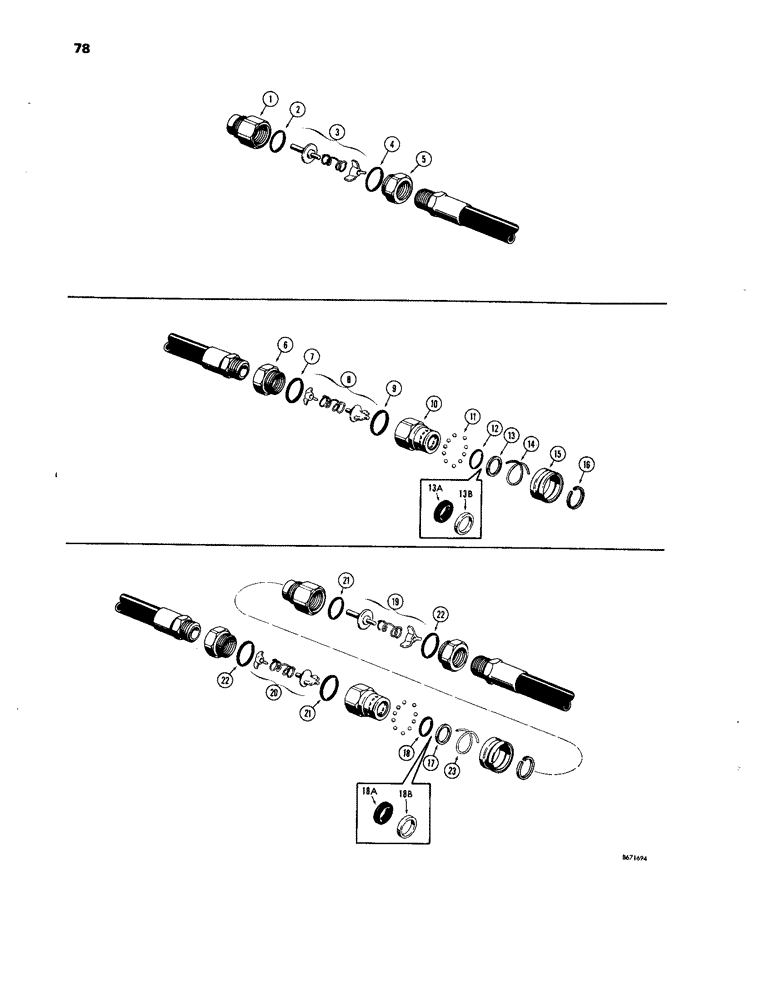

Запчасти Case 33 (078) - HYDRAULIC COUPLINGS, D31617 HYDRUALIC COUPLING

D31617

COUPLING, BREAK AWAY

male (Snap-Tite), Includes: Ref. 1 - 5

1шт.

1

D31971

BODY

male coupling

1шт.

2

D31984

SEAL

valve

1шт.

3

D35658

VALVE

ASSEMBLY - male coupling

1шт.

4

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

fitting

1шт.

5

D31975

FITTING

end

1шт.

D31618

COUPLING, BREAK AWAY

female (Snap-Tite), hyd coupling, Includes: Ref. 6 - 12

1шт.

6

D31975

FITTING

end, D31618 hyd coupling

1шт.

7

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

fitting, D31618 hyd coupling

1шт.

8

D35659

LOCK VALVE

ASSEMBLY - female coupling, D31618 hyd

1шт.

9

D31984

SEAL

valve, D31618 hyd coupling

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - female coupling, D31618 hyd

1шт.

11

D31982

KIT

BALL - includes 10 balls, D31618 hyd

1шт.

12

D31983

O-RING

SEAL - internal (When stock is exhausted, order D42469 kit for service), D31618 hyd coupling

1шт.

13

D31978

RING

- backup (When stock is exhausted order D42469 kit for service), D31618 hyd coupling

1шт.

D42469

SEAL

KIT - D31618 hyd coupling, Includes: Ref. 13A and 13B

1шт.

13a

NSS

NOT SOLD SEPARAT

SEAL - double "O" ring, internal, D31618 hyd coupling

1шт.

13b

NSS

NOT SOLD SEPARAT

RING - backup, D31618 hyd coupling

1шт.

14

D31979

VALVE SPRING

sleeve, D31618 hyd coupling

1шт.

15

D31980

SLEEVE CYLINDER

ball retaining, D31618 hyd coupling

1шт.

16

D31981

RING

retaining, D31618 hyd coupling

1шт.

D31456

KIT

D21456 for hyd coupling, Includes: Ref. 17 - 23

1шт.

17

D31978

RING

backup (When stock is exhausted, order D42469 ), D21456 service kit for hyd coupling

1шт.

18

D31983

O-RING

SEAL - internal (When stock is exhausted, order D42469), D21456 service kit for hyd coupling

1шт.

D42469

SEAL

KIT - D21456 service kit for hyd coupling, Includes: Ref. 18A and 18B

1шт.

18a

NSS

NOT SOLD SEPARAT

SEAL - double "O" ring, internal, D21456 service kit for hyd coupling

1шт.

18b

NSS

NOT SOLD SEPARAT

RING - backup, D21456 service kit for hyd coupling

1шт.

19

D35658

VALVE

ASSEMBLY - male g, D21456 service kit for hyd coupling

1шт.

20

D35659

LOCK VALVE

ASSEMBLY - female coupling, D21456 service kit for hyd coupling

1шт.

21

D31984

SEAL

valve, D21456 service kit for hyd coupling

2шт.

22

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

fitting, D21456 service kit for hyd coupling

2шт.

23

D31979

VALVE SPRING

sleeve, D21456 service kit for hyd coupling

1шт.
