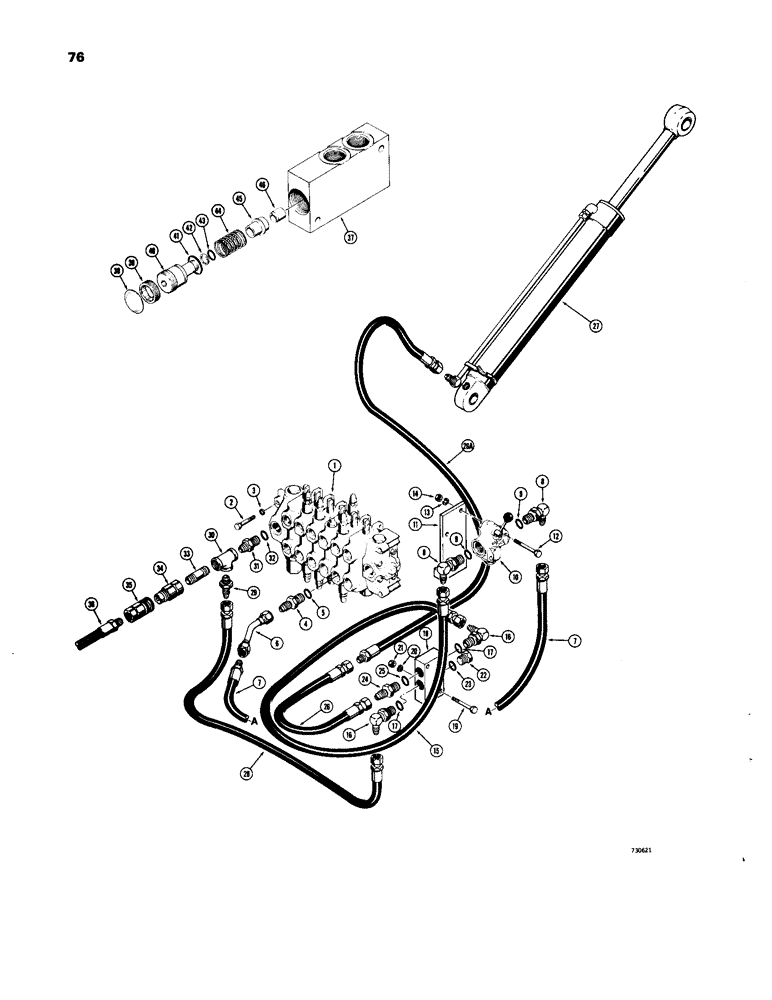

Запчасти Case 33 (076) - BOOM LOCKOUT HYDRAULICS

1

REF

INSTRUCTION

VALVE - backhoe control (See Figure 80 for proper valve)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

D49934

TUBE - backhoe control valve to lockout valve, boom section lowe port

1шт.

7

D49939

HOSE

- backhoe control valve to lockout valve (29" long)

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male, Incl. Ref. 9 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

REF

INSTRUCTION

VALVE - boom lockout (Parts list Figure 92)

1шт.

11

D50772

BRACKET - mounting, lockout valve, Serial Range: (Welded-frame)

1шт.

12

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

2шт.

13

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

15

D49937

SLEEVE

HOSE - lockout valve to relief valve (50" long)

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male, Incl. Ref. 17 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

18

D46850

VALVE

- relief, hydraulic (Parts list below)

1шт.

19

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC X 2-3/4"

2шт.

20

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

22

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Relief valve, Includes: Ref. 23 Hex Hd, 1 1/16"-12 ORB

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

24

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

26

CASD50373

HOSE

- relief valve to boom cylinder, rod end (23" long) at relief valve

1шт.

26a

D38124

HOSE

- relief valve to boom cylinder (57" long) at cylinder

1шт.

27

REF

INSTRUCTION

CYLINDER - hydraulic, boom (See Figures 112 thru 120 for proper cylinder)

1шт.

28

D49938

HOSE

- relief valve to return tee (34" long)

1шт.

29

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, straight (Hose to tee)

1шт.

30

221-425

FITTING,3/4" NPT

TEE - pipe, female () 3/4" NPT

1шт.

31

D37325

ADAPTER

CONNECTOR - male, straight (At valve), Includes: Ref. 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

33

221-212

NIPPLE, LUBE

NIPPLE - pipe (3/4" NPT x 1-1/2")

1шт.

34

D31617

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male (Parts list Figure 78)

1шт.

35

D31618

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female (Parts list on Figure 78)

1шт.

36

D49118

HOSE

- return, 33" long (33 Backhoe)

1шт.

D46850

VALVE

- relief (Parker no. VPRD5X-1A-310), Includes: Ref. 37 - 46

1шт.

37

NSS

NOT SOLD SEPARAT

BODY - valve, D46850 relief

1шт.

38

41-20

PLUG,Exp, 1 1/4"

- welch, 1-1/4", D46850 relief valve

1шт.

39

NSS

NOT SOLD SEPARAT

NUT - lock, special, D46850 relief valve

1шт.

40

NSS

NOT SOLD SEPARAT

GUIDE - spring, D46850 relief valve

1шт.

41

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O" ring, large, D46850 relief valve

1шт.

42

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

- backup, D46850 relief valve

1шт.

43

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

SEAL - "O" ring, small, D46850 relief valve

1шт.

44

NSS

NOT SOLD SEPARAT

SPRING - poppet, D46850 relief valve

1шт.

45

NSS

NOT SOLD SEPARAT

POPPET, D46850 relief valve

1шт.

46

NSS

NOT SOLD SEPARAT

SEAT - poppet, D46850 relief valve

1шт.
