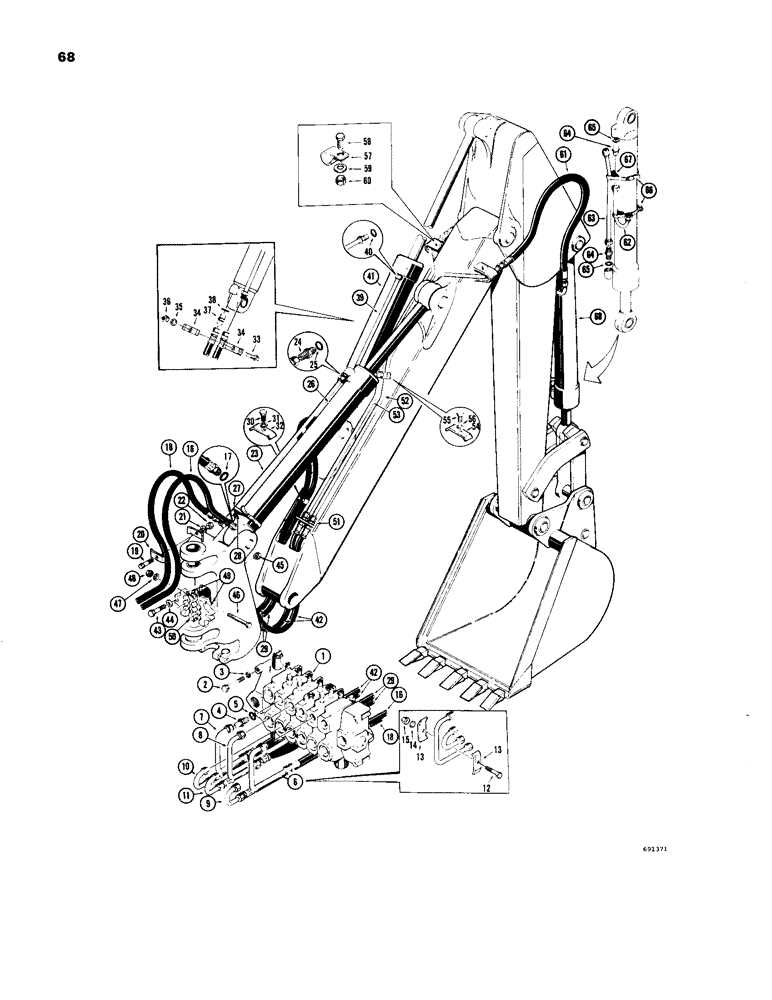

Запчасти Case 33 (068) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS, (USED ON BACKHOE SN 4141636-4157852)

1

REF

INSTRUCTION

VALVE - backhoe control (See Figure 80 for proper valve)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 5

6шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

D36654

TUBE

- upper valve port to boom cylinder

1шт.

7

D40709

TUBE

- upper valve port to bucket cylinder

1шт.

8

D40713

- upper valve port to crowd cylinder

1шт.

9

D30771

TUBE

- lower valve port to boom cylinder

1шт.

10

D40711

TUBE

- lower valve port to bucket cylinder

1шт.

11

D40715

TUBE

- lower valve port to crowd cylinder

1шт.

12

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

13

D20045

PLATE ASSY.

CLAMP - tube

6шт.

14

195-21

WASHER,5/16"

- plain () 5/16"

3шт.

15

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

3шт.

16

D38626

HOSE ASSY.

HOSE - to boom cylinder, closed end (58-1/2" long) For service use D38124 hose and 218-5065 connector, Includes: Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

18

D38124

HOSE

- lower valve port to boom cylinder, rod end (57" long)

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

20

R15257

CLAMP

- hose

2шт.

21

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

22

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

1шт.

23

D37232

BOOM

TUBE - to boom cylinder, rod end

1шт.

24

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

REF

INSTRUCTION

CYLINDER - hyd. boom (Parts list Figures 112 thru 120)

1шт.

27

REF

INSTRUCTION

CLAMP -, Serial Range: tube-cylinder

1шт.

28

D38648

BLOCK

SPACER - clamp

1шт.

29

D42634

HOSE

- valve to crowd cylinder (72-1/2" long)

2шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

31

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

32

D40236

CLAMP

- hose

1шт.

33

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

D33316

CLAMP

- tube

2шт.

35

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

36

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

37

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

D42624

TUBE

- to crowd cylinder, rod end, Includes: Ref. 40

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

41

REF

INSTRUCTION

CYLINDER - hyd. crowd (Parts list pages 123 thru 127)

1шт.

42

D39358

HOSE ASSY.

HOSE - valve to bucket cylinder (54" long)

2шт.

43

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

44

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

45

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

46

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS - 5/16" - 18 NC x 3-1/2"

2шт.

47

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

48

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

49

D26125

CLAMP

- hose, outer

2шт.

50

D26124

HOSE

CLAMP - hose, center

1шт.

51

D26231

NUT

- hex., lock (Special)

2шт.

52

D40632

TUBE

- valve to bucket cylinder, closed end

1шт.

53

D40630

TUBE

- valve to bucket cylinder, rod end

1шт.

54

D40236

CLAMP

- tube

1шт.

55

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

56

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

57

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

2шт.

58

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

59

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

60

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

61

D42290

HOSE

- valve to bucket cylinder (40" long)

2шт.

62

D40655

TUBE

- valve to bucket cylinder, closed end

1шт.

63

D40647

TUBE

- valve to bucket cylinder, rod end

1шт.

64

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 65

2шт.

65

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

66

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

2шт.

67

D38648

BLOCK

SPACER - clamp

2шт.

68

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (See Figures 128 thru 134 for proper cylinder)

1шт.
