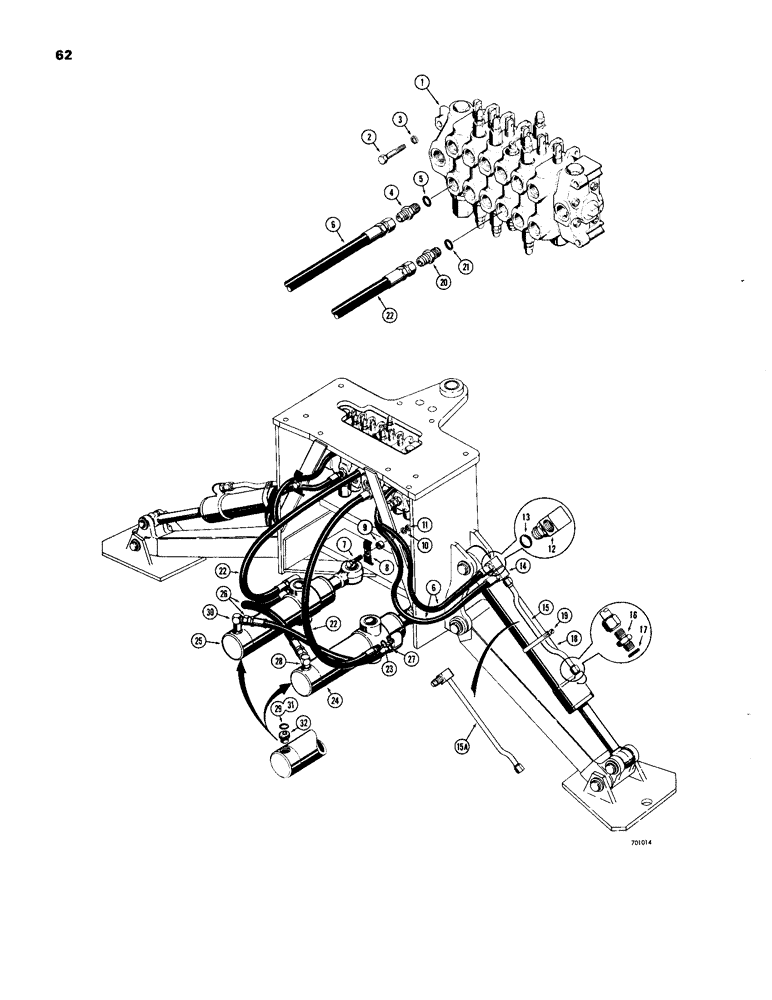

Запчасти Case 33 (062) - SWING AND STABILIZER CYLINDER HYDRUALICS, *(LATE PRODUCTION)

1

REF

INSTRUCTION

VALVE - backhoe control (See Figure 80 for proper valve)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC X 3-3/4'

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

male, straight (D40809 hose), stabilizer cyl hyds, Includes: Ref. 5

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - stabilizer cyl hyds

1шт.

6

D40809

HOSE

valve to stabilizer cylinders (33-1/2" long)

4шт.

6

D49536

HOSE

valve to stabilizer cylinders (34-1/2" long), Includes: Ref. 6A

4шт.

6a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - , D49536 hose (Not shown), stabilizer cyl hyds

1шт.

7

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Stabilizer cyl hyds Hex, 5/16"-18 x 2 1/4", G5

2шт.

8

D33316

CLAMP

hose, stabilizer cyl hyds

2шт.

9

D33829

BUSHING

SPACER - clamp, stabilizer cyl hyds

2шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

standard wrot (5/16"), stabilizer cyl hyds

2шт.

11

131-4

LOCK NUT,5/16"-18, GB

hex., lock (5/16" - 18 NC)

2шт.

12

D23974

ELBOW

adjustable, 90 degree (D40809 hose), stabilizer cyl hyds, Includes: Ref. 13

2шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

adjustable, 90 degree (D49536 hose), stabilizer cyl hyds, Incl. Ref. 13

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - , D23974 and 218-5107 elbows, stabilizer cyl hyds

1шт.

14

D26361

FITTING

ELBOW - female, 90 degree (D40810 tubes only), stabilizer cyl hyds

2шт.

15

D40810

TUBE

valve to stabilizer cylinder, rod end (Without 90 degree elbow)

2шт.

15a

D49535

TUBE

valve to R.H. stabilizer cylinder, rod end (With brazed 90 degree elbow)

1шт.

15a

D49534

TUBE

valve to L.H. stabilizer cylinder, rod end (With brazed 90 degree elbow)

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

male, straight, Includes: Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - stabilizer cyl hyds

1шт.

18

REF

INSTRUCTION

CYLINDER - hydraulic, stabilizer (See Figures 96 thru 100 for proper cylinder)

2шт.

19

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

stabilizer cyl hyds, hose

2шт.

20

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

male, straight, swing cyl hyds, Includes: Ref. 21

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - swing cyl hyds

1шт.

22

D37219

HOSE

valve to (30" long), swing cyl hyds

2шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - swing cyl hyds

1шт.

24

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. swing (See Figures 102 thru 108 for proper cylinder)

1шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. swing (See Figures 102 thru 108 for proper cylinder)

1шт.

26

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

crossover, swing cylinders (23-1/2" long), Includes: Ref. 27

2шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - swing cyl hyds

1шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree (R.H. swing cylinder), Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - swing cyl hyds

1шт.

30

D36934

FITTING

ELBOW - adjustable, 90 degree (L.H. swing cylinder), Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - swing cyl hyds

1шт.

32

D41462

FITTING

RESTRICTOR - flow control, swing cyl hyds

2шт.
