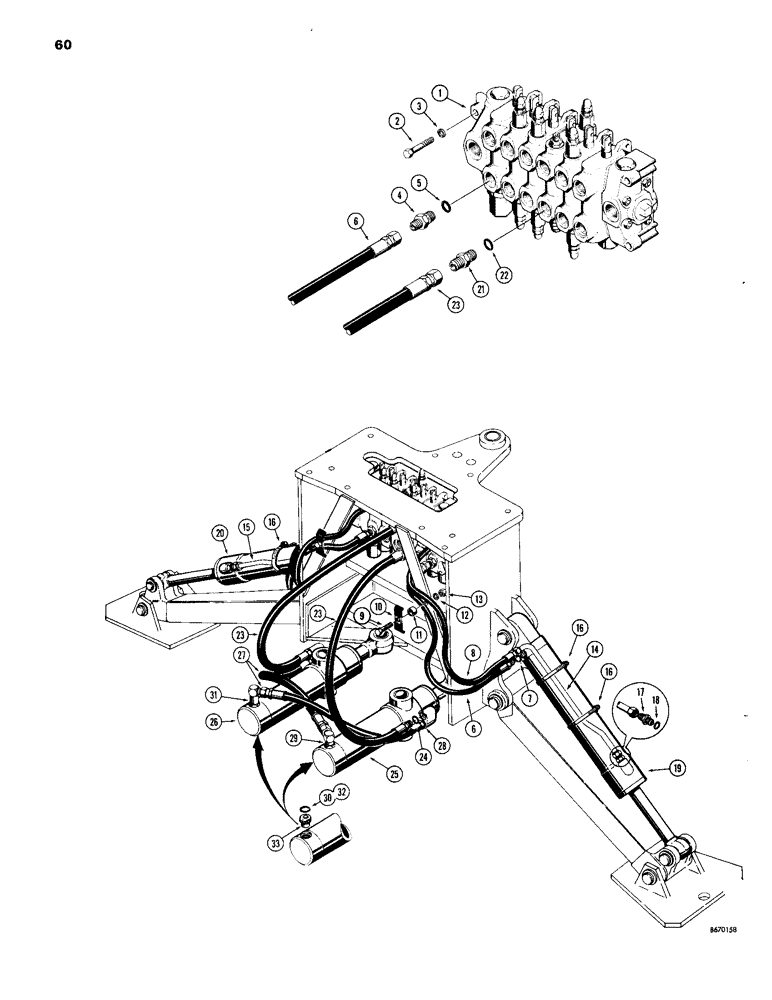

Запчасти Case 33 (060) - SWING AND STABILIZER CYLINDER HYDRAULICS, (EARLY PRODUCTION)

1

REF

INSTRUCTION

VALVE - backhoe control (See Figure 80 for proper valve)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

218-5080

ADAPTER

CONNECTOR - straight male, stabilizer cyl hyds, Includes: Ref. 5

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL , stabilizer cyl hyds

1шт.

6

D37221

HOSE ASSY.

valve to stabilizer cylinders, closed end (32-1/2" long), Includes: Ref. 7

2шт.

7

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL -, stabilizer cyl hyds

1шт.

8

D38657

HOSE ASSY.

valve to stabilizer cylinders, rod end (29-1/8" long)

2шт.

9

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Stabilizer cyl hyds Hex, 5/16"-18 x 2 1/4", G5

2шт.

10

D33316

CLAMP

hose, stabilizer cyl hyds

2шт.

11

D33829

BUSHING

SPACER - clamp, stabilizer cyl hyds

2шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

standard wrot (5/16"), stabilizer cyl hyds

2шт.

13

131-4

LOCK NUT,5/16"-18, GB

hex., lock (5/16" - 18 NC), stabilizer cyl hyds

2шт.

14

D38653

TUBE

valve to R.H. stabilizer cylinder, rod end

1шт.

15

D38654

KNOB

TUBE - valve to L.H. stabilizer cylinder, rod end

1шт.

16

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

tube to cylinder, stabilizer hyds

4шт.

17

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, stabilizer cyl hyds, Incl. Ref 18 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL , stabilizer cyl hyds

1шт.

19

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. stabilizer (See Figure 96 thru 100 for proper cylinder)

1шт.

20

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. stabilizer (See Figures 96 thru 100 for proper cylinder)

1шт.

21

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

straight male, swing cyl hyds, Includes: Ref. 22

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - swing cyl hyds

1шт.

23

D37219

HOSE

valve to swing cylinders (30" long), swing cyl hyds, Includes: Ref. 24

2шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - swing cyl hyds

1шт.

25

REF

INSTRUCTION

R.H. (See Figures 102 thru 108 for proper cylinder), swing cyl hyds

1шт.

26

REF

INSTRUCTION

L.H.(See Figures 102 thru 108 for proper cylinder), swing cyl hyds

1шт.

27

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

crossover, swing cylinders (23-1/2" long), Includes: Ref. 28

2шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - swing cyl hyds

1шт.

29

D25667

ELBOW

adjustable, 90 degree (R.H. swing cylinder), Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - swing cyl hyds

1шт.

31

D36934

FITTING

ELBOW - adjustable, 90 degree (L.H. swing cylinder), Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - swing cyl hyds

1шт.

33

D41462

FITTING

RESTRICTOR - flow control, swing cyl hyds

2шт.
