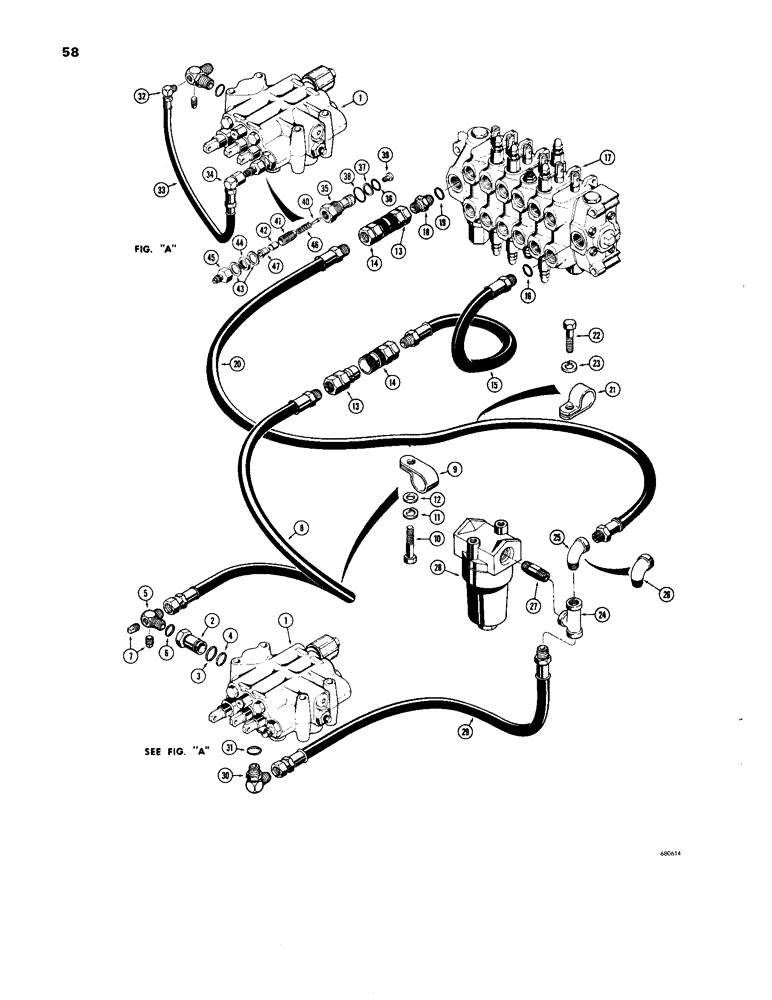

Запчасти Case 33 (058) - BASIC BACKHOE HYDRAULICS

1

REF

INSTRUCTION

VALVE - control, equipment (See Model 450 Crawler Parts Catalog for breakdown)

1шт.

2

D35401

FITTING

carryover, Includes: Ref. 3 and 4

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - (Large)

1шт.

4

L32680

RING

SEAL - (Small)

1шт.

5

D35472

FITTING

ELBOW - special, Includes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

pipe, square hd. (1/4" NPT)

2шт.

8

D38432

HOSE

equipment valve to backhoe valve (34" long)

1шт.

9

D34163

CLAMP

hose

1шт.

10

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

1шт.

11

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

12

95-8

WASHER,1/2"

standard wrot 1/2"

1шт.

13

D31617

COUPLING, BREAK AWAY

quick disconnect, male (parts list Figure 78)

1шт.

14

D31618

COUPLING, BREAK AWAY

quick disconnect, female (parts list Figure 78)

1шт.

15

D38431

HOSE

equipment valve to backhoe valve (38" long), Includes: Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

17

REF

INSTRUCTION

VALVE - backhoe control (See Figure 80 for proper valve)

1шт.

18

D37325

ADAPTER

special, Includes: Ref. 19

1шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

20

D38433

HOSE

backhoe valve to reservoir (62" long)

1шт.

21

D34163

CLAMP

hose

1шт.

22

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

1шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

221-426

FITTING,1" NPT

TEE - connecting

1шт.

25

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

ELBOW - 90 degree (Used on models without return-to-dig-feature)

1шт.

26

221-406

FITTING,90 Degree, 1"-11 1/2, NPT

ELBOW - 45 degree (Used on models with return-to-dig feature)

1шт.

27

221-239

SUN VISOR,Nipple, 1" NPT x 2"

NIPPLE - straight (Use on models with return-to-dig feature)

1шт.

221-370

ELBOW

NIPPLE - straight (Used on models without return-to-dig feature)

1шт.

28

D43567

FILTER ASSY

return line (See 450 Crawler part catalogs for breakdown)

1шт.

29

D35045

LARGE HOSE

equipment control valve to resevoir (22" long)

1шт.

30

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes Ref. 31 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL

1шт.

32

R14868

X

ELBOW - special, used on dozer backhoe models only

1шт.

33

D37189

HOSE

pressure line to dual main relief valve, used on dozer backhoe models only

1шт.

34

D35678

X

ELBOW - special, used on dozer backhoe models only

1шт.

D38570

VALVE

dual main relief, used on dozer backhoe models only, Includes: Ref. 35 - 47

1шт.

35

D37045

CAP

BODY - valve, used on dozer backhoe models only

1шт.

36

L30444

O-RING,0.521" ID x 0.661" OD

SEAL - small, used on dozer backhoe models only

1шт.

37

L30443

BACK-UP RING,0.547" ID x 0.049" Width

backup, used on dozer backhoe models only

1шт.

39

D26266

SEAT

pilot, used on dozer backhoe models only

1шт.

40

D26267

PLUNGER

pilot, used on dozer backhoe models only

1шт.

41

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

adjusting, used on dozer backhoe models only

1шт.

42

D27261

PISTON

relief valve, used on dozer backhoe models only

1шт.

43

D27259

SEAL

special, used on dozer backhoe models only

2шт.

44

86637932

JAM NUT,Jam, 5/8"-18, G5

hex., jam (5/8" - 18 NF), used on dozer backhoe models only

1шт.

45

D27260

FITTING

pilot, used on dozer backhoe models only

1шт.

46

D37043

pilot (Used with D41525 retainer only), used on dozer backhoe models only

1шт.

D26268

SPRING

pilot (Used with D41764 retainer only), used on dozer backhoe models only

1шт.

47

D41525

RETAINER - piston, early production (Code number "2"), used on dozer backhoe models only

1шт.

D41764

piston, late production (Code number "3"), used on dozer backhoe models only

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - , large, used on dozer backhoe models only

1шт.
