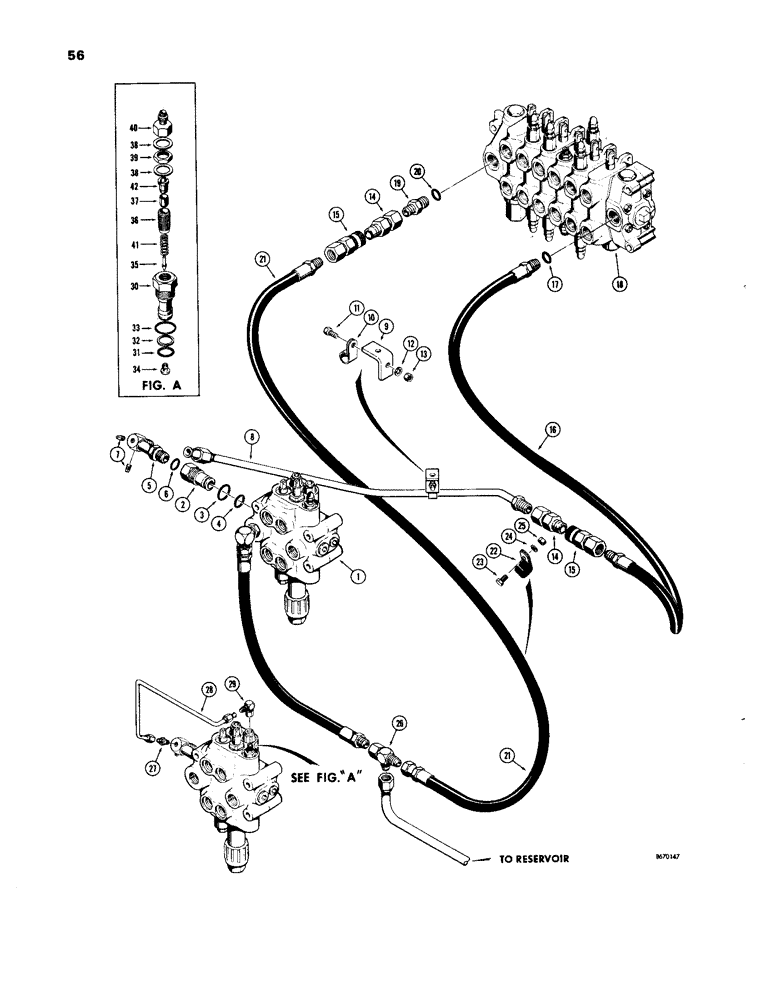

Запчасти Case 33 (056) - BASIC BACKHOE HYDRUALICS

1

REF

INSTRUCTION

VALVE - equipment control (See Model 310G Crawler Parts Catalog Serial No. 3032301 and after for breakdown)

1шт.

2

D35401

FITTING

carryover, Includes: Ref. 3 and 4

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.

4

L32680

RING

SEAL - "O" ring, small

1шт.

5

D35472

FITTING

ELBOW- special (Used with 3 spool valves only), Includes: Ref. 6

1шт.

D37824

ELBOW - special (Used with 2 spool valves only), Includes: Ref. 6

1шт.

D38646

ELBOW - special (used with 1 spool valves only), Includes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

pipe, square head (1/4" NPT)

2шт.

8

D39150

TUBE - pressure

1шт.

9

D38617

mounting, tube clamp

1шт.

10

R11405

CLAMP

tube

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

standard wrot (5/16")

1шт.

13

131-4

LOCK NUT,5/16"-18, GB

hex., lock (5/16" - 18 NC)

1шт.

14

D31617

COUPLING, BREAK AWAY

quick disconnect, male (Parts list Figure 78)

2шт.

15

D31618

COUPLING, BREAK AWAY

quick disconnect, female (Parts list Figure 78)

2шт.

16

D38618

at backhoe control valve, inlet port (32" long)

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

18

REF

INSTRUCTION

VALVE - backhoe control (See Figure 80 for proper valve)

1шт.

19

D37325

ADAPTER

special, Includes: Ref. 20

1шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

21

D38619

HOSE ASSY.

at backhoe control valve, outlet port (68" long)

1шт.

22

84183C1

CLAMP

- hose

1шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

1шт.

24

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

25

25-108

NUT,1/2"-13, G5

hex. (1/2" - 13 NC)

1шт.

26

D39149

TEE

special

1шт.

27

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, used on dozer backhoe models only

1шт.

28

D37822

special elbow to dual main relief (Early production), used on dozer backhoe models only

1шт.

28

D51749

special elbow to dual main relief (Late Production), used on dozer backhoe models only

1шт.

29

D35678

X

ELBOW - swivel, 90 degree, used on dozer backhoe models only

1шт.

D38570

VALVE

dual main relief, used on dozer backhoe models only, Includes: Ref. 30 - 42

1шт.

30

D37045

CAP

BODY - valve, used on dozer backhoe models only

1шт.

31

L30444

O-RING,0.521" ID x 0.661" OD

SEAL - used on dozer backhoe models only

1шт.

32

L30443

BACK-UP RING,0.547" ID x 0.049" Width

backup, used on dozer backhoe models only

1шт.

34

D26266

SEAT

pilot, used on dozer backhoe models only

1шт.

35

D26267

PLUNGER

pilot, used on dozer backhoe models only

1шт.

36

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

adjusting, used on dozer backhoe models only

1шт.

37

D27261

PISTON

relief valve, used on dozer backhoe models only

1шт.

38

D27259

SEAL

special, used on dozer backhoe models only

2шт.

39

86637932

JAM NUT,Jam, 5/8"-18, G5

hex., jam (5/8" - 18 NF), used on dozer backhoe models only

1шт.

40

D27260

FITTING

pilot, used on dozer backhoe models only

1шт.

41

D37043

pilot (Used with D41525 retainer only) See ref. no. 42, used on dozer backhoe models only

1шт.

D26268

SPRING

pilot (used with D41525 retainer only) See ref. no. 42, used on dozer backhoe models only

1шт.

42

D41525

RETAINER - piston, early production (Code number "2"), used on dozer backhoe models only

1шт.

D41764

piston, late production (Code number "3"), used on dozer backhoe models only

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - large, used on dozer backhoe models only

1шт.
