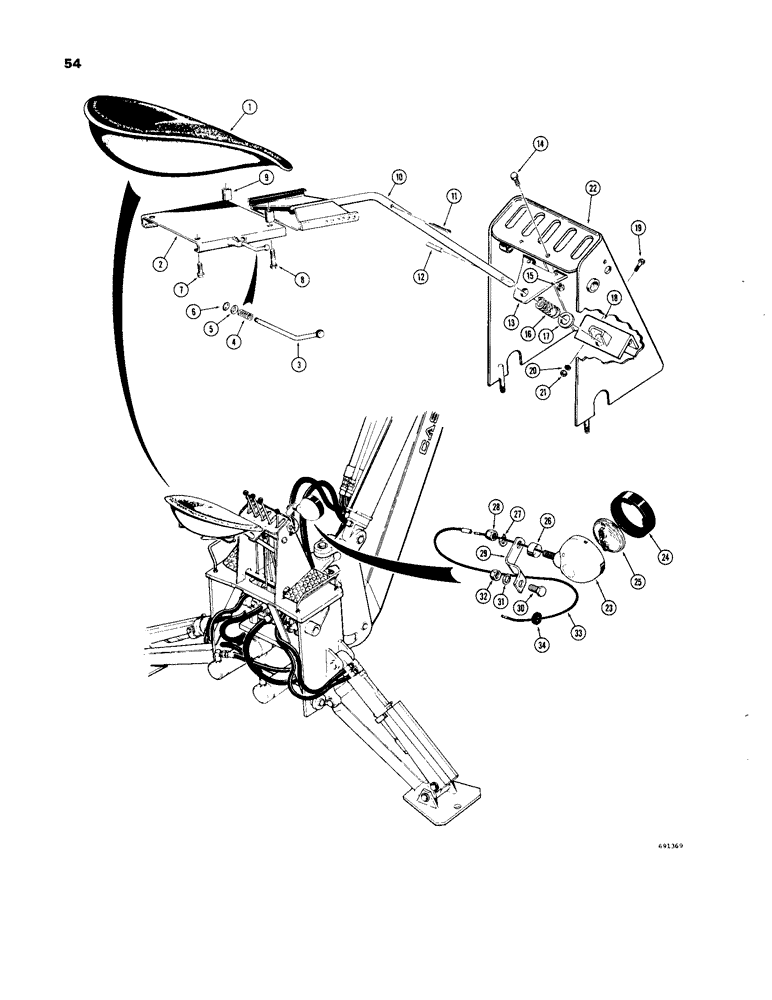

Запчасти Case 33 (054) - BACKHOE SEAT

D31309

SEAT

ASSEMBLY - backhoe, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT - padded

1шт.

2

D31308

ADJUSTER

SLIDE - seat, upper, Includes: Ref. 3 - 6

1шт.

3

D40765

LEVER

- seat adjusting

1шт.

4

D40766

SPRING

- lever

1шт.

5

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

6

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

1шт.

7

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

8

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

9

D31306

SPACER

- slide

2шт.

10

D32380

SEAT

ROD - seat support (Used before backhoe serial no. 4172713)

1шт.

10

D38329

ROD - seat support (used on backhoe serial no. 4172713 and after)

1шт.

11

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

12

138-207

LOCK PIN,1/2" x 2 1/4", Slotted

PIN, (D32380 rod only) 1/2" x 2 1/4", Slotted

1шт.

12

138-203

LOCK PIN,1/2" x 1 1/2", Slotted

Pin, (D38329 rod only) 1/2" x 1 1/2", Slotted

1шт.

13

D38322

PLATE

- seat mounting (Used before backhoe serial no. 4172713)

1шт.

13

D46418

PLATE - seat mounting (Used on backhoe serial no. 4172713 and after)

1шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

15

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC)

2шт.

16

D25773

SPRING

- rod

1шт.

17

B18275

WASHER

- spring retaining

1шт.

18

D38323

BRACKET - seat mounting (Used before backhoe serial no 4172713)

1шт.

18

D46416

BRACKET - seat mounting (used on backhoe serial no. 4172713 and after)

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(D38323 bracket only) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(D46416 bracket only) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

22

REF

INSTRUCTION

CONSOLE - backhoe control (See Figures 43, 45, 51 & 53)

1шт.

D34934

LAMP

LIGHT - tail, Includes: Ref. 23 - 34

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - light, tail

1шт.

24

A25213

RETAINER

- lamp, rubber, tail light

1шт.

25

A24572

LAMP

- sealed unit, tail light

1шт.

26

D37048

BUSHING

- pivot, tail light

1шт.

27

D37049

WASHER

- special, tail light

1шт.

28

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock, hex. (1/2" - 20 NF), tail light

1шт.

29

D30662

LINK

- light mounting, tail

1шт.

30

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Tail light Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

31

92-8

LOCK WASHER,1/2"

tail light 1/2"

1шт.

32

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), tail light

1шт.

33

G13223

WIRE - light, tail

1шт.

34

D37936

GROMMET

- wire, tail light

1шт.
