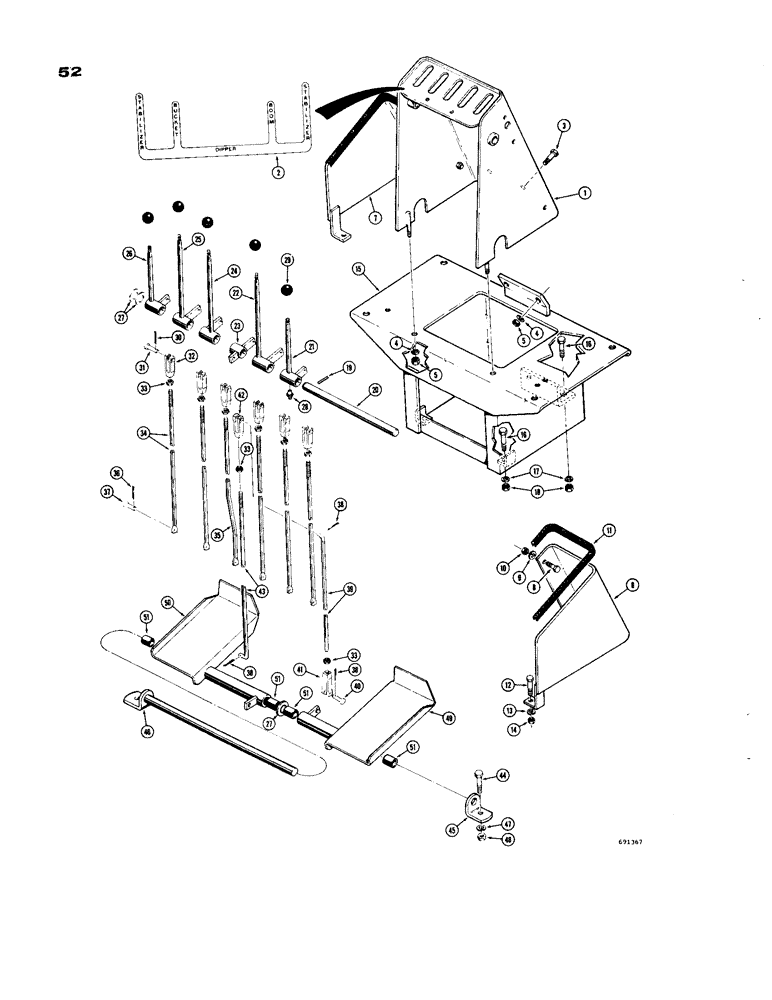

Запчасти Case 33 (052) - INDIVIDUAL LEVER BACKHOE CONTROL (FOOT SWING), TWO PIECE TOWER

1

D38311

BOOM

CONSOLE -backhoe control

1шт.

2

321-921

DECAL

- control console

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 3/4"

2шт.

4

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

6

D47222

GUARD - foot swing (R.H.)

1шт.

7

D47223

GUARD - foot swing (L.H.)

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), Includes: Ref. 11

4шт.

11

D47936

LINING

TRIM - Quickedge (24")

2шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

15

D47255

EXTENSION - tower

1шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

17

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

19

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

20

D30817

SHAFT

- control levers

1шт.

21

D48248

LEVER

- control, R.H. stabilizer

1шт.

22

D48109

LEVER

- control, boom

1шт.

23

D48252

ANCHOR

LEVER - pivot swing

1шт.

24

D48246

LEVER

- control, dipper

1шт.

25

D48108

LEVER

- control, bucket

1шт.

26

D48247

LEVER

- control, L.H. stabilizer

1шт.

27

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, steel (15/16")

1шт.

28

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - straight, grease (5/16" drive)

6шт.

29

70213

KNOB

- control lever

5шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

31

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

6шт.

32

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

6шт.

33

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

8шт.

34

D42585

ROD

- straight, connecting

5шт.

35

D42584

ROD

- bent, dipper control

1шт.

36

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

37

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke mounting 5/16" x .940"

6шт.

38

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

39

D21762

ROD

- "L" bend, connecting (R.H. swing control)

1шт.

40

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

1шт.

41

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

1шт.

42

D37600

YOKE

- connecting rod

1шт.

43

D30819

ROD

- "L" bend. connecting (L.H. swing control)

1шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 3/4"

2шт.

45

D37616

BRACKET - shaft

1шт.

46

D37618

SHAFT - swing pedals

1шт.

47

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

48

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

49

D47224

PEDAL

- swing, R.H.

1шт.

50

D47225

PEDAL - swing, L.H., Includes: Ref. 52

1шт.

52

D30706

BUSHING

- pedals (R.H. and L.H.)

2шт.
