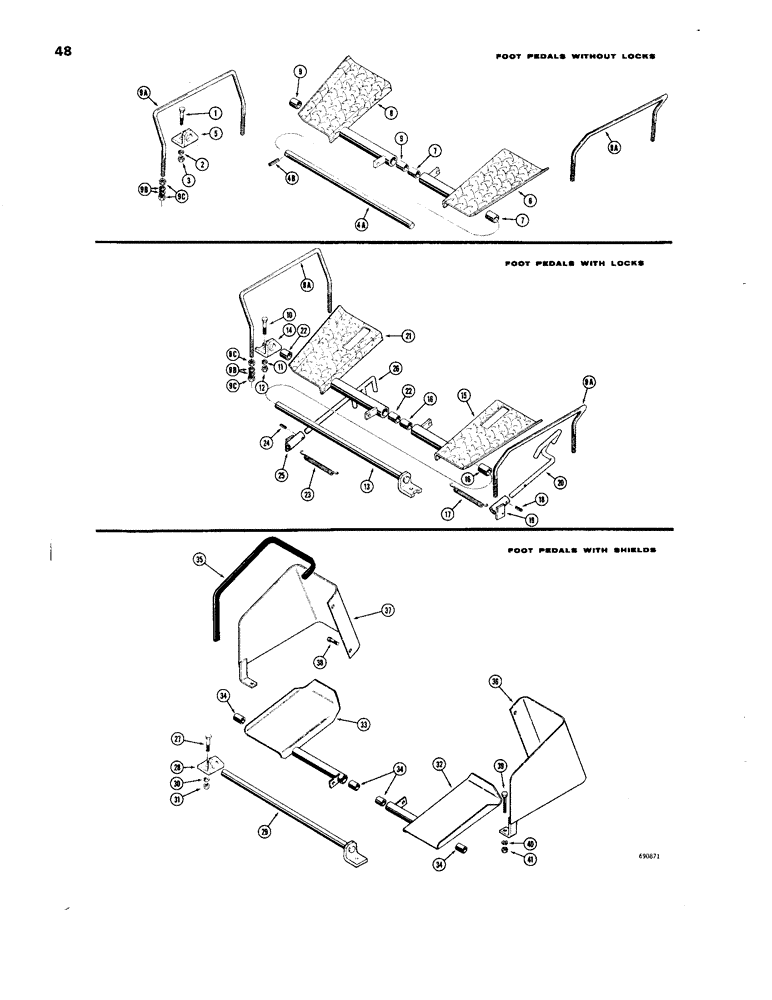

Запчасти Case 33 (048) - FOOT PEDALS, FOOT PEDALS WITHOUT LOCKS

1

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

2

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

3

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.

4

D40859

SHAFT

swing pedals

1шт.

5

D40858

shaft

1шт.

6

D30711

swing, R.H., Includes: Ref. 7

1шт.

7

D30706

BUSHING

pedal

2шт.

8

D30710

swing, L.H., Includes: Ref. 9

1шт.

9

D30706

BUSHING

pedal

2шт.

9a

D38562

swing pedals

2шт.

9b

25-108

NUT,1/2"-13, G5

hex. (1/2" - 13 NC)

8шт.

9c

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Foot pedals w/ locks Hex, 3/8"-16 x 2 1/4", G5

3шт.

11

92-6

LOCK WASHER,3/8"

foot pedals w/ locks 3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC), foot pedals w/ locks

3шт.

13

D40859

SHAFT

swing pedals, foot pedals w/ locks

1шт.

14

D42062

BRACKET - shaft, foot pedals w/ locks

1шт.

15

D40866

PEDAL

- swing, R.H., foot w/ locks, Includes: Ref. 16

1шт.

16

D30706

BUSHING

foot pedals w/ locks

2шт.

17

A37005

SPRING

locking pedal, foot pedals w/ locks

1шт.

18

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Foot pedals w/ locks 3/16" x 1", Slotted

1шт.

19

D40856

STOP - locking pedal, R.H., foot pedals w/ locks

1шт.

20

D40864

LOCK - swing pedal (R.H.), foot pedals w/ locks

1шт.

21

D40867

PEDAL

swing, L.H., foot pedals w/ locks, Includes: Ref. 22

1шт.

22

D30706

BUSHING

pedal, foot pedals w/ locks

2шт.

23

A37005

SPRING

locking pedal, foot pedals w/ locks

1шт.

24

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Foot pedals w/ locks 3/16" x 1", Slotted

1шт.

25

D40857

STOP - pedal, L.H., foot pedals w/

1шт.

26

D40865

LOCK - swing pedal (L.H.), foot w/ sheilds

1шт.

27

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Foot pedals w/ sheilds Hex, 1/2"-13 x 2", G5

2шт.

28

D40858

shaft, foot pedals w/ sheilds

1шт.

29

D40859

SHAFT

swing pedals, foot pedals w/ sheilds

1шт.

30

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

31

25-108

NUT,1/2"-13, G5

hex. (1/2" - 13 NC), foot pedals w/ sheilds

2шт.

32

D47224

PEDAL

swing, R.H., foot w/ sheilds

1шт.

33

D47225

swing, L.H., foot w/ sheilds, Includes: Ref. 34

1шт.

34

D30706

BUSHING

(2 to each pedal), foot pedals w/ sheilds

2шт.

35

D47936

LINING

TRIM - Quickedge (24" long), foot pedals w/ sheilds

2шт.

36

D47222

GUARD - swing pedal (R.H.), foot

1шт.

37

D47223

GUARD - swing pedal (L.H.), foot

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Foot pedals w/ sheilds Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

39

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 3/8" - 16 NC x 1-3/4", foot pedals w/ sheilds

2шт.

40

92-6

LOCK WASHER,3/8"

foot pedals w/ shields 3/8"

4шт.

41

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC), foot pedals w/ sheilds

4шт.
