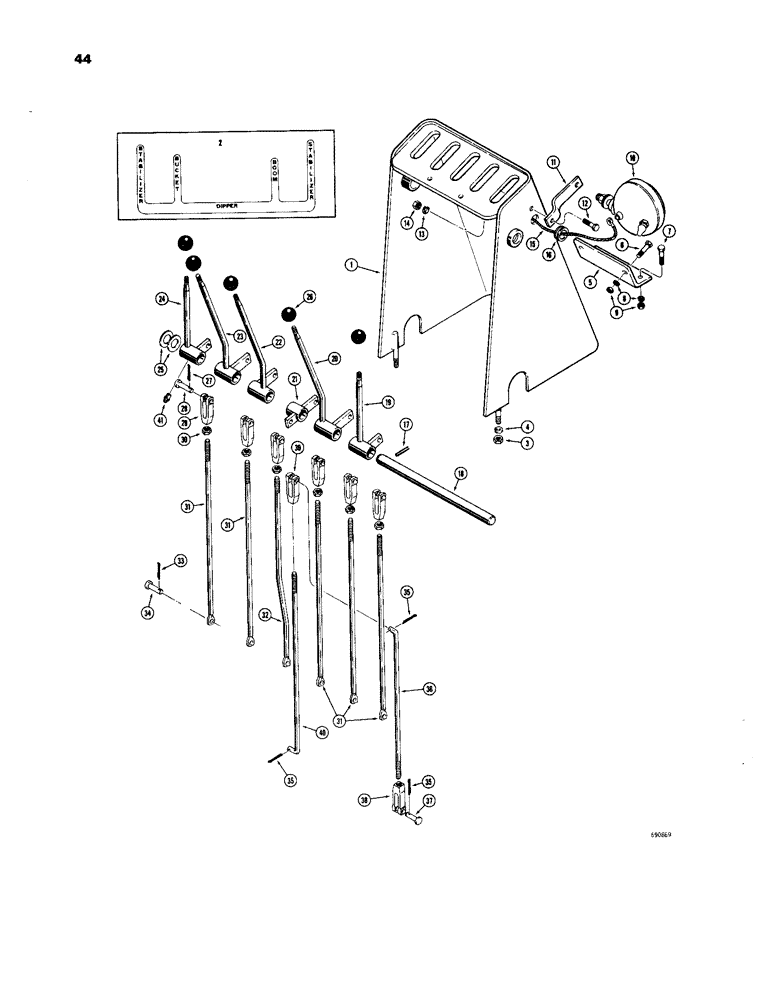

Запчасти Case 33 (044) - INDIVIDUAL LEVER BACKHOE CONTROL *(FOOT SWING)
№
Артикул
Название
Примечание
Количество
1
D38311
BOOM
CONSOLE - backhoe control (See page 55 for swing down seat arrangement)
1шт.
2
321-921
DECAL
- control console
1шт.
3
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
4
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
2шт.
5
D38292
COVER PLATE
BRACKET - console mounting
1шт.
6
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
7
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
8
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
4шт.
9
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
4шт.
10
D34934
LAMP
LIGHT - tail (Parts list Figure 54)
1шт.
11
NLS
NO LONGER SERVICED
- light mounting
1шт.
12
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
1шт.
13
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
1шт.
14
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
1шт.
15
D38477
ELECTRICAL WIRE
WIRE - light
1шт.
16
D37936
GROMMET
- wire
1шт.
17
138-98
LOCK PIN,3/16" x 1 1/4", Slotted
PIN, 3/16" x 1 1/4", Slotted
1шт.
18
D30817
SHAFT
- control levers
1шт.
19
D48248
LEVER
- control, R.H. stabilizer (3/8" - 24 NF threaded end)
1шт.
19
D49984
HANDLE
LEVER - control, R.H. stabilizer (1/2" - 20 NF threaded end)
1шт.
20
D48107
LEVER
- control, boom (Bent) 3/8" - 24 NF threaded end (Used with jump seat)
1шт.
20
D49986
HANDLE
LEVER - control, boom (Bent) 1/2" - 20 NF threaded end (Used with jump seat)
1шт.
20
D48109
LEVER
- control, boom (Straight) 3/8" - 24 NF threaded end (Used with swing down seat)
1шт.
20
D49994
HANDLE
LEVER - control, boom (Straight) 1/2" - 20 NF threaded end (Used with swing down seat)
1шт.
21
D48252
ANCHOR
LEVER - pivot, swing
1шт.
22
D48249
LEVER
- control, dipper (Bent) 3/8" - 24 NF threaded end (Used with jump seat)
1шт.
22
D49988
HANDLE
LEVER - control, dipper (Bent) 1/2" - 20 NF threaded end (Used with jump seat)
1шт.
22
D48246
LEVER
- control, dipper (Straight) 3/8" - 24 NF threaded end (Used with swing down seat)
1шт.
22
D49995
HANDLE
LEVER - control, dipper (straight) 1/2" - 20 NF threaded end (Used with swing down seat)
1шт.
23
D48106
LEVER
- control, bucket (Bent) 3/8" - 24 NF threaded end (Used with jump seat)
1шт.
23
D49987
HANDLE
LEVER - control, bucket (Bent) 1/2" - 20 NF threaded end (Used with jump seat)
1шт.
23
D48108
LEVER
- control, bucket (Straight) 3/8" - 24 NF threaded end (Used with swing down seat)
1шт.
23
D49993
HANDLE
LEVER - control, bucket (Straight) 1/2" - 20 NF threaded end (Used with swing down seat)
1шт.
24
D48247
LEVER
- control L.H. stabilizer (3/8" - 24 NF threaded end)
1шт.
24
D49983
HANDLE
LEVER - control L.H. stabilizer (1/2" - 20 NF threaded end)
1шт.
25
195-2097
WASHER,15/16" x 1 3/4" x .083"
- flat, steel (15/16")
1шт.
26
70213
KNOB
- control lever (Used with 3/8" - 24 NF threaded levers)
5шт.
26
D49996
KNOB
- control lever (Used with 1/2" - 20 NF threaded levers)
5шт.
27
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
6шт.
28
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Mounting 3/8" x 1.060"
6шт.
29
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - connecting rod
6шт.
30
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex., lock (3/8" - 24 NF)
6шт.
31
D30821
ROD
- straight, connecting (R.H. and L.H. stabilizer, boom, bucket and swing control)
5шт.
32
D38314
ROD
- bent (Dipper control)
1шт.
33
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
6шт.
34
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke mounting 5/16" x .940"
6шт.
35
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
3шт.
36
D21762
ROD
- "L" bend, connecting (R.H. swing control)
1шт.
37
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Mounting 3/8" x 1.060"
1шт.
38
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - connecting rod
1шт.
39
D37600
YOKE
- connecting rod
1шт.
40
D30819
ROD
- "L" bend, connecting (L.H. swing control)
1шт.
41
219-15
LUBE NIPPLE,5/16" NPTF
FITTING - grease, straight (5/16" drive type) Used with 3/8" - 24 NF threaded levers
6шт.
41
219-103
FITTING
- grease, straight (1/8" NPT) Used with 1/2" - 20 NF threaded levers
6шт.
Выбрано товаров: 54
