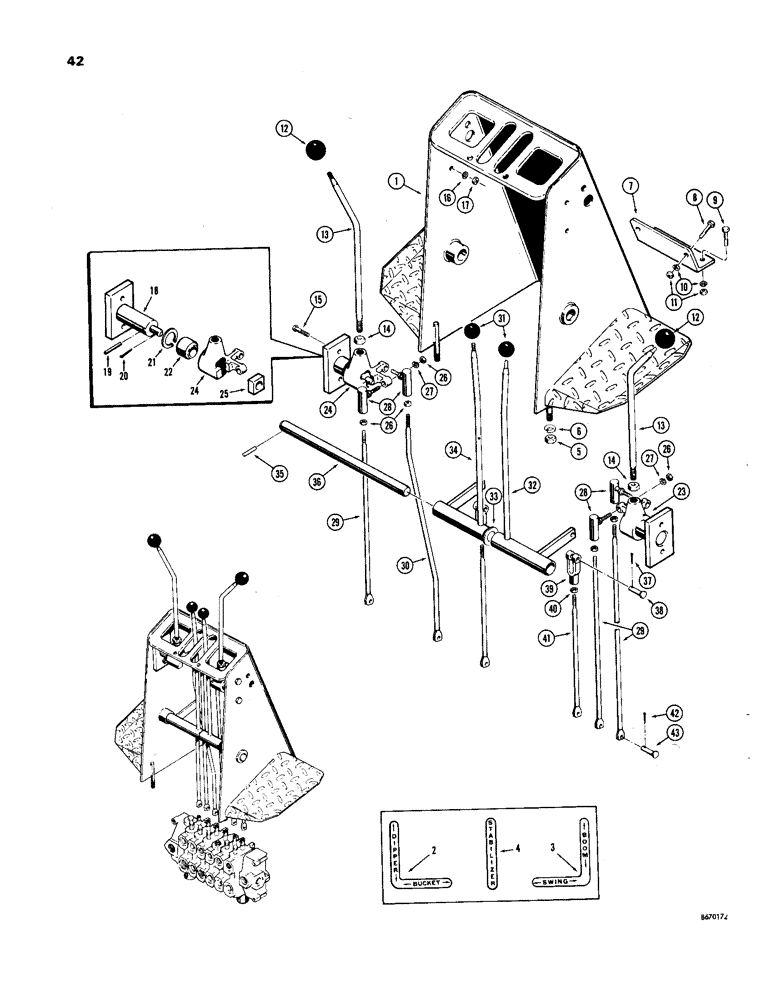

Запчасти Case 33 (042) - TWIN LEVER BACKHOE CONTROL

1

D38288

CONSOLE - backhoe control (See page 55 for backhoe seat arrangement)

1шт.

This console requires an extension when used on 450 Crawler. See Figure 53, Ref. 15 thru 18 for extension and mounting parts.

1шт.

2

321-917

DECAL

- dipper and bucket

1шт.

3

321-918

DECAL

- boom and swing

1шт.

4

321-919

DECAL

- stabilizer

1шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

6

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

7

D38292

COVER PLATE

BRACKET - console mounting

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

HHCS - 3/8" - 16 NC x 1-3/4"

2шт.

10

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

12

CAS31375

KNOB

- control lever, large

2шт.

13

D38304

HANDLE

LEVER - control, outer (R.H. boom and swing, L.H. dipper and bucket)

2шт.

14

25-1110

NUT,5/8"-18, G5

- hex., (5/8" - 18 NF)

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

18

D38299

SUPPORT

STUD - lever pivot

2шт.

19

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

20

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

21

D1038223

SPRING

Ring, Snap, 1.438", Int, #143

2шт.

22

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- pivotal ball type

2шт.

23

D38303

ADAPTER

LEVER - pivotal, R.H.

1шт.

24

D38302

ADAPTER

LEVER - pivotal, R.H.

1шт.

25

D38305

BLOCK

WEAR BLOCK - lever

2шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

8шт.

27

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

28

D38296

JOINT

- ball type

4шт.

29

D38295

ROD

- straight, connecting (Boom, bucket and swing control- 310G crawlers only)

3шт.

29

D45883

ROD - straight connecting (Boom and swing control - 450 crawler only)

2шт.

29a

D45885

ROD - bent, connecting (Bucket control - 450 Crawler only) Not shown

1шт.

30

D38294

ROD

- bent, connecting (Dipper control - 310G Crawlers)

1шт.

30

D45884

ROD - bent, connecting (Dipper control - 450 Crawler)

1шт.

31

D49996

KNOB

- control lever, small

2шт.

32

D49990

HANDLE

LEVER - control, R.H. stabilizer

1шт.

33

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, steel (15/16")

1шт.

34

D49991

HANDLE

LEVER - control, L.H. stabilizer

1шт.

35

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

36

D30817

SHAFT

- lever pivot

1шт.

37

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

38

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

2шт.

39

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

2шт.

40

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

2шт.

41

D38291

ROD - straight, connecting (Stabilizer control - 310G Crawler)

2шт.

41

D45882

ROD

- straight, connecting (Stabilizer control - 450 Crawler)

2шт.

42

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

43

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Connecting rod mounting 5/16" x .940"

6шт.
