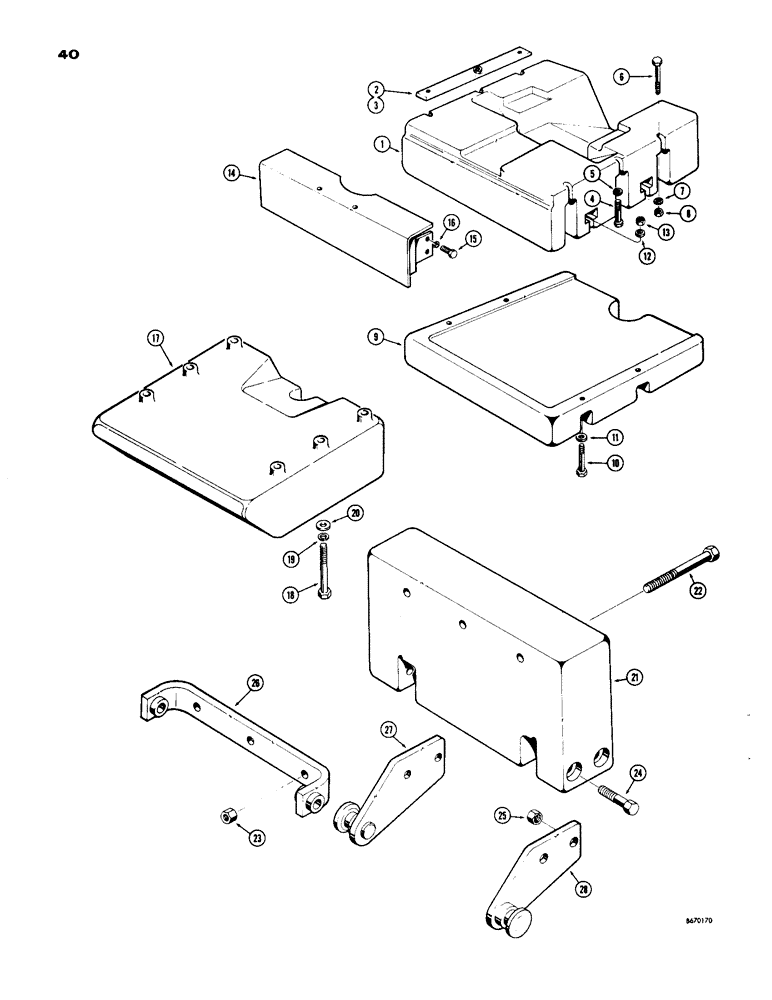

Запчасти Case 33 (040) - COUNTERWEIGHTS, FRONT MOUNTED COUNTERWEIGHT, (MODEL 310G CRAWLER ONLY)

1

D26394

COUNTERWEIGHT - front, upper (780 lbs.)

1шт.

2

D31614

reinforcing, R.H.

1шт.

3

D31613

reinforcing, L.H.

1шт.

4

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

2шт.

5

D26752

WASHER

special

2шт.

6

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

7

D26752

WASHER

special

4шт.

8

131-354

LOCK NUT,1/2"-13, GA

hex., lock (1/2" - 13 NC)

4шт.

9

D26405

WEIGHT

COUNTER - front, lower (386 lbs.)

1шт.

10

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

11

95-8

WASHER,1/2"

standard wrot 1/2"

4шт.

12

D26752

WASHER

special

4шт.

13

131-354

LOCK NUT,1/2"-13, GA

hex., lock (1/2" - 13 NC)

4шт.

14

D26239

BUMPER - front (Backhoe Models only)

1шт.

15

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

16

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

17

D40114

WEIGHT

front, 1000 lbs. (Dozer Models only), front mounted (model 450 crawler only)

1шт.

D34625

WEIGHT

COUNTERT - front, 1000 lbs. (Loader Models only), front mounted (model 450 crawler only)

1шт.

18

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" -11 NC x 6" (D40114 mounting), front mounted counterweight (model 450 crawler only)

6шт.

13-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

HHCS - 5/8" - 11 NC x 7-1/2" (D34625 mounting), front mounted counterweight (model 450 crawler only)

6шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Front mounted counterweight (model 450 crawler only) 5/8"

6шт.

20

195-41

WASHER,5/8"

Front mounted counterweight (Model 450 crawler only) 5/8"

6шт.

21

D31204

BALANCER

COUNTERWEIGHT - rear (1400 lbs.), rear mounted counterweight (model 310g & 450 crawlers)

1шт.

22

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

Rear mounted counterweight (Model 310G & 450 crawlers) Hex, 1"-8 x 10 1/2", G5

2шт.

23

230-41116

NUT,1"-8, GA

hex., lock (1" - 8 NC), rear mounted counterweight (model 310g & 450 crawlers)

2шт.

24

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

Rear mounted counterweight (Model 310G & 450 crawlers) Hex, 1"-8 x 6 1/2", G5

4шт.

25

230-41116

NUT,1"-8, GA

hex, lock (1" - 8 NC), rear mounted counterweight (model 310g & 450 crawlers)

4шт.

26

D37534

counterweight mounting, upper, rear mounted t (model 310g & 450 crawlers)

1шт.

27

D37134

ARM

sUPPORT - lower, at counterweight (R.H.), rear mounted (model 310g & 450 crawlers)

1шт.

28

D37135

ARM

SUPPORT - lower, at counterweight (L.H.), rear mounted (model 310g & 450 crawlers)

1шт.
