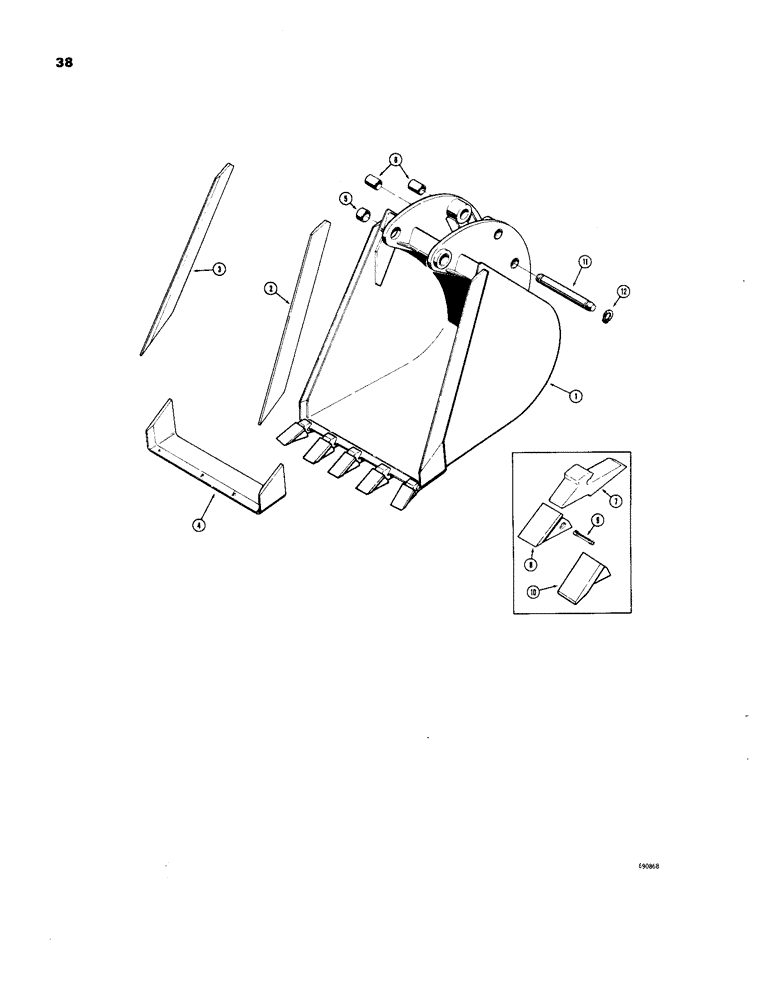

Запчасти Case 33 (038) - BACKHOE BUCKETS (OPTIONAL TYPES), TRENCHING BUCKETS - HEAVY DUTY (MACHINERY ITEM)

1

D45135

BUCKET - backhoe, trenching (24 inch), Includes: Ref. 2 - 6

1шт.

2

D45137

EDGE

BLADE - cutting, R.H. side

1шт.

3

D45136

EDGE

BLADE - cutting, L.H. side

1шт.

4

D45142

EDGE

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper arm

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

bucket, at bucket link

4шт.

1

D45263

BUCKET - backhoe, trenching (30 inch), Includes: Ref. 2 - 6

1шт.

2

D45137

EDGE

BLADE - cutting, R.H. side

1шт.

3

D45136

EDGE

BLADE - cutting, L. H. side

1шт.

4

D45258

EDGE

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper arm

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

bucket, at bucket link

4шт.

1

D49240

BUCKET - backhoe, trenching (36 inch), Includes: Ref. 2 - 6

1шт.

2

D45137

EDGE

BLADE - cutting, R.H. side

1шт.

3

D45136

EDGE

BLADE - cutting, L.H. side

1шт.

4

D49238

EDGE

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper arm

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

bucket, at bucket links

4шт.

D48035

TOOTH

ASSEMBLY - heavy duty, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth assy

1шт.

8

D39093

TOOTH

POINT - assy, tooth

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point, assy, tooth

1шт.

10

D44193

TOOTH

POINT - assy, tooth

1шт.

D41679

KIT

pin, bucket (Machinery item), D41679, Includes: Ref. 11 and 12

1шт.

11

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

bucket link to bucket, D41679 kit

1шт.

12

D25279

SNAP RING,M35, Int

RING - snap, D41679 pin kit

2шт.
