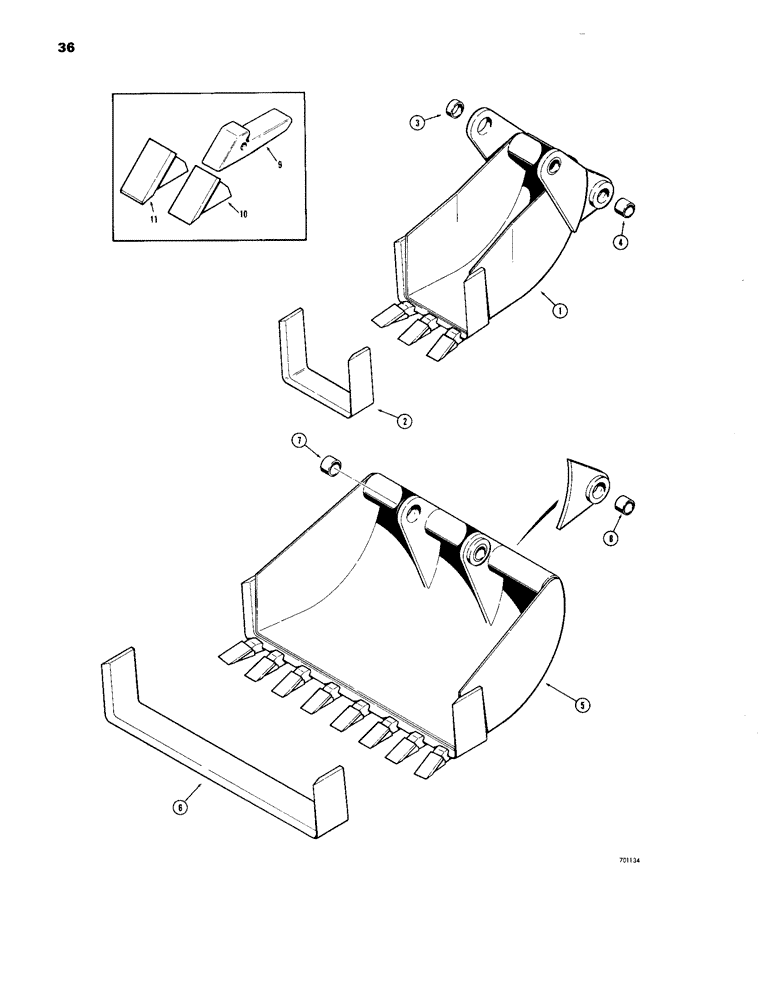

Запчасти Case 33 (036) - BACKHOE BUCKETS (OPTIONAL TYPES), BELLHOLE BUCKETS (MACHINERY ITEM)

1

D41547

BUCKET

backhoe, bellhole (12 inch), Includes: Ref. 2 - 4

1шт.

2

D37490

KNIFE

BLADE - cutting

1шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

bucket, at dipper arm

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, bucket link pin hole

2шт.

1

D41548

BUCKET

backhoe, bellhole (16 inch), Includes: Ref. 2 - 4

1шт.

2

D37518

EDGE, CUTTING

BLADE - cutting

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper arm

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, bucket link pin hole

2шт.

1

D41549

BUCKET

backhoe, bellhole (30 inch), Includes: Ref. 2 - 4

1шт.

2

D37515

EDGE

BLADE - cutting

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper arm

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, bucket link pin hole

2шт.

5

D41550

BUCKET

backhoe, combination bellhole and graveyard (36 inch), Includes: Ref. 6 - 8

1шт.

6

NLS

NO LONGER SERVICED

BLADE - cutting, combination bellhole and graveyard (36 inch)

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper arm, combination bellhole and graveyard (36 inch)

2шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, bucket link pin hole, combination bellhole and graveyard (36 inch)

2шт.

9

D26368

SUPPORT

SHANK - tooth, combination bellhole and graveyard (36 inch)

1шт.

10

D27748

TOOTH

POINT - (Standard), combination bellhole and graveyard (36 inch)

1шт.

11

D36720

TOOTH

POINT - service option (Heavy duty), combination bellhole and graveyard (36 inch)

1шт.
