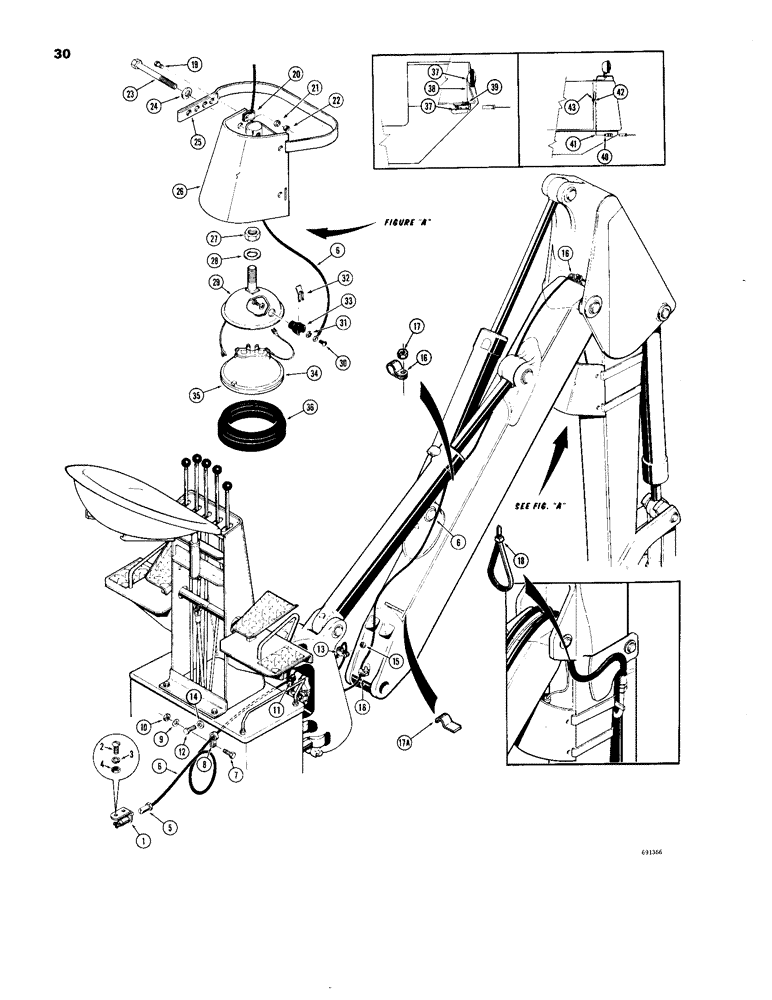

Запчасти Case 33 (030) - DIPPER LIGHT

1

D38499

SOCKET

quick disconnect, female

1шт.

2

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

RHMS - #10 - 24 N x 3/4"

2шт.

3

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

129-7

NUT,Hex, #10 - 24

hex. (#10 - 24 NC)

2шт.

5

D31547

PLUG - quick disconnect, male

1шт.

6

D37808

console to dipper light (216" long)

1шт.

7

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

8

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

wire, at mounting frame

1шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

standard wrot (5/16")

1шт.

10

131-4

LOCK NUT,5/16"-18, GB

hex., lock (5/16" - 18 NC)

1шт.

11

D37810

GROMMET - at swing tower

1шт.

12

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

13

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

wire, at swing tower

1шт.

14

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

15

131-4

LOCK NUT,5/16"-18, GB

hex., lock (5/16" - 18 NC)

1шт.

16

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

wire, at boom

3-5шт.

17

131-4

LOCK NUT,5/16"-18, GB

hex., lock (5/16" - 18 NC)

3шт.

17a

D48071

CLAMP

wire (Late production only)

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CLAMP - wire (Used with extendable dipper only)

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

20

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

wire, at dipper

1шт.

21

195-25

WASHER,3/8"

plain () 3/8"

1шт.

22

131-6

LOCK NUT,3/8"-16, GC

hex., lock (3/8" - 16 NC)

1шт.

23

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

2шт.

24

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

25

D41171

BAND

STRAP - light mounting

2шт.

26

D41427

SHIELD

dipper lamp

1шт.

27

131-354

LOCK NUT,1/2"-13, GA

hex., lock (1/2" - 13 NC)

1шт.

28

195-33

WASHER,1/2"

plain () 1/2"

1шт.

D37811

LAMP

ASSEMBLY - dipper arm, Includes: Ref. 29 - 36

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

30

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

machine (#8 - 32 NC x 1/4")

2шт.

31

193-5

LOCK WASHER,Ext Tooth, #8

lock, #8 (External Shakeproof)

2шт.

32

10927

SPRING

lamp

1шт.

33

B50293

TERMINAL CONNECTOR

lamp

1шт.

34

A25262

ELECTRICAL WIRE

lamp

1шт.

35

D33182

LAMP

BULB - seal beam

1шт.

36

D31441

RETAINER

lamp

1шт.

37

D38495

TERMINAL - spade type, at female socket and tail lamp, used on 310G crawlers only

2шт.

38

D38498

female socket to tail lamp, used on 310G crawlers only

1шт.

39

NLS

NO LONGER SERVICED

wire, used on 310g crawlers only

1шт.

40

D38495

TERMINAL - spade type, at female socket, used on 450 crawlers only

1шт.

41

D38498

female socket to wire connector, used on 450 crawlers only

1шт.

42

32395

SEAL ASSY.

TERMINAL - bullet type, at connector, used on 450 crawlers only

2шт.

43

D23602

CONNECTOR - wire, female, used on 450 crawlers only

1шт.
