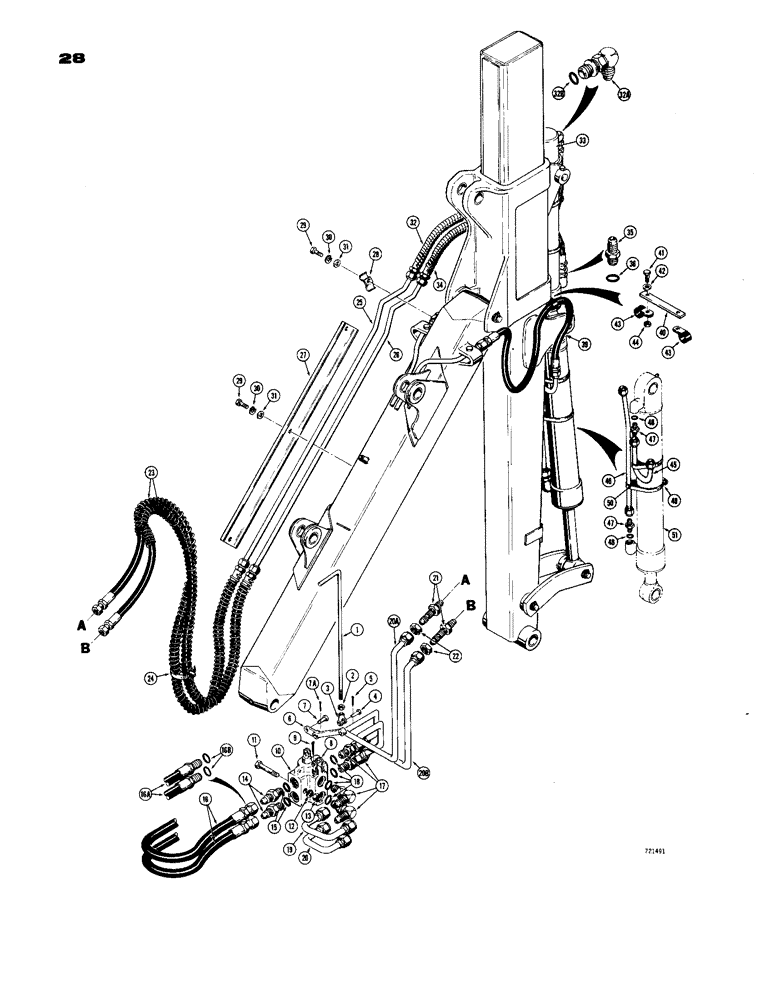

Запчасти Case 33 (028) - HYDRAULIC EXTENDABLE DIPPER, TWO FOOT EXTENSION, HYDRAULICS

1

D47939

CONTROL ROD - diversion valve

1шт.

2

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, hex. (3/8" - 24 NF)

1шт.

3

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis

1шт.

4

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

5

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

6

D47938

LEVER

- diversion valve

1шт.

7

D23693

AXLE PIN

PIN - clevis

1шт.

7a

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

8

D23696

DRAG LINK

LINK - diversion valve

1шт.

9

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.

10

D45399

LOCK VALVE

VALVE - div. (parts list Figure 92) Includes items 7 thru 9

1шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

2шт.

12

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

14

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male (Used with D47966 hose assy. only), Includes: Ref. 15

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

16

D47966

HOSE - diversion valve to stabilizer cylinder (27" long) Used with 218-5070 connector only

2шт.

16a

D49612

HOSE

- diversion valve to stabilizer cylinder (28" long) Threads directly into diversion valve, Includes: Ref. 16B

2шт.

16b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

17

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 18

4шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

19

D47867

TUBE - diverter valve to backhoe valve

1шт.

20

D47869

TUBE - diverter valve to backhoe valve

1шт.

20a

D47968

TUBE - diverter valve to extension cylinder, upper

1шт.

20b

D47970

TUBE - diverter valve to extension cylinder, lower

1шт.

21

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - bulkhead

2шт.

22

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, , Special Blkhd, 3/4"-16

2шт.

23

D47972

HOSE - to extension cylinder (75" long)

2шт.

24

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

25

D45052

TUBE - upper, at boom

1шт.

26

D45059

TUBE

- lower, at boom

1шт.

27

D45053

GUARD - tube

1шт.

28

D42504

CLAMP

- tube

1шт.

29

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

95-6

WASHER,3/8"

- standard wrot 3/8"

4шт.

32

D45050

HOSE - to extension cylinder, closed end (45" long)

1шт.

32a

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 32B

1шт.

32b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

REF

INSTRUCTION

CYLINDER - hydraulic, extension (See Figures 136 and 138 for proper cylinder)

1шт.

34

D45049

HOSE

- to extension cylinder, rod end (39" long)

1шт.

35

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 36 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

D46954

HOSE - to bucket cylinder (64" long)

2шт.

40

D39124

BAR - hose spacing

1шт.

41

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

42

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

43

R21385

CLAMP

- hose

2шт.

44

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

2шт.

45

D40655

TUBE

- bucket cylinder, closed end

1шт.

46

D40647

TUBE

- bucket cylinder, rod end

1шт.

47

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 48

2шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

49

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - cylinder tube

2шт.

50

D38648

BLOCK

SADDLE - rubber

2шт.

51

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (See Figures 128 thru 134 for proper cylinder)

1шт.
