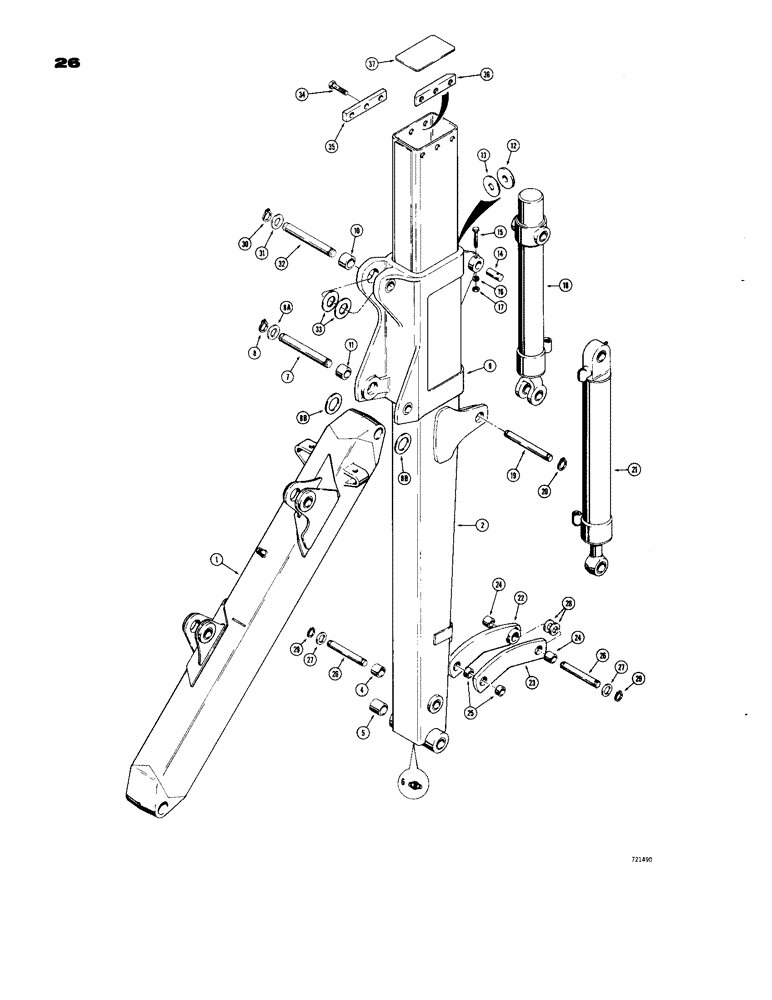

Запчасти Case 33 (026) - HYDRAULIC EXTENDABLE DIPPER, TWO FOOT EXTENSION, MECHANICAL PARTS

1

REF

INSTRUCTION

BOOM - backhoe (See Figure 18 for proper boom)

1шт.

2

D44486

DIPPER ARM ASSEMBLY - extension, Includes: Ref. 4 and 5

1шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- dipper arm, at bucket link

2шт.

5

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper arm, at bucket

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease (1/8" NPT)

1шт.

7

D37609

PIN

- boom to dipper arm

1шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

8a

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel (2-1/16")

2шт.

8b

72990

WASHER

- special, 1/16" thick

1шт.

9

D44485

TOOL KIT

COLLAR ASSEMBLY - dipper extension, Includes: Ref. 10 and 11

1шт.

10

D38479

BUSHING

- at crowd cylinder

2шт.

11

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at boom

2шт.

12

D47840

PLATE - wear

4шт.

13

D47841

SHIM - collar (.035" thick)

4шт.

14

D44461

PIN - extension cylinder mounting

2шт.

15

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16" - 18 NC x 3"

2шт.

16

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

18

REF

INSTRUCTION

CYLINDER - dipper, extension (See Figures 136 and 138 for proper cylinder)

1шт.

19

D44460

PIN - bucket, Serial Range: cylinder-dipper

1шт.

20

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

21

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (See Figures 128 thru 134 for proper cylinder)

1шт.

22

REF

INSTRUCTION

LINK - bucket cylinder to dipper arm (L.H.), Includes: Ref. 24 and 25

1шт.

23

D37445

LINK

- bucket cylinder to dipper arm (R.H.), Includes: Ref. 24 and 25

1шт.

24

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at bucket cylinder (D37444 and D37445 link)

1шт.

25

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- at bucket cylinder (D37444 and D37445 link)

1шт.

26

D39256

AXLE PIN,38.1mm OD x 238.13mm L

PIN - linkage mounting

2шт.

27

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

4шт.

28

195-63

WASHER,1 5/8" x 3 1/4" x .180"

- plain (1-9/16")

2шт.

29

D25279

SNAP RING,M35, Int

RING - snap

4шт.

30

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

31

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel (2-1/16")

2шт.

32

D38481

PIN

- dipper, Serial Range: cylinder-dipper

1шт.

33

T28060

WASHER

- spacer

2шт.

34

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

HHCS - 3/4" - 10 NC x 2-1/2" (Grade 8)

6шт.

35

D52779

BLOCK - stop

2шт.

36

D52780

BLOCK - tapped, Serial Range: (Welded-dipper)

2шт.

37

D44470

PLATE - end, dipper

1шт.
