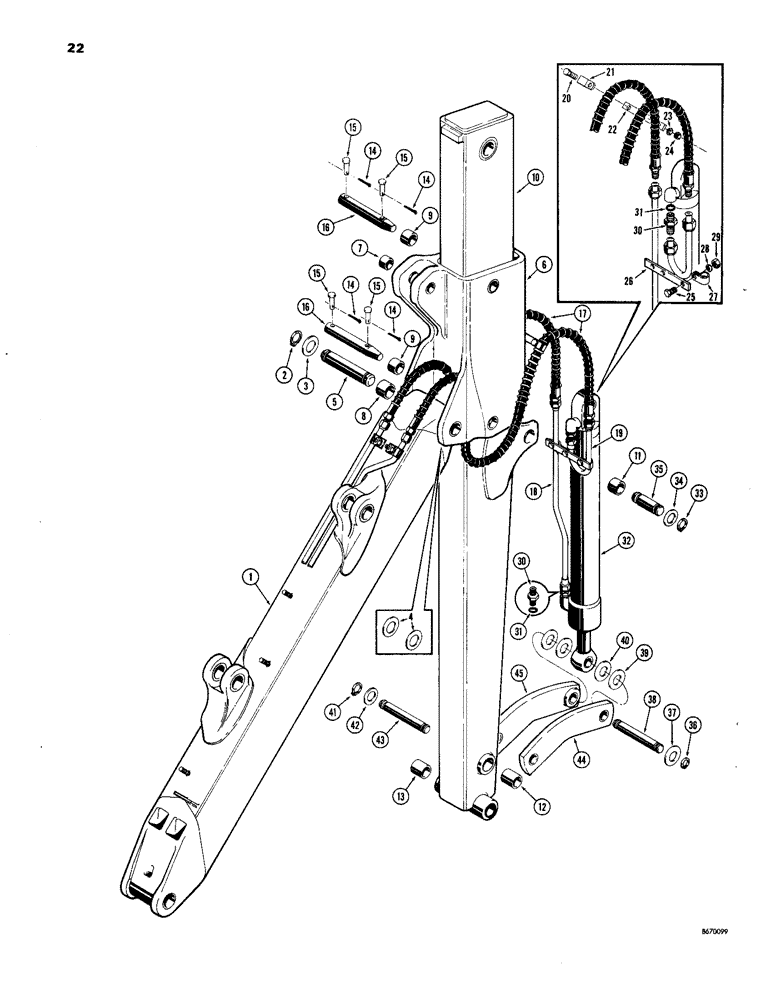

Запчасти Case 33 (022) - EXTENDABLE DIPPER, (USED BEFORE BACKHOE SERIAL NO. 4141636)

1

REF

INSTRUCTION

BOOM - backhoe (See Figures 14 and 18 for proper boom)

1шт.

2

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

3

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel (2-1/16")

2шт.

4

D37449

SHIM,.0747" Thk

- 1/16" thick

1шт.

5

D37609

PIN

- boom to dipper arm

1шт.

D38904

COLLAR ASSEMBLY - dipper extension, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

COLLAR - dipper extension

1шт.

7

D38479

BUSHING

- collar, at crowd cylinder

2шт.

8

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- collar, at boom

2шт.

9

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- collar, positioning pin

4шт.

D38906

DIPPER ARM ASSEMBLY - extension, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

DIPPER ARM - extension

1шт.

11

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- dipper arm, at bucket cylinder

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- dipper arm, at bucket link

2шт.

13

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper arm, at bucket

2шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

15

A10123

PIN - clevis

4шт.

16

D38902

PIN - dipper extension positioning

2шт.

17

D43138

SLEEVE

HOSE - to bucket cylinder (54" long)

2шт.

18

D39127

TUBE - to bucket cylinder, rod end

1шт.

19

D39125

TUBE - to bucket cylinder, closed end

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

D39138

CLAMP

- hose

2шт.

22

D39124

SPACER BAR - hose

1шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

24

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

26

D39126

SPACER BAR - tube

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

3шт.

28

195-21

WASHER,5/16"

- plain () 5/16"

3шт.

29

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

3шт.

30

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - straight male (3/4" JIC x 5/8" JIC), Includes: Ref. 31

2шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (see Figures 128 thru 134 for proper cylinder)

1шт.

33

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

34

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, steel (1-13/16")

2шт.

35

195-38907

PIN - bucket cylinder to dipper arm

1шт.

36

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

37

D39261

WASHER

- special, 5/16" thick

2шт.

38

D39256

AXLE PIN,38.1mm OD x 238.13mm L

PIN - bucket cylinder to bucket linkage

1шт.

39

D39261

WASHER

SPACER - link (Used with D37452 links only) See Figure 16 ref. no. 59

1шт.

40

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special, 1/8" thick

2шт.

41

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

42

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special, 1/8" thick

2шт.

43

D39256

AXLE PIN,38.1mm OD x 238.13mm L

PIN - bucket linkage to dipper arm

1шт.

44

D37445

LINK

- bucket cylinder to dipper arm, R.H. (See Figure 16 for bushings)

1шт.

45

D37444

LINK

- bucket cylinder to dipper arm, L.H. (See Figure 16 for bushings)

1шт.
