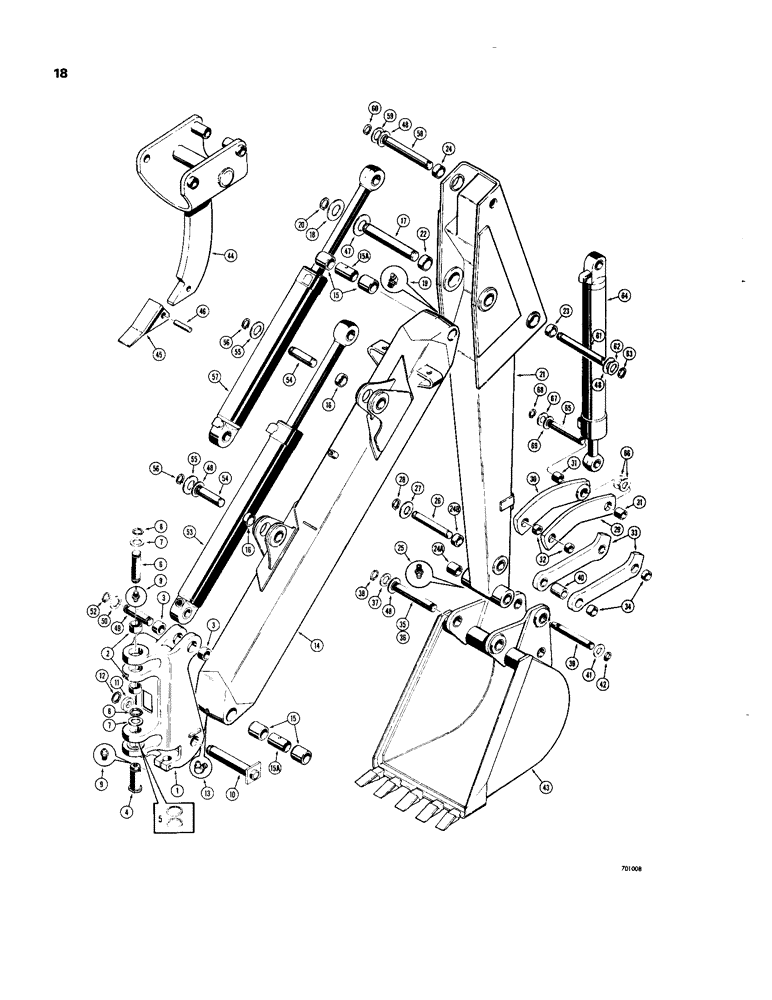

Запчасти Case 33 (018) - TOWER, BOOM, DIPPER ARM AND BUCKET, BOOM AND DIPPER ARM W/FABRICATED CLY ANCHORS

1

D45031

TOWER - backhoe swing, Includes: Ref. 2 and 3

1шт.

2

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- tower at mounting frame

2шт.

3

D38478

BUSHING

- tower at boom cylinder

2шт.

4

D44733

PIN

- mounting frame to swing tower, lower

1шт.

5

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Tower .035" Thk

1шт.

6

D33637

PIN

- mounting frame to swing tower, upper

1шт.

7

195-2155

WASHER,2 1/16" x 3" x .109"

- flat (2-1/16")

3шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

10

D44888

PIN

- boom to swing tower

1шт.

11

D49182

WASHER

- special

1шт.

12

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

14

D44956

BOOM - backhoe (Used before backhoe Sn. 4176351 on all models except those featuring hydraulic extendable dippers) When stock is exhausted, order D50776 and D52755 tubes, parts list Figure 72 and D50775 boom for service, Includes: Ref. 15 - 16

1шт.

14

D50775

BOOM

- backhoe (Used with all hydraulic extendable dippers and on backhoe Sn. 4176351 and after as production item; prior to 4176351 with D50776 and D52755 tubes as service replacement (When stock is exhausted, order D55016 as service replacement), Includ

1шт.

14

D55016

LINKAGE

BOOM - backhoe, Includes: Ref. 15 - 16

1шт.

15

D44648

BUSHING

- upper and lower

4шт.

15a

D37416

BUSHING

SPACER - bushing, at boom castings

2шт.

16

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- cylinder mountings

4шт.

17

D45034

PIN

- boom to dipper arm

1шт.

18

195-2155

WASHER,2 1/16" x 3" x .109"

- flat (2-1/16")

2шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

20

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

21

D43956

BALANCER

DIPPER ARM - backhoe, Includes: Ref. 22 - 24B

1шт.

22

D43946

BUSHING,51.02mm ID x 63.5mm OD x 35.6mm L

- dipper, at boom

2шт.

23

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- dipper, at bucket cylinder

2шт.

24

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- dipper, at crowd cylinder

2шт.

24a

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper at bucket

2шт.

24b

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- dipper at bucket links

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

26

D37612

PIN,38.1mm OD x 222.25mm L

- bucket linkage to dipper arm

1шт.

27

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

2шт.

28

D25279

SNAP RING,M35, Int

RING - snap

2шт.

29

D37445

LINK

- bucket cylinder to dipper arm (R.H.)

1шт.

30

D37444

LINK

- bucket cylinder to dipper arm (L.H.), Includes: Ref. 31 and 32

1шт.

31

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket cylinder

1шт.

32

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link, at dipper arm

1шт.

33

D37452

LINK

- bucket cylinder to bucket, Includes: Ref. 34

2шт.

34

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link

2шт.

35

D37613

PIN

- bucket to dipper arm

1шт.

36

D40244

PIN,44.45mm OD x 327.02mm L

- bucket to dipper arm (D37472 and D41547 bucket only)

1шт.

37

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat (1-3/4")

2шт.

38

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

39

D37614

PIN,38mm Od x 246mm L

- link to bucket (used on all buckets except heavy duty)

1шт.

39

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

PIN - link to bucket (Heavy duty bucket only)

1шт.

39

D37793

PIN

- link to frost point (Frost Point only)

1шт.

40

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER - link

1шт.

41

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- flat (1-3/64")

2шт.

42

D25279

SNAP RING,M35, Int

RING - snap

2шт.

43

REF

INSTRUCTION

BUCKET - backhoe (See Figures 32 thru 38 for options)

1шт.

D42577

SPARE PART

FROST POINT ASSEMBLY - backhoe, Includes: Ref. 44 - 46

1шт.

44

NSS

NOT SOLD SEPARAT

BODY - frost point

1шт.

45

D43416

POINT

- tooth

1шт.

46

D43417

PIN

FLEX PIN - point

1шт.

47

R10830

WASHER

- special (1/16" thick)

1шт.

48

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - special (1/16" thick)

1шт.

49

D38480

PIN

- boom cylinder mounting at swing tower

1шт.

50

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- flat (1-13/16")

2шт.

52

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

53

D25280

SNAP RING,#175, Ext

CYLINDER - hydraulic, boom (See Figures 112 thru 120 for proper cylinder)

1шт.

54

D45047

PIN

- boom and crowd, Serial Range: cylinder-boom

2шт.

55

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- flat (1-13/16")

4шт.

56

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

57

REF

INSTRUCTION

CYLINDER - hydraulic, crowd (See pages 123 thru 127 for proper cylinder)

1шт.

58

D43959

PIN

- crowd cylinder to dipper arm

1шт.

59

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- flat (1-13/16")

4шт.

60

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

61

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - bucket cylinder to dipper arm

1шт.

62

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat (1-3/4")

2шт.

63

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

64

REF

INSTRUCTION

CYLINDER - hydraulic, bucket ( See Figures 128 thru 134 for proper cylinder)

1шт.

65

D37612

PIN,38.1mm OD x 222.25mm L

- bucket, Serial Range: cylinder-linkage

1шт.

66

195-63

WASHER,1 5/8" x 3 1/4" x .180"

SPACER - bucket cylinder

2шт.

67

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

2шт.

68

D25279

SNAP RING,M35, Int

RING - snap

2шт.

69

D31312

WASHER

- special (1/16" thick)

1шт.
