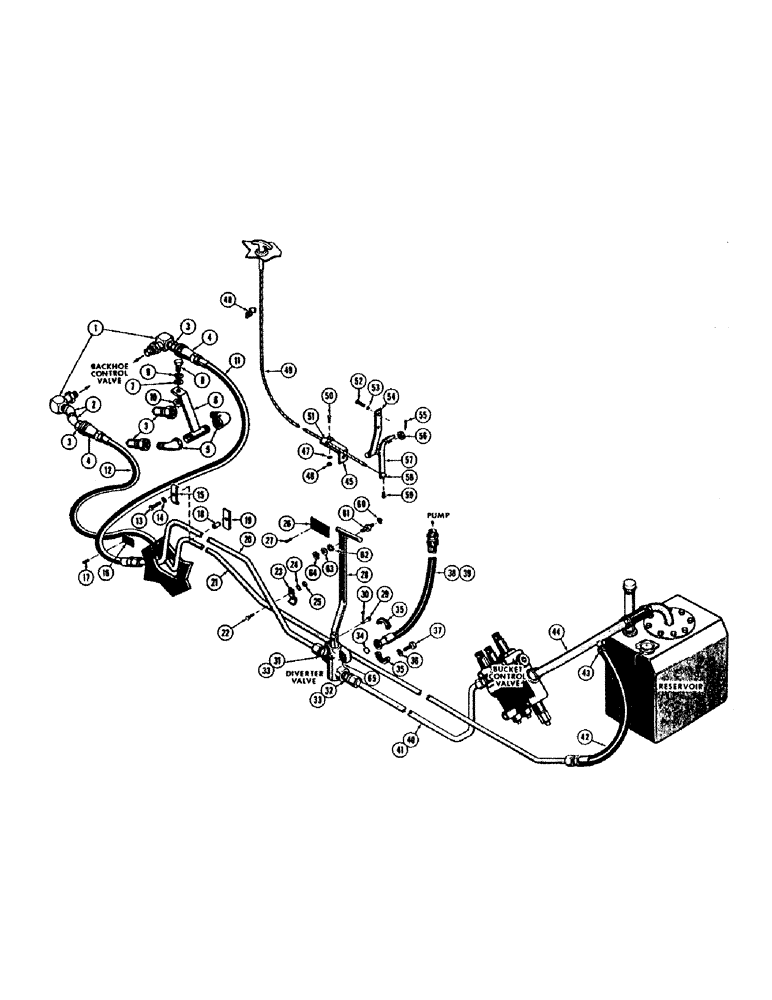

Запчасти Case 32 (16) - BASIC BACKHOE HYDRAULICS, W-7

1

A19176

X

ADAPTER - 90 degree elbow

2шт.

2

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 3/4" x 45 degrees

2шт.

3

A15884

COUPLING

- male breakaway, See Figure 16

4шт.

4

A15885

COUPLING

- female breakaway, See Figure 26

2шт.

5

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- 90 degree street

2шт.

6

A19306

COUPLING

COUPLER - backhoe hose

1шт.

7

A19306

COUPLING

WASHER - spacer

1шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

11

A19341

HOSE

- backhoe pressure

1шт.

12

A19342

HOSE

- backhoe return

1шт.

13

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

A14078

CLAMP

- hydraulic tube

1шт.

16

A19297

PLATE ASSY.

PLATE - backhoe instruction

2шт.

17

168-68

SCREW - drive, #6 x 3/8" (Zinc plated)

4шт.

18

A19177

SPACER

- tube clamp

1шт.

19

A19305

SPACER

- hydraulic tube

1шт.

20

A19540

TUBE

- diverter valve to backhoe valve (Pressure)

1шт.

21

A19539

TUBE - backhoe valve to reservoir (Return)

1шт.

22

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

23

A13680

CLAMP - tube

2шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

25-104

NUT,1/4"-20, G5

2шт.

26

A19296

PLATE - diverter valve control name

1шт.

27

168-68

SCREW - drive, #6 x 3/8" (Zinc plated)

2шт.

28

A19446

LEVER - diverter valve actuator

1шт.

29

05925AB

PIN - clevis, diverter valve actuator

1шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

31

A19173

X

ADAPTER - diverter valve to backhoe valve (Pressure) with A12319 seal

1шт.

32

A12309

X

ADAPTER - diverter valve to control valve with A12319 seal

1шт.

33

A12319

X

SEAL - "O" RING, HYDRAULIC (USE 218-5010)

2шт.

34

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring, hydraulic

1шт.

35

A12306

FLANGE

CLAMP - 4 bolt split flange

2шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

38

A19434

HOSE

- hydraulic pump to diverter valve with A12318 seal

1шт.

39

A12318

X

SEAL - "O" ring (A19434 hose at pump) (Use 218-5008)

1шт.

40

A19436

TUBE

- diverter valve to control valve (2 spool)

1шт.

41

A19437

TUBE - diverter valve to control valve (3 spool)

1шт.

42

A19442

HOSE ASSY.

HOSE - backhoe, Serial Range: valve-reservoir

1шт.

43

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube

1шт.

44

A19443

TUBE - backhoe return

1шт.

45

A19456

BRACKET - throttle cable

1шт.

46

25-104

NUT,1/4"-20, G5

1шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

04599AB

CLAMP - throttle control

1шт.

49

A19457

CABLE

- throttle control

1шт.

50

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

51

02825AB

CLIP - cable

1шт.

52

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

53

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

54

A19449

SUPPORT - hand throttle

1шт.

55

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

56

195-33

WASHER,1/2"

- plain, (Zinc plated) 1/2"

1шт.

57

A19452

LEVER - hand throttle

1шт.

58

07029AB

CLAMP - control wire

1шт.

59

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- round head machine (#8 - 32 NC X 1/4")

1шт.

60

92-8

LOCK WASHER,1/2"

1шт.

61

A19461

GUIDE - diverter valve actuator

1шт.

62

A19541

WASHER

- wave

1шт.

63

195-533

WASHER,1/2", SAE

(Zinc plated) 1/2", SAE

1шт.

64

09608AB

RING - retaining

1шт.

65

A19162

VALVE - diverter, See Figure 26 for breakdown

1шт.
